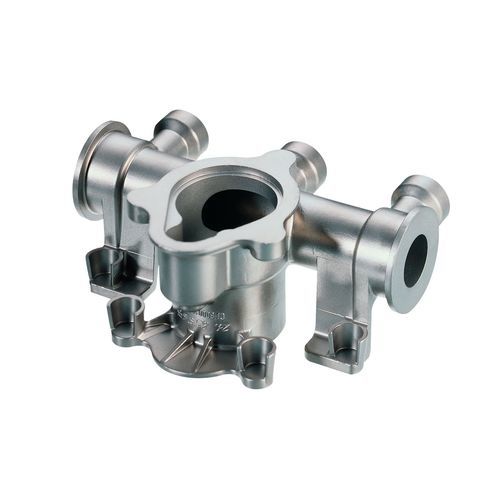

Steel casting

medium series

Open air investment casting Conventional method The conventional open investment casting - is a lost wax process that is characterised by an almost unlimited selection of alloys. Component weight up to 100 kg Manual pouring off of the casting cluster in an oxygenated environment The mould is filled manually via a ladle and is controlled by the casting speed Maximum installation space 600 x 600 x 550 mm Roll-over technology A very high material quality is achieved with roll-over technology. After melting the alloy, the furnace rotates 180 degrees in a few seconds. The mould shell that is flanged directly to the furnace is filled precisely and with low turbulence in the process, also while using inert gas. The influence of oxygen is eliminated by using an inert gas bell. The maximum installation space is 580 x 400 mm diameter Maximum casting weight of 100 kg
