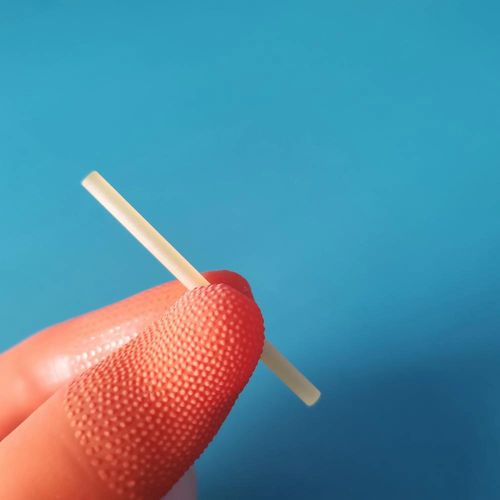

YAG crystal ZLY889

opticallaser

Ce:YAG is a fast scintillator with excellent mechanical and chemical resistance. Ce:YAG scintillation detectors are preferred for electron microscopy, beta and X-ray counting, as well as for electron and X-ray imaging screens. The material’s mechanical properties enable production of thin screens down to 0.005 mm thick. Does not degrade when bombarded by electrons or ions, thus making Ce:YAG suitable for high current operations. Light emission peaks at about 560nm (yellow) which means that an S20 photomultiplier is most suitable for detecting the emission. Response is better for Ce:YAG than for Planotec P47 discs below 5kV and again at higher accelerating voltages over 100kV, where the performance of powder scintillators falls off while Ce:YAG response increases linearly. Although the signal from Ce:YAG and Ce:YAP is less than the P47, the S/N ratio is better and therefore the final signal is better. Decay time approx. 60 nanoseconds. The side towards the light guide is micro-textured to increase light emission. Can be cleaned (polished) and recoated. Best to coat with 50nm Al to avoid light sensitivity. Zoolied is a leading Crystal Optics supplier. It's always the reliable choice for consumers. We can produce a variety of Crystal Optics such as Fast Scintillator Ce:YAG Laser crystals, CaF2 Crystals Calcium Fluoride IR Optics, Nd YAG laser crystals, Diffusion bouding crystals, Erbium Laser Glass and Ti:Sapphire Crystal.
