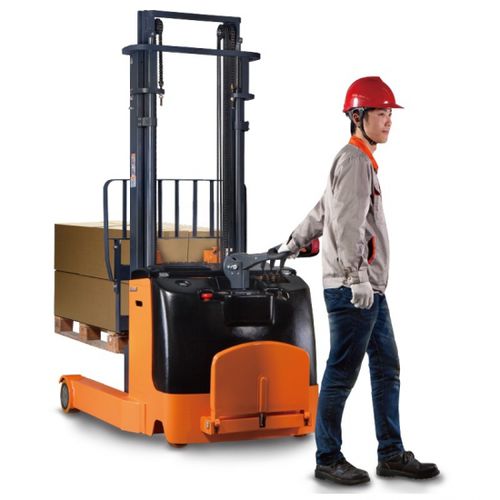

Electric stacker truck XR20stand-on24 Vtransport
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- stand-on
- Voltage
- 24 V
- Applications
- transport, for warehouse, for pallet, handling
- Carrying capacity
2,000 kg
(4,409.2 lb)- Lifting height
Min.: 1,600 mm
(62.99 in)Max.: 5,500 mm
(216.54 in)- Free lift
Min.: 83 mm
(3.3 in)Max.: 1,445 mm
(56.9 in)- Height of mast when lowered
Min.: 1,180 mm
(46.5 in)Max.: 2,406 mm
(94.7 in)- Height of mast when raised
Min.: 2,241 mm
(88.23 in)Max.: 6,441 mm
(253.58 in)- Overall width
1,090 mm
(42.9 in)- Overall length
2,475 mm
(97.4 in)- Fork width
Min.: 200 mm
(7.9 in)Max.: 730 mm
(28.7 in)- Fork length
1,405 mm
(55.31 in)- Turning circle radius
1,874 mm
(73.8 in)- Battery capacity
240 Ah, 280 Ah
- Motor power traction
1.1 kW, 1.5 kW
(1.496 hp, 2.039 hp)- Motor power lifting
2.2 kW, 3 kW
(2.991 hp, 4.079 hp)
Description
2 ton Electric Reach Stacker,Fork can extend 580mm. Fork can extend 580mm.
1. Reach function: Fork can extend 580mm
2. Fork can tilt forward / backward for safer load handling.
3. Germany Mannstaedt forklift profile for mast building.
4. SWISS BUCHER brand or ITALY HYDRAPP Hydraulic pump.
5. Regenerative braking function
6. CURTIS electronic controller
7. Germany Frei handle
8. Battery side extraction: The side gate and the battery cover are openable. Battery can be removed from the side, making it very convenient to replace and maintain batteries.
9. Emergency reversing device in the handle provides improved operating safety.
10. Emergency power disconnect switch.
11. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
12. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
