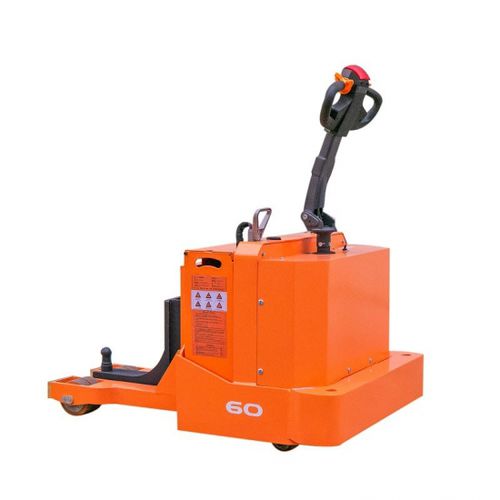

Towing tractor XTB30

electricwheel-mountedstand-on

1. SWISS BUCHER brand Hydraulic pump. 2. Regenerative braking function 3. CURTIS electronic controller 4. Germany Frei handle 5. Emergency reversing device in the handle provides improved operating safety. 6. Emergency power disconnect switch. 7. Braking applied with handle upright and horizontal position, increasing the safety of the truck. • 2 : Power supply : Electric • 3 : Operating type : Pedestrian/Standing on • 5 : Traction weight : F （N） : 750 • 6 : Wheelbase : Y （mm） : 1050 • weight : 1 : Weight (without battery) : kg : 485 • Wheel : 1 : Tyres : PU • 2 : Tyre size drive end : mm : Φ230×75 • 3 : Type size load end : mm : Φ150×60 • 4 : Balancing wheel size : mm : Φ100×50 • 5 : Wheels number (x=drive wheel) drive end/load end : 1x-2/4 • 6 : Tread width drive end : mm : 568 • 7 : Tread width load end : mm : 300 • Dimensions : 1 : Total height(Pedestrian/Standing on) : h1mm : 1410/1340 • 2 : Lift height : h3mm : 376 • 3 : Height of Drawing head : h5mm : 206 • 4 : Diameter of Drawing head : Dmm : 50 • 5 : Height of handle in drive position (Max/Min) : h6mm : 1410/1192 • 6 : Overall length（Pedestrian） : L1mm : 1331 • 7 : Overall width : b1mm : 850 • 8 : Minimum ground clearance : M mm : 70 • 9 : Turning radius : Wa mm : 1352 • Performance : 1 : Travel speed loaded/unloaded : km/h : 5.2/6 • 2 : Lift speed loaded/unloaded : mm/s : 28/40 • 3 : Lowering speed loaded/unloaded : mm/s : 45/40 • 4 : Max gradeability loaded/unloaded : % : 8/15 • 5 : Service brake : Electromagnetic
