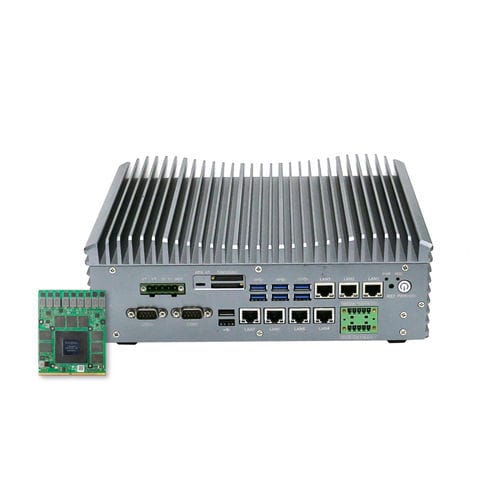

Medical computer EAC-CC02-C00

boxEdge AIGPU

Graphics Card - F73 RTX2060 F73 GTX16601Ï F73 GTX1660S F48 GTX1070m F47 GTX1060m FM71 GTX1050Tim (w/o HDMI output) FM71 GTX1050m (w/o HDMI output) F75 P2000(HDMI w/o Audio, 1920*1080@60Hz) F75 P1000(HDMI w/o Audio, 1920*1080@60Hz) Chipset - Integrated 10/100/1000M Adaption (Realtek 1211 -AT*3, I219M*1) Function - Support wake up and PXE Chipset - Integrated High Définition Audio Stereo (ALC662) Rear I/O - 1 x Line Out 1 x MIC In Front I/O - 1 x 8 bit GPIO(With Optical Coupler Isolation) - 1 x Power Button Button - - 1 x Reset Button Remote Power Switch - 1 x Phoenix Port (2P In) Power Supply - 1 x Phoenix Port (5P In) Adapter - 6V-48V, Max 20A (6~9V lower limit, hold on only 10 second 9~ 12V without independent graphie card 12~48V full function) Consumption - 250W Standby Power - under 0.5W Dimension (L*W*H) - 335*224*98mm Color - G ray Opération Temperature - -10°C - 50°C at 0.7m/s air flow Opération Humidity - 10%-90% (non-condensing) Storage Temperature - -40°C - 85°C Storage Humidity - 10%-90% (non-condensing) Random Operating - 0.5g rms/5~500Hz
