Inner diameter: 10 mm - 51 mm
Outer diameter: 20.2 mm - 57.4 mm
Pressure: 0 psi - 24,000 psi
EFG6K SPIRAL WIRE HOSE: 420 BAR Recommended for extremely high pressure and high impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications ...
Gates Europe
Inner diameter: 10 mm - 51 mm
Outer diameter: 20.2 mm - 71.1 mm
Pressure: 5,000 psi
EFG5K SPIRAL WIRE HOSE: 350 BAR Recommended for extremely high pressure and high impulse hydraulic applications. EFG5K is designed to meet or exceed all requirements of ISO 3862 R13 specifications and performance requirements ...
Gates Europe
Inner diameter: 10 mm - 31 mm
Outer diameter: 20.2 mm - 47 mm
Pressure: 4,000 psi
... Resistance Acceptance Designation MSHA 2G. EFG4K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R12. Most flexible EN 856 R12 / SAE 100R12 hose in the industry. 40% of EN 856 4SP bend radius at ...
Gates Europe
Inner diameter: 38, 31, 51 mm
Outer diameter: 53.6, 47, 66.8 mm
Pressure: 3,000 psi
EFG3K SPIRAL WIRE HOSE: 210 BAR Recommended for extremely high pressure and high impulse hydraulic applications. Exceeds all performance requirements for ISO 18752 Grade D, SAE 100R12, EN 856 R12, performance requirements ...
Gates Europe
Inner diameter: 6 mm
Outer diameter: 14.9 mm
Pressure: 420 bar
... MegaCrimp® is used in couplings. The advanced flex impulse performance has been tested to 600,000 impulse cycles. The M6K hose is compatible with biodegradable hydraulic fluids and petroleum-based fluids.
Gates Europe
Inner diameter: 12, 10, 6, 8 mm
Outer diameter: 21.9, 15.4, 13.7, 17.5 mm
Pressure: 5,000 psi
M5K WIRE BRAID HOSE: 350 BAR Recommended for high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade B. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® ...
Gates Europe
Inner diameter: 6 mm - 19 mm
Outer diameter: 13.7 mm - 29.1 mm
Pressure: 4,000 psi
M4K WIRE BRAID HOSE: 280 BAR Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade B, SAE 100R19 and ISO11237 R19. Recommended Couplings: ...
Gates Europe
Inner diameter: 5 mm - 25 mm
Outer diameter: 10.9 mm - 37.7 mm
Pressure: 225 bar

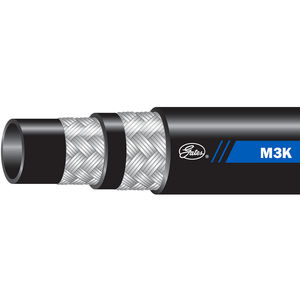

M3K WIRE BRAID HOSE: 225 BAR Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade B, SAE 100R17 and ISO11237 R17 working pressure, ...
Gates Europe
Inner diameter: 6 mm - 51 mm
Outer diameter: 15 mm - 67.3 mm
Pressure: 80 bar - 400 bar

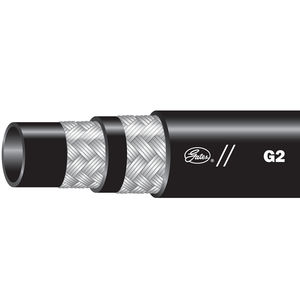

G2 WIRE BRAID HOSE: EN 853 2SN Recommended for high-pressure hydraulic oil line applications. Recommended Couplings: Field Attachable Type T Couplings (-4 through -24), GlobalSpiral™ Couplings, GlobalSpiral™ Plus Couplings, ...
Gates Europe
Inner diameter: 6 mm - 51 mm
Outer diameter: 13.5 mm - 64 mm
Pressure: 42 bar - 225 bar
G1 WIRE BRAID HOSE: EN 853 1SN Recommended for medium pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1 Type S and ISO 1436 1SN R1, as well as the performance requirements of EN 853 1SN. Recommended ...
Gates Europe
Inner diameter: 0.25 in - 0.375 in
Outer diameter: 0.5 in - 1.05 in
Temperature: -54 °C - 93 °C
TH7 Thermoplastic Hydraulic Hose - SAE 100R7 High pressure hydraulic applications, especially material handling equipment with mast and pulley systems like forklifts, aerial lifting, hydraulic boom cranes and many ...
