Gateway de comunicação DXM SERIES

industrialIoTEthernet

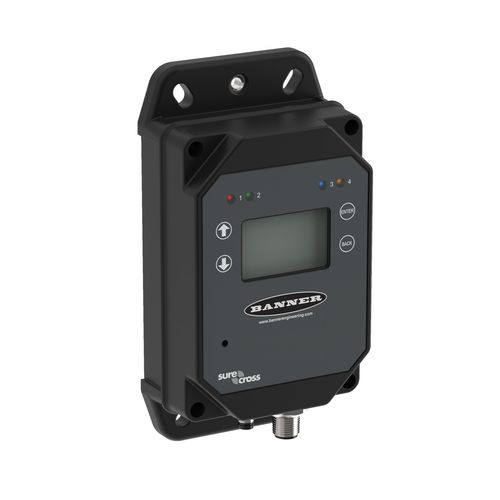

DXM Series industrial wireless controllers are designed to facilitate Ethernet connectivity and Industrial Internet of Things (IIoT) applications. Available with an internal DX80 Gateway or a MultiHop Data Radio, these powerful Modbus communications devices connect local wireless networks with the internet and/or host systems. • ISM radios available in 900 MHz and 2.4 GHz for local wireless network • Converts Modbus RTU to Modbus TCP/IP or Ethernet I/P • Logic controller can be programmed using action rules and text language methods • Micro SD card for data logging • Email and text alerts • Local I/O options: isolated discrete inputs, universal inputs, SPDT (Form C) relay outputs, NMOS outputs, and analog outputs • Powered by 12 to 30 V dc, 12 V dc solar panel, or battery backup • RS-232, RS-485, and Ethernet communications ports; and a USB configuration port • LCD display for I/O information and user programmable LED’s • Cell modem for cellular connectivity
