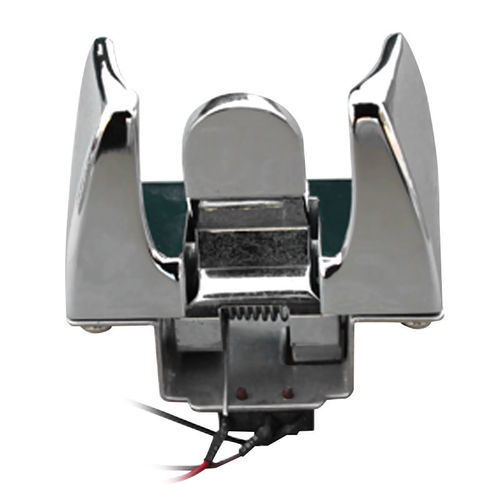

Gancho para telefone H2

em aço inoxidávelem aço inoxidável

Product Introduction
The hook adopts high-quality materials, the surface copper, nickel, chrome plated, can be a good anti-corrosion, anti external damage, to ensure its excellent performance. Our Hook is suitable for outdoor public telephones.

Standard
GB/15279-94 Automatic telephone technology conditions; YDN109-1998 (chapter 4) IC card telephone technical requirements and test methods

Conditions of using

• Service Environment: -25~55℃
• Relative humidity: 10%~95%
• Atmospheric pressure: 96~108KPa

Main structure parts

• a. 600 # hanging for zinc aluminum casting, polishing chromium plating on the surface processing, good appearance
• b. Hang tongue for zinc aluminum casting, polishing chromium plating on the surface processing, good appearance
• c. Selects the high quality of universal switch, on resistance: 0.1, cable length L: 150

Insulation resistance
In the switch between lead wires and metal shell, with TH2681A insulation resistance tester tests (DC 250 V, insulation resistance: 50M)

Withstand voltage
In the switch between lead wires and metal shell, with ET2670A hipot tester tests, shall meet the following requirements: AC1600V/50Hz/1min, Leakage current: 0.5mA. And there is no flashover or breakdown phenomenon.

Caractéristiques / spécifications techniques

• Model: Kntech H2
• Size: (not specified)
• Material: Stainless steel
• Service Environment: -25~55℃
• Relative humidity: 10%~95%
• Atmospheric pressure: 96~108KPa
• Main structure parts: zinc aluminum casting parts with polishing chromium plating; universal switch with on resistance 0.1 and cable length 150
• Insulation resistance: DC 250 V test, 50M
• Withstand voltage: AC1600V/50Hz/1min, leakage current 0.5mA, no flashover or breakdown
• Standards: GB/15279-94; YDN109-1998 (chapter 4)
