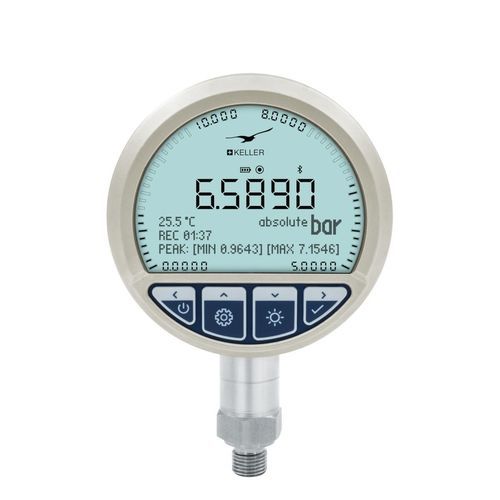

Manômetro absoluto LEO Ultimatede pressão relativadigitaleletrônico
Guardar nos favoritos
Comparar
Características
- Tipo de pressão
- absoluto, de pressão relativa
- Display
- digital
- Tipo de tecnologia
- eletrônico
- Comunicação
- USB, com Bluetooth
- Grau de proteção
- IP67
- Aplicações
- de processo, de calibração, de teste
- Pressão
MÁX: 1.000 bar
(14.503,77 psi)MÍN: -1 bar
(-14,5 psi)- Precisão
0,01 %, 0,05 %
Descrição
Product Description
The LEO Ultimate digital pressure gauge is a high-precision measuring instrument designed for demanding applications in calibration, service and industry. It combines piezoresistive measurement technology with advanced analysis functions, enabling both absolute and relative pressure measurements in a single device.
Thanks to the integrated barometer, it is possible to switch between the two pressure types at any time without the need for additional sensors. This allows the device to be used flexibly in a variety of applications.
The various measurement modes enable the analysis of static and dynamic pressure profiles as well as leakage tests. This range is complemented by a data logger function for recording over extended periods.
Parameterisation and data retrieval are carried out via USB-C or wirelessly via Bluetooth. In combination with the PressureSuite software, measurement data can be easily visualised and documented.
The robust metal housing with IP67 protection and the easy-to-read display allow the device to be used even under demanding environmental conditions.
Key specifications
Caractéristiques / spécifications techniques
The LEO Ultimate digital pressure gauge is a high-precision measuring instrument designed for demanding applications in calibration, service and industry. It combines piezoresistive measurement technology with advanced analysis functions, enabling both absolute and relative pressure measurements in a single device.
Thanks to the integrated barometer, it is possible to switch between the two pressure types at any time without the need for additional sensors. This allows the device to be used flexibly in a variety of applications.
The various measurement modes enable the analysis of static and dynamic pressure profiles as well as leakage tests. This range is complemented by a data logger function for recording over extended periods.
Parameterisation and data retrieval are carried out via USB-C or wirelessly via Bluetooth. In combination with the PressureSuite software, measurement data can be easily visualised and documented.
The robust metal housing with IP67 protection and the easy-to-read display allow the device to be used even under demanding environmental conditions.
Key specifications
- Pressure Ranges: -1...1 to 0…1000 bar / -15…15 to 0…15000 psi
- Accuracy: ± 0,05 %FS (optional ± 0,01 %FS)
- Total Error Band: ± 0,05 %FS @ 0…50 °C
- Interfaces: USB 2.0 / Bluetooth BLE
- Special Characteristics: High-precision reference instrument
Caractéristiques / spécifications techniques
- Measurement technology: piezoresistive
- Pressure types: absolute and relative (switchable via integrated barometer)
- Measurement modes: static and dynamic pressure analysis, leakage tests
- Data logger function for long-term recording
- Parameterisation and data retrieval: USB-C and Bluetooth BLE
- Housing: robust metal housing with IP67 protection
- Display: easy-to-read display for demanding environmental conditions
- Typical pressure ranges: from vacuum up to 1000 bar (or up to 15000 psi)
- Accuracy options: standard ±0.05% FS; optional ±0.01% FS
- Total error band: ±0.05% FS within 0…50 °C
