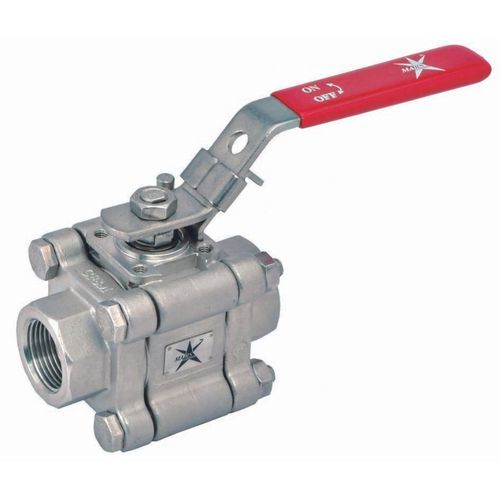

Válvula de esfera 83 series

manualde bloqueio3 peças

Visão geral
A Series 83 é uma linha de válvulas de esfera de 3 peças resistentes ao fogo, com 32 variantes disponíveis em diferentes tamanhos e configurações.

Resumo do produto

• Projeto: 3 peças, construção resistente ao fogo
• Assentos: PTFE / RTFE
• Materiais do corpo: CF8M e WCB
• Opções de porta: full port e reduced port
• Tamanhos indicados: 1/4" até 2"
• Classificações de pressão: até 2000 PSI para tamanhos menores, 1500 PSI para alguns tamanhos maiores

Modelos / variantes (SKU | Tamanho | Porta | Corpo | Classificação de pressão | Assentos | Projeto | Preço)
V83-FS-1-4IN-FULL-PORT-CF8M | 1/4" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £33.73
V83-FS-1-4IN-FULL-PORT-WCB | 1/4" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £27.10
V83-FS-3-8IN-FULL-PORT-CF8M | 3/8" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £33.73
V83-FS-3-8IN-FULL-PORT-WCB | 3/8" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £27.10
V83-FS-1-2IN-FULL-PORT-CF8M | 1/2" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £36.50
V83-FS-1-2IN-FULL-PORT-WCB | 1/2" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £29.26
V83-FS-1-2IN-REDUCED-PORT-CF8M | 1/2" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £34.65
V83-FS-1-2IN-REDUCED-PORT-WCB | 1/2" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £27.87
V83-FS-3-4IN-FULL-PORT-CF8M | 3/4" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £44.81
V83-FS-3-4IN-FULL-PORT-WCB | 3/4" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £35.88
V83-FS-3-4IN-REDUCED-PORT-CF8M | 3/4" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £37.42
V83-FS-3-4IN-REDUCED-PORT-WCB | 3/4" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £30.03
V83-FS-1IN-FULL-PORT-CF8M | 1" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £58.67
V83-FS-1IN-FULL-PORT-WCB | 1" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £46.97
V83-FS-1IN-REDUCED-PORT-CF8M | 1" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £47.74
V83-FS-1IN-REDUCED-PORT-WCB | 1" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £38.50
V83-FS-1-1-4IN-FULL-PORT-CF8M | 1 1/4" | Full | CF8M | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £81.93
V83-FS-1-1-4IN-FULL-PORT-WCB | 1 1/4" | Full | WCB | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £65.60
V83-FS-1-1-4IN-REDUCED-PORT-CF8M | 1 1/4" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £61.60
V83-FS-1-1-4IN-REDUCED-PORT-WCB | 1 1/4" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £49.13
V83-FS-1-1-2IN-FULL-PORT-CF8M | 1 1/2" | Full | CF8M | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £116.89
V83-FS-1-1-2IN-FULL-PORT-WCB | 1 1/2" | Full | WCB | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £88.70
V83-FS-1-1-2IN-REDUCED-PORT-CF8M | 1 1/2" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £92.25
V83-FS-1-1-2IN-REDUCED-PORT-WCB | 1 1/2" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £70.22
V83-FS-2IN-FULL-PORT-CF8M | 2" | Full | CF8M | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £156.16

Observações
• Os preços mostrados são os preços por variante conforme listados na página (moeda GBP).
• As opções de corpo CF8M e WCB são oferecidas em várias tamanhos e tipos de porta.
