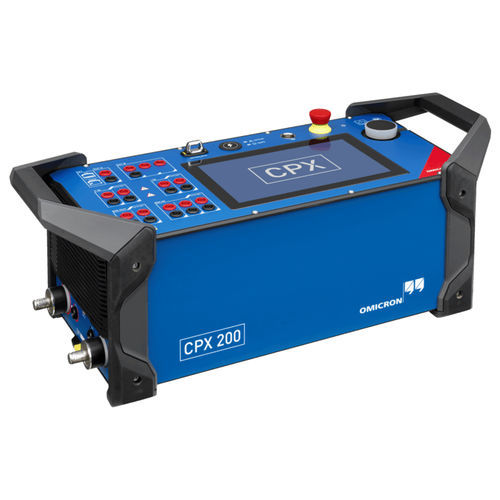

Aparelho de teste de tensão CPX 200

de correntede performancede qualidade

CPX 200 — Revolutionary ExcellenceCPX 200 was designed to meet today's demands and the challenges of future power systems. Compact, powerful, and exceptionally safe, it sets a new standard for next-generation multifunctional testing. Developed according to internationally recognized standards, the CPX 200 meets all current safety and cybersecurity requirements. It is ideal for substation commissioning and diagnostic testing of medium and high voltage assets. It offers exceptional performance covering hardware, software, and accessories, ensuring long-term reliability and maximum value.WATCH THE MAIN PRESENTATIONTests power transformers, instrument transformers, circuit breakers, and disconnectorsWide application range with integrated high current module and compact HVX10 high voltage sourceAdjustable accessories with “Click&Play” systemVersatile transport options with backpack or carrying caseGuided test procedures with custom PC software CPXpertFast operation via CPX TouchControlEfficient analysis with our future-oriented cloud system, CORTEX GridKey Features:Combined measurement channels minimize connection effortsTrue three-phase voltage sourceColor multitouch screen with automatic brightness adjustmentGuided test execution with detailed nameplate data supportTesting of multiple assets in a single user interfaceComplete and automatic documentation of test resultsSimplified test plans and reports from start to finishPerformance:1,000 A AC/DC with high current module10 kV AC/DC with HVX10Test frequency range: 1–600 Hz and DCHigh measurement accuracySafety:Red/green signal lightsEmergency stop buttonINTERLOCK keyWorkflow according to EN 50191Connection guidance with indicator lightsOptional accessory: external warning lamp (coming soon)Portability:All tests can be performed with a total system weight under 30 kg (66 lb)CPX 200: 10.6 kg (23.3 lb)High current module: 3.3 kg (7.4 lb)HVX10: 14.8 kg (32.7 lb)Avoid heavy lifting and load limitations with a lightweight system solutionTechnical Specifications / Features:Multifunctional compact test equipment for commissioning, maintenance, and condition assessment of medium and high voltage assetsDeveloped according to international safety and cybersecurity standardsIntegrated high current and high voltage modulesCustomizable accessories and transport optionsGuided test procedures and automated reportingCloud-based analysis and data managementTouchscreen operation and PC software integrationSystem weight under 30 kg
