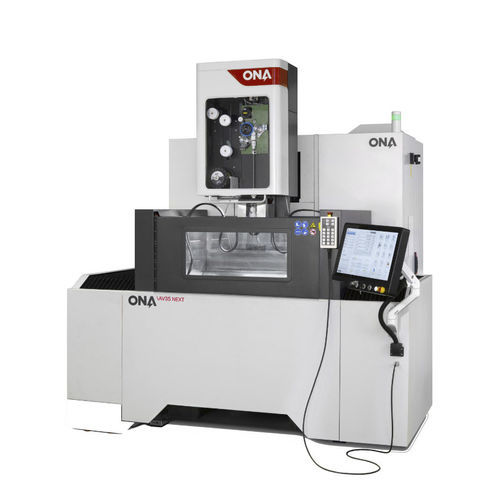

Máquina de eletroerosão a fio ONA AV35 NEXT

de alta velocidadede precisãode alta produtividade

Precise Machine structure: • Change of the tank rear closure system in order to reduce friction and achieve a reduction of the backlash. • Greater rigidity of the head and its load cell, which favours cutting precision. Wire cinematics: • More range of wire tension (from 100g to 3000g). • Optimization of the use of the wire brake wheel, facilitating its repositioning to make the most of it. • Special brake wheel for use with fast-cutting coated wires. Ergonomical Filter: • Easier access to the resin bottle and filter cartridges. The cartridges are extracted at the rear of the machine, with the help of a tray to make the operation more ergonomic. Work Tank: • Pneumatic door, much faster up and down. • The work tank illumination light is positioned so it does not dazzle the user, clearly illuminating the work area and lower head. Wire cinematics: • The replacement of the lower current socket can be done from the outside of the head, without having to remove more than a simple cover. It is no longer necessary to disassemble part of the lower head to change the socket. The socket can be removed without removing the conical pieces on its top. • New easy removal system for the inner wheel of the lower head. Autonomous Filter: • Cartridge status monitoring. The machine notifies the operator that the filter cartridges are becoming saturated, so that he can plan to replace them with new ones at the most appropriate time. • Cartridge pressure switch, digitized maintenance. Wire cinematics: • Option of an external wire feeder for spools of up to 45 kg, compatible with the existence of the standard feeder for spools of up to 16 kg included on the front of the machine.
