Exaustor de fumaça móvel TFS 250

industrialde soldagema laser

Résumé
TFS 250 – Powerful extraction for laser marking and soldering processes

Présentation
The TFS 250 was specially developed for laser marking, laser engraving, laser cutting, and soldering workstations that require high negative pressure. Despite its compact design, it offers a low‑maintenance and efficient solution for a wide range of manufacturing processes. This model will be W3 certified from Q3/2025.

Performances et usages

• Applications: laser marking, laser engraving, laser cutting, soldering workstations.
• Designed for applications with long pipes or narrow cross‑sections.
• Air flow rate (stated in description): 50 to 500 m³/h.
• Optional equipment: extraction arm, spark arrestor, gravity separator (customizable extraction solutions).

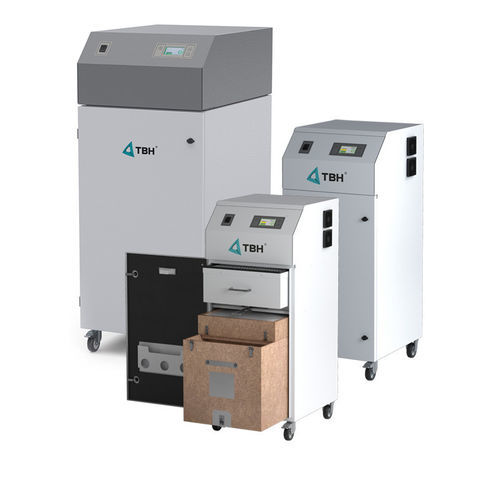

Variantes produits

• TFS 250 Standard — Filter configuration: SafeLine filter (F9), particle filter H14.
• TFS 250 Plus — Filter configuration: SafeLine filter (F9), particle filter H14, activated carbon.

Remarques techniques supplémentaires

• Motor information appears in two places: a 1.8 kW motor is stated in the product description text; the technical data table lists engine power as 1,1 kW.
• W3 certification planned from Q3/2025.

Caractéristiques / spécifications techniques

• Weight: 95 kg.
• Dimensions: 1050 × 480 × 540 cm.
• Air volume flow: not specified in the technical table (description states 50–500 m³/h).
• Effective air volume flow: not specified.
• Max. static pressure: 15000 Pa.
• Voltage: 120/230 V.
• Frequency: 50/60 Hz.
• Engine power: 1,1 kW (technical table).
• Motor (stated in description): 1.8 kW.
• Sound level: not specified.
• Serial interface: 25‑pin Sub‑D.
