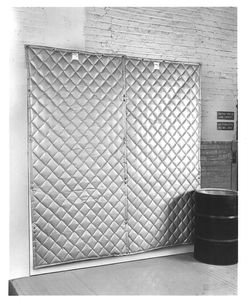

PROSPEC Barriers are an ideal solution for isolating noise and minimizing sound tranmission through walls and or ceilings. Hang it like a curtain, weave it inside a wall cavity, or mount it over an existing wall to help contain noise. Three different styles are availble to best suite your application.
|
|
Description:

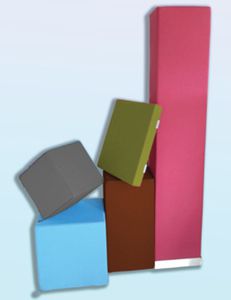

Elements for the construction of volumetric absorbent surfaces as baffles. Designed and maded to the needs of each local.
Applications:
Improving the answer for absorbing in all kinds of premises, where the standard solutions are not possible.
|
|
Application:
Thanks to his maximum acoustic performance (alphaw = 1), Atrium® reduces the sound level by decreasing the time of reverberation.
Description:
Atrium® is a suspended ceiling panel lined with a decorative
glass fibre tissue on the visible side and a natural glass fibre
tissue on the reverse side. Benefiting from the last technological headways of the stone wool, the Atrium® presents a maximal acoustic performance (alphaw = 1), a strengthened mechanical holding and a perfect perpetuity in the time.
Execution:
Atrium panels are installed on an easy to dismantle T15 or
T24 mm framework. They should be installed in accordance
with the stipulations of the NFP 68203-1 & 2. We recommend
providing air circulation between the room and the plenum in
order to balance out any temperature and pressure differences on either side of the ceiling.
|
|
|
pinta's ceiling tiles add texture, style, and color to any interior while solving a wide array of acoustical issues.
|
|
Application:
Industrial and commercial premises requiring acoustic control panels which are resistant to humidity and noncombustible. A wide range of standard colours is available, chosen by specialist designers to give life to even the most functional of spaces.
Presentation:
A rigid self-supporting stone wool panel offering remarkable acoustic absorption capabilities. Acoustished® is faced with a white or coloured glass fibre tissue, the reverse being lined with a natural glass fibre tissue. The panels offer complete and permanent rigidity.
|
|
Application
Due to its aluminium vapour protection Eole is impervious to water vapour, allowing it to be installed under cold roofing. It is suitable for use in all types of social, educational and service industry applications.
Presentation
Rigid, self-supporting thermo- coustic mineral wool panels used for under-roof. Panels are covered by a white or coloured glass tissue reinforced with an aluminium sheet on the visible side. The reverse side is faced with a natural glass tissue ensuring perfect long term stability.
Execution
Eole panels can be installed with a normal visible grid system with white or coloured tees of 15mm or 24 mm. Eole panels can be used for suspended ceilings, or flat or inclined under-roof panels.
|
|
|
|
|
|
pinta offers a variety of wall panels to meet all your acoustic challenges.
SONEX® Clean Wall Panels
* Washable, cleanable and durable
* Sound absorption to reduce reverberation or echo
FABRITEC Wall Panels let you create a custom look using standard panels. These durable panels provide superior acoustical control in a variety of settings, including: schools, gymnasiums...
Eligible for LEED credits, PHONSTOP Ceiling and Wall Tiles are made from 100 percent recycled glass that has been sintered to form rigid, lightweight and porous sound absorbers.
SONEX Classic and SONEX Junior Panels feature a modified anechoic wedge design for cost-effective, yet impressive sound control. The unique geometric shape of the surface pattern on these panels...
SONEX One Panels are a versatile product, offering effective acoustic control in a variety of applications and environments including: industrial facilities, multi-purpose rooms and architectural projects...
SONEX Pyramid Panels offer outstanding acoustic control across all frequencies with Noise Reduction Coefficients (NRCs) ranging from 0.75 to 1.05. The unique geometric design of these panels
SONEX Valueline Panels provide effective acoustic control at an affordable price. The subtle surface pattern on these panels render them inconspicuous in most settings, making them suitable...
SONEX Mini Panels provide excellent sound absorption, especially in environments requiring high-frequency noise control. Made with pinta's willtec® foam, SONEX Mini Panels are a...
WHISPERWAVE Panels provide exceptional and have an NRC of up to 1.05.
|
|
|
|
|
|
Application
Acoustiroc® will provide excellent acoustic control in many environments including : industrial premises, schools, interview rooms, sports halls, recording studios and canteens. The system provides solutions to acoustic control problems in all areas where the walls are to be used in providing acoustic correction but also need to resist mechanical damage.
Presentation
Acoustiroc® is a stone wool panel with a perforated metal face. The face is coated in epoxy paint, either white, or in a wide range of colours and is backed with a black glass fibre tissue. The panel provides a thermo-acoustic wall lining, both decorative and impact resistant. The reverse of the panel is lined with natural glass fibre tissue for ease of installation and the complete system has excellent long-term durability.
Execution
The Acoustiroc® panel system is very easily and quickly assembled using one all-purpose channel trim. The panels are also easily demounted if necessary. The base support strip allows the panels to be positioned by locating the top of the panel in the upper channel then sliding down to locate in the base channel.
The channel trim is also used to provide all lateral finishes and
horizontal joints.
|
|
Modular acoustic panel whit optimal acoustic performance
It can be employed to realize:
- Silent cabins
- Soundproofed screens
- Internal dividing walls for offices, warehouses , workshops
- walls and ceilings covering
It’s realized in high resistance steel, strong but light: it facilitates the movement and installations of the panels.
Technical characteristics, with side male-female junction, and available profiles and accessories, permits a fast and reliable installation.
|
|
Modular acoustic panel whit optimal acoustic performance
It can be employed to realize:
- Soundproofed screens
- Internal dividing walls for offices, warehouses , workshops
- walls and ceilings covering etc…
It’s realized in high resistance steel, strong but light: it facilitates the movement and installations of the panels.
Technical characteristics, with side male-female junction, and available profiles and accessories, permits a fast and reliable installation.
|
|
Modular acoustic panel whit optimal acoustic performance
It can be employed to realize walls and ceilings covering
It’s realized in high resistance steel, strong but light: it facilitates the movement and installations of the panels.
Technical characteristics, with side male-female junction, and available profiles and accessories, permits a fast and reliable installation.
|
|
It can be employed to realize:
- Silent cabins
- Soundproofed screens
- Internal dividing walls for offices, warehouses , workshops
- walls and ceilings covering
It's realized in high resistance steel, strong but light: it facilitates the movement and installations of the panels.
Technical characteristics, with side male-female junction, and available profiles and accessories, permits a fast and reliable installation.
|
|
Light alloy panel, soundproofing and sound absorbing, planned to realize
acoustic shieldings of noise sources in free field. The side faces towards the
noise source is pierced, while the side faces towards the receiver is rib to
constitute a monolithic ensemble of remarkable mechanical resistance. The
panels are planned to being installed overlapped in horizontal sense, inserting hem between the mounting wings of the vertical HEA, that constitute the main carrying structure
|
|
Light alloy panel, soundproofing and sound absorbing, planned to realize
acoustic shieldings of noise sources in free field. The side faces towards the
noise source is pierced, while the side faces towards the receiver is rib to
constitute a monolithic ensemble of remarkable mechanical resistance. The
panels are planned to being installed overlapped in horizontal sense, inserting them between the mounting wings of the vertical HEA, that constitute the main carrying structure
|
|
| ... products without technical information |
| |
|
|
|
|
The WCA mini AD3661 - It goes where you go- Portable 4-channel Noise & Vibration Analysis System
- USB bus power unit
- 24 bit, 4-channel measurements
- A channel exclusively for tacho pulse measurements
- WCAPRO (multi analysis software)
- FFT analysis and real-time octave analysis
- Tracking analysis and throughput recording/playback
- Equipped with WCA Lite (easy-to-use analysis software)
* Configuration
Standard configuration
- AD3661 Hardware (size: 30(H) x 139 (W) x 138(D) mm, weight: 330g,
including UBS cable and power adaptor)
- WCA Pro software and license for basic FFT analysis
* Options for WCA Pro software
2D tracking license
3D tracking license
Real-time Octave analysis license
Time-series filtering license
[Features]
A portable and lightweight, USB bus powered unit
The WCA mini is small and light enough to fit into your travel case. Its actual size is Height 30mm (height) x Width 139mm x Depth138 mm (width), and weights is only 330g. Power can be supplied from athe USB bus, allowing you to perform noise and vibration analyses anywhere.
User-friendly GUI and WCA Lite with improved ease of operation
With enhanced operability, the WCA mini has adopted the same design concept employed in the highly reputed WCA. WCA Lite will enable simple operation of FFT and tracking analyses.
Complete compatibility with the CompactWCA/WCAonPC
A compatible user interface eliminates the need for additional training of existing users.
WCAPRO, multi-analysis software
WCAPRO provides real-time FFT analysis for noise & vibration testing.
Please see the AD-3661 catalog for further details.
|
|
|
|
|
|
The WCA mini AD3661 - It goes where you go- Portable 4-channel Noise & Vibration Analysis System
- USB bus power unit
- 24 bit, 4-channel measurements
- A channel exclusively for tacho pulse measurements
- WCAPRO (multi analysis software)
- FFT analysis and real-time octave analysis
- Tracking analysis and throughput recording/playback
- Equipped with WCA Lite (easy-to-use analysis software)
* Configuration
Standard configuration
- AD3661 Hardware (size: 30(H) x 139 (W) x 138(D) mm, weight: 330g,
including UBS cable and power adaptor)
- WCA Pro software and license for basic FFT analysis
* Options for WCA Pro software
2D tracking license
3D tracking license
Real-time Octave analysis license
Time-series filtering license
[Features]
A portable and lightweight, USB bus powered unit
The WCA mini is small and light enough to fit into your travel case. Its actual size is Height 30mm (height) x Width 139mm x Depth138 mm (width), and weights is only 330g. Power can be supplied from athe USB bus, allowing you to perform noise and vibration analyses anywhere.
User-friendly GUI and WCA Lite with improved ease of operation
With enhanced operability, the WCA mini has adopted the same design concept employed in the highly reputed WCA. WCA Lite will enable simple operation of FFT and tracking analyses.
Complete compatibility with the CompactWCA/WCAonPC
A compatible user interface eliminates the need for additional training of existing users.
WCAPRO, multi-analysis software
WCAPRO provides real-time FFT analysis for noise & vibration testing.
Please see the AD-3661 catalog for further details.
|
|
|
|
