A clamp ammeter measures current flow in an AC or DC circuit. It opens for placement around the conductor.
Electricians use this instrument to verify current flow in electrical systems and machinery.
The jaws of this instrument are clamped around the conductor, completing the meter's magnetic circuit. The electrical circuit remains live and undisturbed, while the meter's insulation eliminates common-mode interference.
AC-only meters use the current induced in a coil around the magnetic circuit to calculate and display the measurement directly. Alternatively, the measurement is converted to a voltage and read on a multimeter, an oscilloscope or fed to a signal input. Most clamp meters display results as a root mean square (RMS).
Ammeters measuring DC or AC/DC have a Hall-effect sensor in the magnetic circuit, which induces a voltage in the sensor's semiconductor. The slight phase delay and the bandwidth enable the analysis of complex signals and give the true RMS. Specialized versions measure leakage current.
Initial choice is between AC or AC/DC meters. Other factors include, maximum amperage and conductor diameter, resolution and overload rating.
- Galvanic insulation
- Conductor remains undisturbed
- Measures without contact
 |
 |
Ammeter clamp 600 V AC | Fluke 345 FLUKE
Fluke 345 Power Quality Clamp Meter This clamp on meter is a combination power analyzer, power quality logger, and clamp meter, and is ideal for monitoring electronic loads. With the bright color power meter display to analyze the harmonic spectrum, a low-pass filter to remove high frequency...
 |
 |
Ammeter clamp for leakage current measurement 500 µA - 400 A | B102 CHAUVIN ARNOUX
The B102 clamp is designed for measuring leakage current diverted towards the earth. It enables the fault to be located or anticipated without disconnecting the...
 |
 |
Ammeter clamp for leakage current measurement CL320 YOKOGAWA Europe
Leakage current measurement with current range from 20mA to 200A Light weight and compact...
 |
  |
Ammeter clamp 10 - 100 A | DCM-043 Tecpel Co., Ltd.
AC/DC Current clamp meter and Transmitter ( DCM-043) TECPEL DCM-043 a high high resolution AC/DC clamp meter. With the resolution of...
 |
 |
Ammeter clamp 1000 A | R2001 -5 DERANCOURT
Uses Voltmeter, Ammeter, Ohmmeter. Frequency meter, Capacitance meter Continuity and diode sound and visual tester. Min / Max Value....
 |
 |
Ammeter clamp for leakage current measurement max. 200 A | CMP-200 SONEL S.A.
The CMP-200 digital clamp meter has been designed for clamp measurements of AC leakage current. AC current measurement up to 200A....
 |
 |
Basic function DC Voltage 1000V AC Voltage 750V AC Ccrrent 200mA～200A Resistance 200Ω～2000Ω Express function...
 |
 |
Ammeter clamp for leakage current measurement DCM300E Megger Limited
The DCM300E Earth Leakage Clamp designed primarily to check earth leakage currents with a dedicated 30 mA range providing resolution down to 10 µA. The capabilities of the DCM300E extend to measuring currents of up to 300 A ac, making it a highly versatile instrument capable of taking current measurements in a wide variety of situations and applications....
 |
 |
True RMS ammeter clamp max. 600 A | HT9014 HT
HT9014 professional clamp is designed for AC TRMS current measurement up to 600A, and DC/AC voltage for achieve safety CAT IV 1000V according...
 |
 |

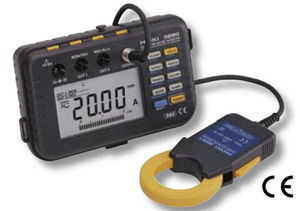

AC / DC ammeter clamp max. 2000 A | 3290/ 3290-10 HIOKI E.E. CORPORATION
All the Functions You Need for Measurement at DC or 1Hz and Up * Choice of three sensors (Example combinations) 3290/3290-10 +9691 : Measure up to 100A 3290/3290-10 +9692 : Measure...
 |
 |
True RMS AC / DC ammeter clamp MD 9225 METREL
The MD 9225 is a versatile current clamp meter with perfect combination of size and built-in functions. It measures AC/DC current and voltage, capacitance, temperature, full range resistance...
 |
 |
DEWETRON offers several solutions for current measurement from simple shunts...
 |
 |
Ammeter clamp max. 1 000 A Weschler Instruments
Ideal for verifying current in plating tanks, coating systems, welding equipment, motors, generators and transformers. Instant Readings One Hand Operation No transformers or Shunts Needed Made...
 |
 |
The lightweight Type L Plus large jaw current clamp meter is designed for the measurement of current in large diameter conductors and fuses. Its 100mm jaw opening allows for use in most difficult...
 |
 |

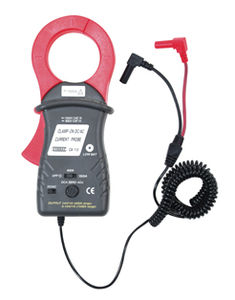

Ammeter clamp 0.1 - 400, 1 - 1500 A DC/AC | CA113 Finest
CA113 dc/ac Clamp-on High Current Probe CE-mark Certified. Compatible with any millivolts measuring DMM. Range and...
 |
 |
Ammeter clamp 260 / 270 Test Products International
296: 4,000 count manual ranging digital clamp-on meter with analog bar graph, True RMS, frequency, % harmonic distortion, data hold, Min/Max/Peak, and sleep mode/auto off. 293: 4,000 count manual ranging digital clamp-on meter with analog bar graph, True RMS, frequency,...
 |
 |
Ammeter clamp 1 000 A AC, 750 V AC | 511 AEMC Instruments
511 Clamp-On Meters The Clamp-On Meter Model 511 is a general purpose professional clamp-on meter that measures up to the toughest standards. It is built into a rugged mechanical case and is designed using quality polycarbonate materials....
 |
 |
Ammeter clamp PCE-DC 4 PCE Instruments UK Ltd
The PCE-DC4 current detector is a non-contact current detector. It has a solid fire-proof housing with a rubber protection which makes this detector very easy to handle. Its special shape allows use in narrow spaces which are hard to access....
 |
 |
Ammeter clamp for leakage current measurement 200 mA, 2000 mA, 10 A | METRACLIP 62 GMC Instruments
Digital Current Clamp for Leakage and Charging Current Measuring with a particularly shielded opening for protection against outside influences. For...
 |
 |
Autorange AC ammeter clamp 600 V, 400 A | DT-36x series CEM Instruments, Inc
DT-360/361/362/363/366/367 Compact AC, AC/DC Autoranging Clamp Meters The 360 series clamp meters offer all the features you need to fi t the way you...
 |
 |
True RMS AC / DC ammeter clamp 1000 A | CM58 Martindale Electric
The Martindale CM58 is our top range clamp meter, measuring both AC & DC current. Representing outstanding value for money, this clamp is feature packed measuring AC...
 |
  |
AC / DC ammeter clamp 1500A AC/DC | MA1500 Extech
MA1500: 1500A True RMS AC/DC Clamp Meter + NCV Integrated Non-Contact Voltage Detector Features: * True RMS for accurate readings of non-sinusoidal waveforms...
 |
 |
Ammeter clamp for leakage current measurement 200 mA - 1 000 A | 2413R Kyoritsu
Leakage Clamp Meters KEW 2413R • Large transformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together...
 |
 |
Description: 2000 A DCA/ACA CLAMP METER + DMM, True rms Model : CM-9930 * Heavy duty, CATIII-1000V....
 |
 |
Ammeter clamp for leakage current measurement 100 A | YF-8160 TenmarsTenmars Electronics
DISPLAY - 3¾ digits LCD with maximum reading 4000. - Overload indication. - Low battery indication. FUNCTIONS -...
 |
 |
Ammeter clamp for leakage current measurement max. 300 A | DLC-330L Sanwa Electric Instrument
Basic Features Analog bar graph Leak current measurable AC30m～300A, 4 ranges Slim...
 |
 |
AC / DC ammeter clamp 40 - 700 mA, 200 - 700 A | CT-193, CT-195, CT-237 PROMAX ELECTRONICA
The CT-193, CT-195 and CT-237 clamp meters are an essential...
 |
 |
AC / DC ammeter clamp Max. 400 A | ACDC-400 Amprobe
Functions Current, voltage and resistance measurement Continuity test with beeper Product information Automatic...
 |
 |
Clamp multimeter max. 1 000 A DC, 750 VAC | 369B B&K Precision
# B+K Precision offers a wide variety of current clamps for safe non-invasive current measurement. Measure up to 2000A with these reliable, rugged instruments....
 |
 |
Clamp multimeter U1210 Series Agilent Technologies
Measurements of electrical distribution cables can be challenging and risky. For cables up to two inches in diameter, the Agilent U1210 series handheld clamp...
