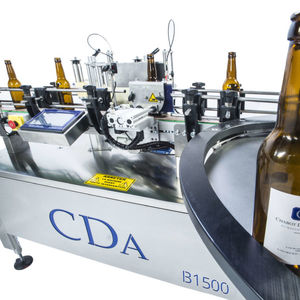

The range of machines offered by CDA to label and capsule wine bottles covers the needs of all small and medium wine production units. From 700 to 2 500 bottles an hour they make your bottles have a perfect look and realy easy. On the machines fitted with a digital touch screen the memorisation of the labeling parameters allows quick changes from one shape of bottle to another, and this without additional tools.
|
|
|
To apply labels on cylindrical items CDA offers a wide range of solutions adapted to every specific need. Our machines are designed for labeling as well as in the F&B industry as in the chemistry or cosmetic industry and can apply any kind of label onto any kind of material. Various types of detection cells and marking devices can be fitted on the machine according to your needs of label positioning and traçability.
|
|
Some cylindrical products require top and wrap around labeling with positioning or top and front and back labeling.
Some production lines require the ability to apply labels onto flat and cylindrical items. Here under some solutions to it :
- Linear labeling machine to apply label on top and on the side off cylindrical items.
- Linear labelling machine that can handle both cylindrical and flat items.
|
|
CDA provides diverse solutions to apply labels onto flat products, either from the side or above, or both if required.
Here under a couple of applications, knowing we adapt the machine to the type of items you need to label, its size, weight etc…
|
|
The ALS family represents our latest generation of label applicators, which offer a very high standard of efficiency. These applicators are suitable for all self-adhesive product and decorative labels, as well as for usage in the area of logistics, especially for the drinks, canned goods, hygiene, cosmetics, household goods, electronics and chemical industries.
Fast, Flexible, Favorable
The ALS labelling machines combine extreme robustness with high-performance, and the latest ALS generation is now even more reliable and compact than ever.
All three ALS machines are configured for high requirements in continuous operation. 24 hours a day, 7 days a week, and this with high dispensing accuracy - no problem for the new ALS generation!
The ALS family makes "you" flexible. Its modular concept allows you to effortlessly integrate a unit into your existing system and exchange it for another "member of the family", if required.
Proven Quality
All three ALS machines have been designed in accordance with the tried and tested Avery Dennison Standard, which distinguishes our range of products from all others, and makes the ALS generation so reliable.
Benefits of the ALS-Family
* Attractive price-performance ratio
* High standard of industrial protection
* Integrative
* RFID-enabled
* User-friendly
* Flexible in use
* Flexible post-processing
|
|
Features:
- For cutting, gluing and affixing pre-printed paper labels directly to the upper side of magazines Lists and label formats:
- Edge-perforated address lists of 100 - 300 mm width with 1, 2, 4 and 5-track printout
- Label length: 66 - 114 mm
- Label width: 1", 1,5" or 2"
- Output: 15,000 cycles/hour
|
|
Features:
- Heavy-duty steel framework.
- L15H label applicator.
- Variable speed components.
- Photoelectric product sensor.
- Easy access controls.
Specifications:
- Dimensions: 42"W x 72"L x 56"H
- Speed: up to 1200" per minute.
- Label roll capacity: 12" OD
- Web Width: up to 4 1/2"
- Electric: 120VAC +/-10%
- Shipping weight: approx. 1075lbs.
|
|
Etipack automatic labellers are designed to satisfy four objectives: high-performance, flexibility, reliability and ease of maintenance. Available in a variety of different standard configurations with an array of optional accessories, the four models, Clear, Surprise, Original and Super
Clear
Clear is a compact labeller with speeds of up to 20 metres/minute designed for low to medium speed pack-aging lines or end-of-line applications. It has the technology and structure of an industrial labeller: Clear is solid, accurate and reliable.
Surprise
Fast and versatile, Surprise can dispense labels of up to 130 and 250 mm in width thereby satisfying a variety of labelling requirements in many different industrial sectors. The step motor ensures accurate labelling, the unwinder with loop control tilting roller ensures optimal unwinding tension and the switching technology stabilizes the supply current.
Original
Original was designed for more specific packaging line applications; it combines a solid structure with reliability and high performance levels. Original comes in electric or pneumatic versions, with or without motor-driven rewinder, for labels up to 130 mm and 250 mm in width and 280 mm or 380 mm roll holders.
Super
The labeller designed to meet the most demanding packaging line situations. Thanks to a powerful step motor, it can reach speeds of 80 metres/minute and of 120 metres/minute in the High Speed version. The label roll holder of 380 mm in diameter ensures sufficient production autonomy with the option of automatically switching between two different labellers.
|
|
Avery Dennison AS 306 is the roofridge OF the new generation OF labelling machines, off ring A very high standard OF efficiency and
reliability. It is the perfect fit for highly
demanding product LINEs with 24/7 measured flow guess/advise.
As 306 is perfectly larva for:
Decorative label
Promotional label
Branding label
Declaration label
Product label
|
|
ROTOSTAR™ rotary labeler is capable of processing up to 350 BPM* (*Subject to testing with actual samples). Built on our proven monoblock frame, the RotoStar™ can apply pressure sensitive labels to the top, neck, shoulder, front or back for either round or shaped bottles.
For complex labeling, the RotoStar™ can be configured to apply up to five different labels
|
|
GLM-I 150 High Speed Weigh-Price-Labeler
The Bizerba GLM-I range is the ideal labeling system for all applications in the weightdependent and independent sectors for FPV (Average Weight) marking. It is the ultimate performer in the high-capacity packing sector with up to 150 packages per minute.
|
|
Europa
The Harland Europa labelling system is available with up to 4 labelling stations as standard. Motion control stepper motor, cam or continuous rotation of the bottle/container/pack platform allows for a multiplicity of label placements with high accuracy. Speeds of up to 400bpm are achievable, with optional bespoke product handling/orientation features ensuring fully automatic consistent & reliable labelling.
Flexibility in the incorporation of conventional high speed labelling heads allows for effective application including the application of ultra-thin film labels.
Features
- Up to 4 labelling stations as standard. Complete with conveyor, turret, star wheels & scroll feeding unit
- Motion control stepper motor, cam or continuous rotation of the bottle/container/pack platform allows for a multiplicity of label placements with high accuracy
- Speeds of up to 400bpm are achievable, with optional bespoke product handling/orientation features ensuring fully automatic consistent & reliable labelling
- Flexibility in the incorporation of conventional high speed labelling heads allows for effective application including the application of ultra-thin film labels
- Infeed Units Single scroll, infeed/outfeed starwheels and centre 'plough' - with overload protection 'Spotting' arrangement available for raised/recessed registration features and product orientation for base/side features
- Labelling Units A range of labelling heads are available to suit the application
- Finishing Units Brushes and/or rollers - position determined by bespoke camming arrangement
- Overprint Unit Hot foil printer, deboss discreet coder, thermal, laser and inkjet
- Ancillary Equipment Label/product security systems, product counters, infeed/outfeed monitoring controls Auto change for continuous running (max. 2 label dressings)
- Fully interlocked guarding
|
|
Labeling without contact
A modern technique of labeling with air jet allows: Efficiency, absence of contact, soft application of the label in a large surface. Not least, the absolutely precise positioning of the labels defined from the operator by the control system HSC350.
The display and the control system have a great facility of use respecting however the current regulations. Thanks to a compact planning, automatic labeler HSC350 occupy the minimal space, allowing that its numerous benefits are applicable also in small places.
Compact design
Thanks to a modular planning, is possible to turn the single "labelling body" on a hinge, guaranteeing an optimal positioning in every production line and assuring the perfect positioning of the label also on products of large dimensions.
The automatic labeler HSC350 is planned to be versatile, it can in fact be used or in modality stand-alone with personal support or integrated in a completely automatic production line. For integration on line of production are available a series of integration accessories, like separation belts, compensators of height and tapes guide.
|
|
The Model 5200 Corner-Wrap Label Printer-Applicator with optional RFID encoding
Weber's Model 5200 Corner-Wrap label printer-applicator combines high-quality label printing with a specially designed label applicator that affixes a single label around the corner of a carton as it travels via conveyor line.
In addition to offering a selection of high-quality label print engines that addresses various print speeds and resolutions, the Corner-Wrap system is available with optional RFID print-encode engines from Zebra Technologies that will satisfy the emerging requirements of today’s supply chain.
Standard thermal/thermal-transfer print engines produce text, bar codes and graphic images at 203- or 300-dpi. The RFID models combine those capabilities with the encoding and verification of RFID inlays to meet the specifications of EPC Gen 1 and 2.
Engineered, manufactured and available only from Weber, the unit prints (or prints and encodes) labels in a next-out mode, automatically removes them from their liner, and retains them by vacuum on a swing arm-mounted tamp pad. As a carton approaches, the tamp pad applies the label to its front panel, then swings around the corner and wipes the remaining portion of the label on its adjacent side.
The Corner-Wrap system handles labels up to 4 inches wide and 12 inches in length, and will print and apply labels to a maximum of 15 cartons per minute delivered at least 24 inches apart at a top conveyor speed of 60 feet per minute.
|
|
Combi FBL
Flat Box Labeler
The Combi FBL saves money and space by eliminating custom printed cases. With the Combi FBL, blank cases can be used for different products and can be labeled with variable information as they are needed.
|
|
Logomatic 515 B 90
An intelligent labelling system for barcode technology and product identification in industrial operation. It excels through its sturdy machine construction and modular design. The integrated print engine can be used for thermo-direct and thermo-transfer printing and allows real-time labelling with individual data per packaged good or serial labelling in continuous operation for high-speed packaging lines.
Logomatic 901 M
An intelligent labelling system for barcode technology and product identification in industrial operation. Its compact modular design and sturdy machine construction are impressive. The integrated print engine (printing width of 104 mm) can be used for thermo-direct and thermo-transfer printing and allows serial labelling with little change in the data for products whose shape remains the same.
Logomatic 901 T
An intelligent labelling system for barcode technology and product identification in industrial operation. It excels through its sturdy machine construction and modular design. The implementation of the integrated thermo-transfer print engine (a printing width of up to 104 mm) allows real-time labelling with individual data per packaged good.
Logomatic 804 M
High-performance rotary applicator with six hollow section vacuum disks. The labels are blown on in a non-contact procedure during continuous operation. Real-time labelling: Each label can be printed with a different data content at labelling speeds of up 180 cycles/min
|
|
Process development
Take advantage of our engineering experience. Schober supplies more than just individual components. Therefore it is quite common that our engineers develop complete production lines for the manufacturing of complicated products, such as:
Magnetic tape converting lines for the production of ATB-, ATB2- tickets, boarding passes, Iso cards, wallets, parking- and event tickets
Rotary die cutting machine for the production of coasters, in mould labels, wall paper borders, doilies, lottery tickets, cosmetic cotton pads etc.
High capacity machines for the production of folding cartons, hinge-lid cigarette boxes, paper cups, ...
Film and foil punching machines for medical, pharmaceutical and diagnostic products.
If we did not mention your specific application, please contact us and we are sure that we can offer you a solution based on our extensive R & D experience. Please send us your product samples or drawings.
|
|
Label-Aire is proud to introduce the newest addition to its line of advanced pressure-sensitive label applicators. The NEW Label-Aire® Model 3111 HS represents the pinnacle in advanced high speed air-blow pressure-sensitive labeling technology.
The Label-Aire 3111 HS "High Speed" label applicator can apply labels accurately up to a blistering 1,000 labels per minute. The 3111 HS utilizes Label-Aire's innovative Air-Blow technology which retains the label by vacuum on a honeycomb applicator grid. At the precise moment the product passes under the grid, the label is blown onto the product. Peel tip sensing ensures repeatable label placement accuracy. The 3111 HS also features a DC Servo which allows the unit to handle up to 5,000" (12,700 cm) of web per minute at peak velocity.
Label-Aire's 3111 HS offers added versatility in that it can be mounted in almost any position adjacent to the production line to apply labels to the tops, sides, or bottoms of products.
|
|
With the UDA 150-S from KBA-Metronic it is possible to separate, label, check and, if needed, to even select folding boxes of very different sizes on a complex system outside of the production line.
Just like a modular system, you can combine different labeling technologies and camera systems with the UDA-150S. Depending on the customer’s requirement, the inkjet, laser, hot-stamping module and/or thermal transfer printer can easily be integrated.
Fine-adjustable photo lenses scan the folding boxes in order to obtain the exact position for the marking. The reliable coding systems from KBA-Metronic for the printing of EAN or data matrix code, expiry date, batch number etc. on the folding boxes as well as the use of track & trace systems for product safety and traceability offer miscellaneous possibilities to meet the quality requirements on safe packaging.
The UDA 150-S already processes small and medium runs with material sizes from 30x60 mm to 300x400 mm in a cost-efficient and flexible way.
|
|
Our complete line of printer applicators can print and apply labels at any angle using tamp, tamp-blow, or air-blow technology.
All models are designed for rugged use and virtually maintenance-free operation and of course, are compatible with all O.E.M. print engines.
|
|
|
The cab Print and Apply Systems are the result of more than 30 years of product development and technical know-how. They are espcecially designed for fully-automated print and apply processes in production lines. Precise label positioning and a robust design make the cab products the choice for around th clock industrial labeling applications.
|
|
The Label-Aire Model 3138-N RFID Printer Applicator brings RFID technology to your print and apply operation and keeps you ahead of your competition.
The Model 3138-N RFID Printer Applicator delivers on its promise of accuracy, reliability, and ease of use. That translates into lower operating costs and increased productivity for your business.
The 3138-N RFID comes standard with such Label-Aire virtues as easier setup, troubleshooting, and change-over, and more reliable operation while allowing you to easily encode RFID tags.
The 3138-N RFID is based on Label-Aire's most advanced printer applicator, the 3138-N. The 3138-N RFID’s advanced features include automatic setup with multiple programmable label pages for easy change-overs to labels of different sizes, rate compensation for improved label placement accuracy, and advanced user-configurable I/O connectivity. All these handy features greatly simplify setup and change-overs. This unit's advanced RFID features include EPC, Class 0, Class 0+, Class 1, Gen 2 RFID tag encoding, fully integrated UHF/EPC print-and-apply technology, user friendly Label-Aire RFID tag formatting software, and an innovative Tag Rejecter mechanism. Like all Label-Aire printer applicators, the 3138-N RFID is compatible with any O.E.M. RFID printer on the market.
Put this most advanced RFID printer applicator to work for your company all day, every day. The Model 3138-N RFID Printer Applicator is built to meticulous quality standards and designed to withstand the most intense operation.
|
|
The Model 5300 Label Printer-Applicators
High-resolution printing and high-speed operation combined with a diverse selection of label application methods.
- Modular design provides six different application configurations
- Monitor operation via a web browser
- One-to-one media consumption reduces downtime
- Capable of interfacing with external PLCs
- Available with RFID capability
The Model 5300 system's print engines output labels up to seven inches wide and up to six inches long. To keep pace with high-volume, high-speed production lines, compatible print speeds vary from five to 16 ips.
|
|
Characteristic advantages
- Display
The display supports different languages, so the system is ideal for installations on multi-national basis. The movable display can be brought into each position – so that fits best to the angle of the machine within the production line. Messages are readable at any time.
- Print head
The user can easily change the print head without any problems – or tools. The pre-setting of the print head guaranties an excellent print quality.
- Standards
19 fonts and all standard barcodes are included in the standard functionality of the ALX 92x. A compact Flash Card can store additional fonts or logos.
- Sensor
It is easy to adjust the position of the label path sensor of the ALX 92x - without stopping the system. The selection adjustment shows the position of the sensor additionally. The user is enabled to place the sensor in the middle of the path according to the pattern of the labels.
- Dot-Check
The integrated dot-check gives a warning even if only one single dot is missing and avoids errors absolutely reliable.
- Automatic foil saving
The automatic foil saving function uses all non-printed larger areas, and guarantees that foil is used most efficiently
|
|
A new generation of quality and performance for label print/apply systems.
For the best of the best in label printer/applicators, Diagraph is proud to introduce the Platinum Series. Engineered for high-performance, high-speed, 24/7 operation in the most demanding conditions.
|
|

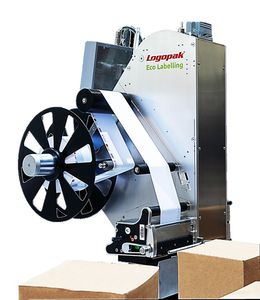

The M-Series range of print and apply labellers offers a fully modular solution to meet the many and varying needs of manufacturers today. Consisting of printers, applicators and accessories the standard configurations offer a solution for a vast range of print and apply requirements.
Enhanced throughput
- Seamless integration into production lines ensures line efficiency is maintained
- Labels can be applied to both moving and stationary products
Reduced errors
- The simple label selection for the M-Series ensures operator independence
- High resolution prinM-Series labelled boxes
ting of bar codes, text and graphics ensures supply chain compliance
Flexibility
- M-Series can apply a label with Blow, Tamp, Tamp-Blow or Wipe label application options, left and right hand variants to provide an optimal solution
- The unique design of tamp applicator pads enables a wide range of different labels to be applied using the same applicator pad
|
|
Weber provides a number of solutions that will help make certain you are ready to meet new and emerging radio frequency identification (RFID) labeling specifications.
Our special smart label printers and printer-applicators encode data on ultra-thin RFID transponders embedded in labels and tags, while simultaneously printing text, bar codes and graphics. We also offer a special RFID applicator that encodes, verifies and applies preprinted pressure-sensitive smart labels. Both the RFID printer-applicator and encoder-applicator include a special feature that rejects and recovers non-compliant smart labels prior to application. In addition, we offer smart labels for use in our own RFID encoder-printers, plus a range of pre-encoded labels and tags to satisfy associated identification applications.
The emergence of RFID mandates presents an exciting new opportunity to improve the way all of industry captures and uses product data throughout the supply chain. Weber is working very hard to ensure that our customers will have a dependable source on the leading edge of RFID development.
|
|
* Ij3000 XLS Controller :
The Ij3000 XLS Controller was designed and built to meet any demanding coding application. Diagraph has engineered the XLS Controller to exceed performance expectations. The XLS Controller seamlessly integrates Impulse Jet and Integrated Valve technology offering a networking function that delivers reliable, high quality printing to any automated production enviroment.
* Ij3000 ES Controller :
The Ij3000 ES Controller is a powerful, low-cost web-server based HMI features a color touchscreen display, drives Diagraph’s Integrated Valve or Impulse Jet printheads, and has a 100-base T Ethernet network port for web browser, network connectivity. Diagraph has created special package “Ij3000 ES kits” for dual head Integrated Valve 9 or 18 dot printhead applications and has special introductory offer. Interested parties should call 800-722-1125 for details.
* NEW! IV-18 Dot Printhead for IJ3000 Ink Jet System
Diagraph is pleased to introduce the IV18-Dot Printhead for the Ij3000 Integrated Valve Large Character Ink Jet System. Key Standard Features Include: Two-piece, die-cast aluminum housing, environmentally sealed printhead for harsh environments, robust metal housing over entire printhead, built-in LED display and membrane switch for: -->channel purge (one or all channels) -->electronic pulse width (dot size) adjustment -->pressure gauge, automatic first dot correction, overdrive protection, photocell mounting bracket holes, backwards compatibility with existing Ij3000 and Series 1 printheads. The IV-18 Dot Printhead is driven by Diagraph’s Ij3000 Ink Jet Printing System.
|
|
Semi-automatic labeling machines to apply self adhesive labels onto cylindrical items any kind. These machines, very multivalent, allow the labelling of bottles as well as jars, pots, tubes, cartridges, tin cans, however : a large range of products !
Also, these machines may integrate several options :
- For applications with diverse types of detection cells in order to position.
- the labels on the items to be labeled.
- To apply labels up to 30 cm high.
- To apply labels onto items that have prominences ( cans, caps on jars ).
- To apply labels onto cans with handle.
- To apply labels on light or small items
|
|
Semi-automatic labeling machines to apply self adhesive labels onto cylindrical items any kind. These machines, very multivalent, allow the labelling of bottles as well as jars, pots, tubes, cartridges, tin cans, however : a large range of products !
Also, these machines may integrate several options :
- For applications with diverse types of detection cells in order to position.
- the labels on the items to be labeled.
- To apply labels up to 30 cm high.
- To apply labels onto items that have prominences ( cans, caps on jars ).
- To apply labels onto cans with handle.
- To apply labels on light or small items
|
|
|
|
