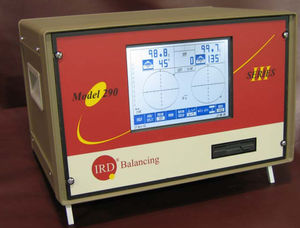

Every rotating component, be it a dental drill, a crankshaft or a turbine in a power station, needs to be balanced. Schenck RoTec offers a comprehensive range of products for balancing rotating and reciprocating components and subassemblies - ranging from light-weight miniature rotors weighing only a few grams to heavy-weight rotors such as a steam turbine rotor weighing 400 t .
Balancing is a critical step in the production process, and ensures the high quality of rotating components. This applies regardless of whether you are dealing with a one-off rotor in a repair shop or with large production volumes. Balancing will improve the quality and service life of your products, improve productivity and enhance your competitive position.
Schenck RoTec provides solutions for a wide range of industries, ranging from the automotive and electrical industries, the aeronautical and aerospace industries to turbomachinery construction and general mechanical engineering.
|
|
Advantages:
- Integrated overhead rotary transfer
- Machine base of mineral casting with good damping characteristics
- Automatic sequence, secured, controlled by Soft PLC
NC axes for all movements
- Integration with production lines
- Powerful PC based industrial measuring unit
- Photo based operating manual for conversion of machine
- Picture and text based fault diagnosis
- Teleservice for measuring and control system
|
|

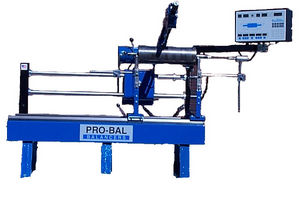

Hard-bearing Horizontal Balancing Machines
HM 6 - HM 60 | HM 7 - HM 70 | HM 8 - HM 80
Universal balancing machines series HM6-HM80 are conceived for precise balancing of both rigid and flexible rotors.
Typical applications are:
- Blowers and fans for a variety of industries
- High-speed and low-speed rollers for paper and thin sheet production
- Electrical short-circuit armatures and generators for the electrical industry
- Separators / centrifuges for water processing
Advantages
- Universally applicable through modular design
- Safe handling through economic design concept
- Full range of safety equipment for all protection classes
- Easy change-over to different rotors
|
|
Balancing Machine for Tools and Tool Holders
Tooldyne SV
Advantages:
- Improvement of machined surface quality and dimensional accuracy
- Reduction of vibration and noise
- Prevention of costly bearing damage
- In accordance with the terms and conditions of the spindle manufacturer’s warranty specifications
|
|
|
|
|
|
The wind of change for balancing - The new horizontal balancing machines for rotors between 5 and 50 kg
The benefits at a glance:
- Compact design
- Ergonomic operating concept
- Low space requirement
- Easy installation
PASIO 5 is ideally suited to extremely small work-pieces such as miniature armatures, miniature fans and complete assemblies. They are conceived for use in research and development, in batch production or in repair shops.
Change-over to new rotor types is straightforward and only requires a minimum of time. Max. rotor weight: 5 kg
Benefits:
- Easy set up
- Installation without foundations
- Highest measuring accuracy
- Quick change-over from workpiece to the next
- Suitable for magnetized rotors
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
The Pasio 50 enables accurate balancing of a wide range of rotors, for example cylindrical rotors with their own shaft journals or disc type rotors with intermediate shafts.
Max. rotor weight: 50 kg
Max. rotor diameter: 600 mm
Max. length: 1100 mm
Benefits:
- Easy installation
- One drive belt for all rotor diameters
- High performance drive for wide range of rotors
|
|
|
|
|
|
Features:
Multifunction and modular:
- Automatic wheel balancing on 1 or 2 planes.
- Manual pre-balance of wheel.
- Detection of the touch between wheel-workpiece and wheel-dresser.
- Pre, in and post-process size measurement.
Menu programmable.
Operator panel:
- Local or remote graphic display, equipped with RS232 interface for hard copy function.
- HMI Windows software package for PC-CNC terminal.
Interfaces:
- RS 232 serial interface for remote programming and data up/download.
- Programmable parallel interface for remote programming, data up/download and digital I/O expansion.
- Profibus DP
- Analogue interfaces for measurement signals.
Opto-insulated and protected digital interface
Analogue signals galvanically insulated
FFT vibrations analysis.
Programmable measurement data acquisitions and recording.
Advantages:
Meets all the applications suitable to:
-increase productivity
-ensure product quality
Protection of the investment.
Cost/performing in any application.
Easy integration in any production architecture.
Remote Assistance through tele-service.
Reliable in workshops.
Reduction of machine downtime thanks to failure prevention and diagnostic.
Allows Statistical Process Control.
|
|
Features:
Available in the following versions:
- Rack, half rack
- Shelf
- Remote panel
Digital I/O for the connection to the CNC
Unbalance measuring range from 0 to 200 µm
Maximum resolution 0.001 µm
2 balancing limits, each settable from 0.001 to 1 µm
Panel with waterproof keyboard.
Suitable for internal or external balancers with brush or no-contact collectors.
Advantages:
Price competitiveness.
Reliable in workshops.
Enhance the quality of the product.
Increase the productivity.
Suitable as a standalone unit or integrated in the CNC of the grinding machine.
|
|
|
|
|
|
Z5-TC: Belt drive machine for small rotors. The special design of the driving system enables the machine to be operated both with the belt placed on top of the rotor and with the belt fixed in position under the rotor. The machine base pl
Z100-TC: A belt drive machine with wrap-around belt and ZE instrument.
Z300-TCI: A belt drive machine with B11 instrumentation. The under slung belt drive allows spinning of rotors up to 400 mm diameter. Complete with drilling unit (option).
...
Z10000-TC: Belt drive balancing machine with pneumatic tensioning and (optional) device for run-out measuring (whip). B11 measuring instrument.
Z20000-G: End drive machine with variable speed D.C.S. motor (constant power). The machine shown is completed with motorized pedastal displacement (optional). B10 measuring instrument.
Z50000: End drive machine with variable speed D.C.S. motor (constant power). The machine shown is completed with pedastal displacement (optional) by servo-motor. B10 measuring instrument.
|
|
Features
- One or two planes balancing procedures developed according to the specifications of the toolholders suppliers.
- Balancing tolerances in accordance with the ISO 1940 specifications. - ISO Quality Grades: G1, G2.5, G6.3, and G16.
- User friendly PC-based operator’s graphic interface.
- Geometric and mass data of the toolholders inputted by the operator or self-acquired by the unit in learning mode.
Benefits
- Faster cutting speed for tools.
- Extended tool life.
- Prevention of spindle failure.
- Consistent production quality.
- Safe and silent operation.
- Easy integration in any networked productive architecture.
|
|
Tool Dynamic TD 2002 is a modular balancing system made by Haimer, specially designed for toolholders and grinding wheels. It makes balancing a child's play. It can be implemented fast, because of its easy handling.
Its costs are low and its measuring accuracy can not be topped. Take balancing from now on right into your own hands! Because: Quality wins!
For further information and machines see http://www.haimer.de/english/wucht.php
|
|
Features:
- Suitable for ISO, HSK, CAT, BT cones.
- Resolution: 0.1 g·mm
- Selection of the ISO balancing class together with the maximum permitted RPM
- User-friendly, step by step driven unbalance procedure.
- Rugged, ease to install and to use
Advantages:
- High Speed Machining (HSC)
- Better surface finishing.
- Longer life of the spindle and bearings of the spindle.
- Safe and silent operation.
- Wear and breakage prevention
|
|
Features:
Compact dimensions
High measuring precision.
High balancing precision.
Quick return of investment
Easy to use.
Advantages:
Highly skilled operator not required.
Quick return on investment.
High level of reliability.
|
|
V 500
VTB15: for tools and toolholders used with high-speed production machines, balancing on two planes.
V 50/100 TFM: MANUAL DRILLING - MILLING UNIT A rugged fabricated metal column supports the drilling/milling unit, consisting of a motor-driven vertically moving slide for setting up the work. The cutter spindle is controlled manually f
V 50/100 UFA: AUTOMATIC DRILLING MACHINE WITH CONTROLLED AXIS The unit is mounted on two slides with recirculating ball feed screws: one vertical slide with stroke 230 mm and one horizontal slide with stroke 300 mm; both slides are powered by
V 50/100 UF-P: AUTOMATIC DRILLING MACHINE WITH PNEUMATIC AXIS Electro-pneumatic drilling unit in which spindle feed is pneumatic while the rotary movement is driven by a three-phase motor (speed range 280-3400) Spindle stroke is 125 mm
|
|
|
The latest member of the PBS-4100 family, the PBS-4100 PLUS is all new – smaller, lighter and easy to use. In minutes, you’ll know if you have a real vibration problem or not. Intelligent diagnostics helps you find problems quickly. The new standard of the aviation industry, the PBS-4100 PLUS is also a perfect fit for industrial applications. With two color touch screens and an intuitive interface, the PBS-4100 PLUS breaks new ground in engine and machinery testing.
|
|
|
|
|
|
In our offer we have 4 balancing machines for turbochargers:
CMT 47tr - Base 'rotor balancing' machines in turbochargers balancing applied in the first stage of car turbine regeneration. On thios machine we balancing shaft and rotors of all types of car turbochargers in two planes, after dissembling turbine.
CMT 48tr - The CMT 48tr balancers called 'core' balancing machine useful in the next stage of turbine regeneration, after the bearing rings and sealing are exchanged , and after it is assembled again in the housing. Machine is balancing assebled turbochargers in two corrective planes at speed of about 30 000 rev./min. The performance conditions are similiar to engine conditions.
CMT 48ntr - One-plane CMT48ntr 'core' VSR balancing machine with max. balanced shaft rotations speed up to 220.000 rpm
Balancing is realized in the factory turbine core assembly. Balancing is realized on conditions similar to the conditions of car engine, with oil with given temperature and preassure.
Biggest advantage of this machine are semi universal adpaters based on adjustable sleeves and heads. With machine you recieve adapter set which allow to balance about 50 types of turbochargers!!!!
CMT 48 Twin - "Core" VSR type machine. This machine is the best practical and economical solution which realizes all tasks for turbine 'post-balancing'. On the two positions realizes tasks of the two balancers:
1) Two-plane CMT48tr 'core' balancing machine with max. balanced shaft rotations speed up to 30.000 rpm
2) One-plane CMT48ntr 'core' VSR balancing machine with max. balanced shaft rotations speed up to 220.000 rpm
|
|
|
|
|
|
The balancing machine type PCXVT-CW is a vertical balancing machine for dynamic balancing of compressor wheels in 2 measuring planes.
The machine is designed for quality control, development and workshop (repairing) applications.
With an easy upgrading it is also possible to use the machine in a fully-automatic production cell.
* Features
o work piece adapting by a high-precision hard-metal pin, designed as an air bearing
o 2-plane measuring station, force-measuring
o measuring platform with hard bearing technology, round bar springs and piezoceramic measuring sensors
o two different measuring platforms R11 and R15 for different rotor sizes
o measuring on controlled air bearing
o quick PID-controller for air drive
o speed sensing by light sensor, integrated in ring nozzle
o easy and quick tool changing
o easy operating measuring software
o customer specified hardware and software features available
o option: automatic loading and unloading device
o option: automatic indexing to position
* Applications
o balancing of compressor wheels in 2 planes
o manual loading and unloading by operator
o optional: integration in balancing cell
|
|
The horizontal, hard-bearing (force measuring) balancing machine PTB-GW is specially designed for balancing grinding rolls, e.g. in the gear or transmission manufacturing.
* Features
o Special solution for the balancing of grinding wheels
o Software for unbalance correction with two or three sliding weights in one or two balancing planes
o Compact workplace
o Can also be used to balance general rotors within the specified dimensions
* Applications
o Balancing and checking the unbalance of grinding rolls
o Grinding wheel balancing on an auxiliary shaft
o Balancing of spindle shafts, armatures, etc.
o Balancing in manufacturing, tool assembly and tool maintenance
o Unbalance check in incoming goods department
|
|
CMT - 25 H universal balancing machine with ROTORTEST R06 measurement module
1.Subject of the offer: two plans balancing machine CMT - 25 H about the base axis of balancing. This device for weighing is being offered in the variant with the measuring ROTORTEST 600 system is equipped with color 15%u201D LCD for result visualization, keyboard for control. Providing the measuring system software is accessible in the English.
2. Technical specification:
impeller weight from 0,5 kg to 25 kg
maximum impeller diameter 410 mm
diameter of tenons of the rotor 4 - 40 mm
distance between supports 55 %u2013 650 mm
Number of planes of the correction 2
maximum readout sensitivity 0.5 gmm for the lightest rotor
Mass 250 kg
Dimensions 1500 x 1050 x 1300 mm
|
|
Universal Balancing Machines type UHK feature piezo-electrical load cells enabling a direct, non-displacement measurement of the centrifugal force (unbalance). Through their standardised design they can be configured according to the customer specifications regarding bearing pedestal distance, rotor diameter etc.
* Features
o Piezoelectric force transducers
o Easy operation
o Protective devices according to ISO 7475 Class A through D
* Applications
o Balancing of any shaft type rotors
o In production and receiving inspection
|
|
|
|
|
|
CIMAT Ltd. manufactures propshaft balancing machines for two main destinations:
- for the companies repairing transmission shafts,
- for manufacturers of transmission shafts.
All balancing machines for propeller/drive shafts have the following characteristics:
- Balancing may be performed in two, three and four corrective planes at the same time
- they have low and solid terminal supports
- the central supports are adjusted to the universal devices for fastening of the shaft
- spindles are assembled in the terminal supports
- additionally, the right support has an adjustable head they enable the process of rotating shaft with high rotation speeds
- they are equipped with mechanism that protect the shaft from falling out
- bed lenght up to 6 m
In order to facilitate the service, they can be equipped with:
-servo drives to enable the positioning of the shaft for welding the corrective plate on each of the supports
- pneumatic system for the automatic fastening of the shaft in the spindle, blocking of the right support, closing and opening of the devices protecting the shaft from falling out, opening and closing of the safety cover
- depending on the order, we assemble welders on them.
The software based on special version of Windows XP operating system as well which allows to read balancing results in form of the length of the corrective plate.
We are making special mechanical protections as well.
|
|
|
|
|
|
Profi Tool Balancers PTB 7.2 and PTB 21.2 are solutions from Hofmann for balancing of tools or tool holders with standard conical spindle interfaces (SK, HSK, Capto etc.). The tools are precision-clamped in the spindle of the vertical hard-bearing (force measuring) balancing machines using suitable adapters. The available unbalance measuring systems convert the measured unbalance into all common practical units for unbalance compensation in one or two planes. In addition the unbalance measuring system MC 10 of the PTB 31.2 supports calculation of the permissible residual unbalance according to DIN 69888.
* Features
o Precision spindle for highest accuracy of measurement and repeatability
o Standard high-precision chucks for conical spindle interfaces (SK, HSK, Capto etc.)
o Hard-bearing (force measuring) balancing machine with permanent calibration
o Measuring system supports all common methods of unbalance measuring system
o Line laser module for precise marking of the correction angle position
o Calculation of residual unbalance according to DIN 69888 (option MC 10 PTB)
* Applications
o Balancing of tools and tool holders
o Balancing in tool holder manufacturing
o Balancing in tool maintenance shop
o Balancing of tools per DIN 69888
o Balancing of rotors without their own shaft journal , e.g. grinding wheels, blower wheels etc.
|
|
The type CVW-B balancing machine is a single machine designed for deployment in the manufacturing of torque converter turbine stators. Mass removal can be performed by adding up to three drill units. This machine is ergonomically designed for loading by its operator. Later upgrading to automation by an internal loading system (rotary index table), a robot or a loading gantry only requires minimal modifications of the safety enclosure.
* Features
o Modular base concept
o Mass compensation through horizontal drilling
o Expandable by one (1) to three (3) drilling units
o Siemens PLC standard
o Predefined robot interface
* Applications
o Volume production of torque converter turbine stators manually or integrated into a manufacturing cell
o Unbalance correction in polar or component format.
|
|
|
|
|
|
CIMAT Ltd. offers the universal balancers manufactured in series. Our balancers are richly equipped already in their basic version, either with the ancillary equipment or the software. They are designed in such a way that it is possible to purchase the remaining equipment such as additional drives and lengthening pieces for the beds in the future.
The balancers may be divided into two basic types:
- horizontal ones, on which the rotor is placed in a horizontal position,
- vertical ones, in which a vertical spindle with a holder is mounted.
All the balancers are equipped with the most modern measuring module ROTORTEST 505 based on special version of Windows XP operating system. They have self-learning calibration in standard as well. Their measurements of unbalance are precise and user-friendly.
Our production offer is practically unlimited. We are able to fully satisfy the needs of the Client. .
All the Clients, to whom we deliver a new or a used machine, are fully served:
- we adjust the machine to the technological requirements of the Client,
- we start and implement the machine to the production,
- we modernize old balancing machines of all producers,
- we ensure quick guarantee and after guarantee service.
Just write us rotor technical specificaton such as :
- what details you would like to balance
- max. lenght of rotor,
- max. diameter of rotor,
- max. weight o rotor,
and we will prepare for you the best individual offer !
|
|
|
|
|
|
CIMAT Ltd. offers the vertical axis balancing machines. Our vertical balancing machine are richly equipped already in their basic version with all additional equipment and software.
All the balancing machines are equipped with the most modern measuring module - ROTORTEST 505 or 605. They have self-learning calibration in standard. Their measurements of unbalance are precise and user-friendly. Our production offer is practically unlimited. We are able to fully satisfy the needs of the Client.
Machines can be equipped in to driling, milinig or grinding mass correction equipment.
All the Clients, to whom we deliver a new or a used machine, are fully served:
- we adjust the machine to the technological requirements of the Client,
- we starting-up and implementing the machine to the production,
- we modernize olfd balancing machines,
- we ensure quick guarantee and after-guarantee service.
Just write us rotor technical specificaton such as :
- what details you would like to balance
- max. lenght of rotor,
- max. diameter of rotor,
- max. weight o rotor,
and we will prepare for you the best individual offer !
|
|

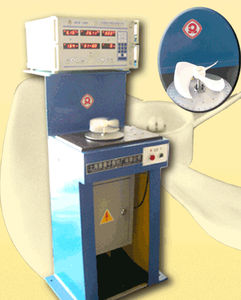

UVK vertical balancing machines are suitable for measuring rotors without journals in 1 or 2 measuring planes. Different correction units are available to remove the unbalance.
* Features
o Short measuring time
o Simple mechanical design
o Ergonomic hinged or sliding guard
o Small PLC standard
o Optional correction units e.g.: Axial or radial drilling, riveting etc.
* Applications
o Piece part manufacturing, contract manufacturing
o Small quantity production
|
|
|
|
|
|
Fully automatic balancing machine with milling drilling reconciliation
CMT V82F/B
Milling unit in three directions in NUMERICAL CONTROL steered axle equipped
Fully automatic self calibration
Fully automatic self balancing
Rotor type recognition (option)
Fully automatic recognition of the rotor dimensions (option)
simple treatment
Simple structure
Milling variants (at the top side and at the external diameter):
Dip-mill
Extent-mill
Routing
End milling
Drilling variants:
Bore at the top side
Bore at the external diameter
Bore to the Untenseite
Range of application:
Fairs and milling reconciliation of the imbalance of disk-shaped rotors without own axle how: Brake disks, brake drums, flywheels etc.
Technical data:
Permissible masses of the balanced runners:
minimum: 1 kg
maximally: 30 kg
Number of correction levels:
Number of revolutions of the balanced disk - stepless between 300 and 1800 1/min
Diameter max.: 450 mm
Rotor height max.: 100 mm
Imbalance reduction relationship (URV): up to 95%
Spindelantriebe: Induction motor, couples 2.2 KW with inverter
USB interface
Execution of the electrical connection: 400 V/50 cycles per second; Achievement 2,5 KW per axle (special equipments on request), torque 9,6 Nm
Machine housing extents: Width: 1050x depth: 1900x height: 1800 mm
Weight: approx. 3500 kg
Lacquer finish: Machine housing: Ral 7022 umbragrau, switchgear cabinet ral 7035 light-grey (special equipments on request)
Air pressure: 6 MPa
Scope of supply:
Balancing machine
Admission
Start-up
Training
24-Monatliche warranty
|
|
|
|
|
|
Strength-measuring horizontal balancing machine
Series: CMT 20000H2K
Technical data:
Drive: Kardanantrieb,
permissible masses the balanced rotor
minimum: 200 kg
maximally: 20000 kg
Number of correction levels: three
Number of calibration levels: two
Automatic number of revolutions min.: from 120 to 600 1/min
Rotor diameter max.: 2500 mm
Max. distance between the supporting rollers in both store-change: 11500 mm,
Min. behavior between the supporting rollers: 450 mm,
Permissible diameter of the rotor taps of heaved rotor: from 80 mm to 400 mm,
Imbalance reduction relationship (URV): up to 95%,
Drives: Induction motor: 37 KW, couples with inverter: 45 KW
Balance procedure: provided provided with an inserted computer printer or outside of the machine - with a network or a USB interface,
Execution of the electrical connection: 400 V/50 cycles per second; Achievement 45 KW,
Maschinenbett: Width: 2300 mm x height: 425 mm x length: 16000 mm,
Lacquer finish: Machine housing: Ral 7022 umbragrau, switchgear cabinet ral 7035 light-grey (special equipments on request)
Scope of supply
Balancing machine
Start-up at the customer
Training
24-Monatliche warranty
|
|
|
With almost 40 years experience, we provide successful balancing solutions for all rotors that need to be balanced in the aerospace industry such as gyroscopes, aircraft engines, helicopter engines, and many other associated accessories.
|
|
|
|
|
|
AUTOMATIC ARMATURE BALANCING MACHINE
1. SALIENT FEATURES
1.1. Completely automatic operation. Operator simply has to place the jobs at the input station and remove them from the output station. The OK jobs and the OUT OF TOLERANCE jobs are separately stacked.
1.2. 4 cutters are provided at the correction station to simultaneously mill on LHS and RHS. This ensures fast correction.
1.3 Correction in 90o components is ideal for jobs having high initial unbalance as compared to polar corrections. Higher depth of milling means more unbalance can be corrected. Secondly, the 90o correction method means that second run balancing is possible.
1.4. Milling system does out to in milling ensuring that the stack is not damaged during milling due to flaring. It also means milling can be done at the ends which reduces the total unbalance correction required.
1.5. An automatic linear transfer system ensures minimum space for operator movement. A rotary transfer system is provided when space limitations are not there.
1.6. Zero clearance 'slides' and electronic depth measuring with resolution of 0.05mm helps achieve good correction ratio.
|
|
Innovations in balance measurement, corrections, transfer, and data collection systems greatly enhance machine performance. An example of this is Hines patented A.C.E. (Automatic Correction Enhancement). With ACE turned on, the computer monitors the initial and final unbalance, then makes adjustments to the correction routine. Just leave the machine running and performance is constantly optimized!
Excellent correction ratios were not enough for our customers. To make this exceptional performance easier to quantify, we developed an internal statistics package to monitor and analyze the balancing process. Turn the internal statistics package on and you will have continuous data collection.
|
|
|
|
