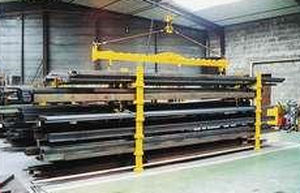

MINI-JUMBO / JUMBO
A space-saving, single/double-sided pull-out rack for the storage of all kind of products, which must be accessible quickly and easily. The fully retractable support arms, which can be extended using a manually operated handle, are supported on hardened steel rollers, and are equipped with permanently lubricated "sealed-for-life" needle bearings. Materials of a short length, and materials which easily deflect, may be stored, if required, in storage trays. The arms are suitable for variable compartment divisions through adjustable pins.
|
|
-Quick access to bar stock, pallets, cassettes
-Crane operating elements guarantee easy and safe operation
-Different shelf dividers ensure flexibility
-Optional individual bar removal and supply to a saw roller conveyor possible
-Usable load up to 3 tons
-No „overhead handling"
|
|

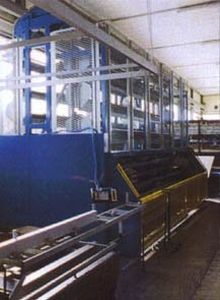

VE.MAG ROLLING WAREHOUSE
The solution for the stocking of long materials and accesories
VEMAG Rolling Automatic Warehouses are a good solution for the stocking of long materials, such as aluminium, PVC or steel sections and they are the perfect containers for fabric rolls, accessories and spare parts.
The VEMAG Rolling Automatic Warehouse can be customised according to customers’ needs. You can run the warehouse by means of our specific software, even from different host positions on the network.
|
|

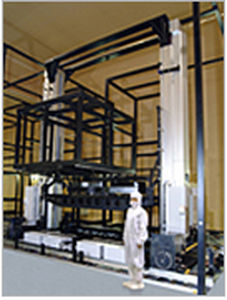

Typ:Vertical Carousel
Height of vertical carousel: 5700 mm
Width of vertical carousel: 7200 mm
Depth of vertical carousel: 1500 mm
Carriers: 16
Load per carrier: 16000 daN
Carrier load height: 300 mm
Carrier load width: 6150 mm
Carrier load depth: 400 mm
Description: No description is available at this time
|
|
Floway® track
Roller tracks from Interroll have what it takes to convey featherweights as well as heavy weights, reliably and qui etly from the input end to various order-picking stations – year in, year out, maintenance free. This combination of features is truly unique. The staggered arrange ment of the components increas es the load capacity of our roller tracks even further.
This unique track is the only one in the world that incorporates qualities from all the other tracks on the market today. Also it is the only track
designed not to open; even under heavy loads.
- Floway® track cannot open under heavy loads.
- High capacity rollers made from High Density polyethylene.
- Electro-zinc plated profile that will not distort under a load.
- Bearing, rotates on steel stub axle.
- Operating temperature: –31°F to 104°F/–35°C to 40°C.
-Max. load per bearing, static: 26 lbs / 12 daN, dynamic (moving 1.6 f/s / 0.5 m/s): 18 lbs / 8 daN.
|
|
|
|
