Vertical automatic storage system MAXI L | Automated Vertical Storage System for Long and Heavy goods

for barsfor profilesfor molds

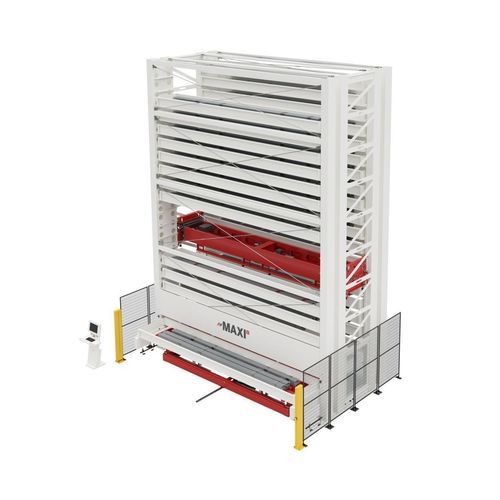

MAXI L is ICAM's automated vertical storage system designed for high-density storage and safe handling of long, heavy and bulky materials. It maximises storage capacity by building upward rather than outward, keeping the floor footprint to a minimum — with drawers up to 7,000 mm in length and a load capacity of up to 3,000 kg per drawer.

Outdoor installation is a strategic advantage: it frees up valuable indoor floor space for new production lines or layout reorganisation, and allows materials to be loaded from outside and made immediately available to operators inside — eliminating long material routes between exterior and interior with a direct impact on safety and operational efficiency.

Key specifications:

• Drawers available in multiple lengths and depths
• Load capacity per drawer: 1,000 kg or 3,000 kg
• Fixed or motorized shuttle loading and unloading stations — shuttle unit shareable across multiple systems to optimise overall investment
• Scalable in height and expandable laterally
• Suitable for indoor or outdoor installation, across multiple levels

Goods-to-person
The drawer travels to the operator at the access station — not the other way around. The motorized shuttle handles lifting and extraction automatically, eliminating manual handling of heavy loads and ensuring ergonomic, safe operation throughout the shift.

Installation flexibility
MAXI L adapts to existing industrial environments: suitable for indoor or outdoor installation, across multiple levels, with fixed or motorized shuttle access stations shareable across multiple units to optimise investment.

Strengths

• High-density: builds upward to maximise storage capacity while minimising floor footprint
• Versatile: drawers available in multiple lengths and depths with internal dividers; load capacity up to 3,000 kg per drawer
• Secure: load protection and stability during storage and handling; access control via RFID/magnetic badge or operator credentials on touch console
• Scalable: structure expandable in height and laterally to support operational growth
• Connected: integrated with factory systems via ICON — WMS, ERP, real-time inventory monitoring and configurable authorisation profiles
• Line-side ready: deployable alongside machine tools and production lines, with servo-assisted handling integration to facilitate material pick-up and deposit without manual handling

Software: ICON
MAXI L is managed by ICON, ICAM's web-based software platform. Multilingual and multi-machine, ICON provides real-time inventory monitoring, automated stock control, configurable authorisation profiles and integration interfaces for WMS and ERP systems.

Typical applications

• Automated storage of long and heavy materials in production and logistics environments
• Work-in-progress buffer for machine tool feeding (laser cutting, punching, etc.)
• Storage of components for windows, doors, profiles and specialised long parts
• Environments requiring protection from physical damage, environmental exposure or unauthorised access

Managed items
Bars & profiles • Tubes and pipes (round, square, hexagonal) • Bundles of long materials • Baskets & blanks • Dies & tooling • Semi-finished parts

Industries
Windows & Doors • Metalworking & Mechanical Engineering • Automotive • Defence & Aviation • Distribution & Logistics • Packaging & Flexographic Printing • Construction & Building Materials
