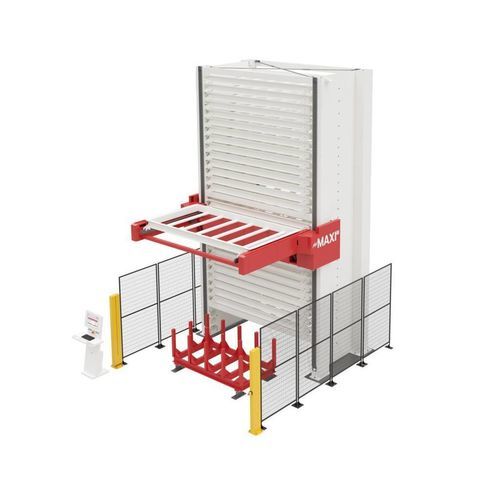

Vertical automated warehouse MAXI T

palletfor platesfor warehouse

Presentation
MAXI T is a vertical automated tower storage system designed for intensive storage and safe handling of panels, sheets and bulky materials. Configurable as a single or opposing double tower, its vertical layout maximizes use of height while minimizing floor footprint. Ideal for secure, orderly and efficient storage of flat and bulky goods.

Main advantages

• Large trays/drawers with capacity up to 3,000 kg for handling heavy loads and flat materials without deformation.
• Front bay with dedicated rack to facilitate and secure picking operations.
• Modular configuration: single tower or opposing double tower; height expandable with incremental modules.
• Suitable for indoor and outdoor installation, protecting stored materials while maintaining controlled access.
• Front picking optimized and direct integration with forklifts, overhead cranes, lifts and vacuum lifters for efficient handling.

Applications and handled materials

• Panels of any material
• Sheets and plates
• Pallets and palletized goods
• Bulky and high-volume materials

How it works

• 1. OPERATOR LOGIN: access via badge reading (optional RFID or magnetic) or username/password entry on the touchscreen console located near the pick/place bay.
• 2. SEARCH AND SELECT ITEMS or process a precompiled pick list.
• 3. TRAY/DRAWER ARRIVAL AT BAY: the drawer is positioned at the bay and held stable by a dedicated rack to facilitate subsequent operations.
• 4. PICK OR DEPOSIT OPERATION by the operator, integrable with lifting and gripping systems (forklifts, overhead cranes, vacuum lifters, etc.).
• 5. OPERATION CONFIRMATION: verification and optional recording of the performed operation.
• 6. OPERATOR LOGOUT at the end of activity.

Management software
ICON is the web-based software that controls MAXI T: internally developed, multi-language and multi-machine, with broad integration capabilities to major WMS and ERP systems. It provides intelligent stock management, automatic inventory, user authorization assignment and optimized routing for fast response times.

Operational and functional features

• High-capacity trays (up to 3,000 kg) and configurable sizes according to requirements.
• Front bay with dedicated rack for controlled and safe picking.
• Modular structure expandable in height with single or opposing double tower options.
• Integration with lifting and handling equipment (forklifts, overhead cranes, lifts, vacuum systems).
• Indoor and outdoor operation, protecting stored surfaces from external agents.
• Operator interface: touchscreen console; intuitive GUI, Windows-based.
• Advanced inventory management, stock monitoring and multiple material handling strategies (customizable storage/picking logic).
• User-specific authorization assignment and access control via badge/RFID.

Optional equipment

• Motorized shuttle for automated internal transfer.
• RFID badge reader for operator identification and authorization tracking.
• Insulated panels and other dedicated solutions for sensitive materials or specific protection needs.

Technical characteristics / specifications

• Type: vertical automated tower storage for panels, sheets and bulky materials.
• Configuration: single tower or opposing double tower; modular structure expandable in height.
• Tray capacity: up to 3,000 kg (depending on tray configuration).
• Access: front bay with dedicated rack for safe picking.
• Interfaces: integration with forklifts, overhead cranes, vacuum systems and major WMS/ERP.
• Operator control: touchscreen console; badge/RFID option for login and authorizations.
• Software: ICON – web-based, multi-language, multi-machine; inventory management and route optimization.
• Applications: panels, sheets, plates, pallets, high-volume materials; suitable for industrial indoor and outdoor applications.
• Picking features: facilitated front picking, pick lists and guided operations.
