- Kits available for most popular thermal transfer/direct thermal printer models
- Traditional Analysis
- ANSI Method Verification
- Data match compatibility
- Increment/Decrement capability
- Programmable outputs and serial port for system operation
- Download language
- High-speed or conveyor applications
- Ladder and Picket Fence Codes
The SV Series of RJS Scanner/Verifiers provides both fixed position scanning and high-speed on-line ANSI method verification of linear bar codes. The SV Series assures that bar code print quality is at an acceptable level and reports practically every bar code quality and data parameter known. It offers a turnkey method of monitoring your print process for errors by checking for burned out pixels, ribbon wrinkle, and clogged inkjet nozzles.
Installed on a thermal printer or using the SV with a conveyor, print and apply system, or ink jet direct mark, the verifier reduces system downtime and saves material costs. Once the source of the problem is found, it can be corrected before non-readable bar codes are printed and material is wasted.
The SV Series communicates via a serial RS 232 port. RJS ScanVision, a PC-based software package (no charge) is used for set-up and monitoring. The SV Series also incorporates SV download language for setup and interface via a host computer or PLC.
Five hardware outputs are included through an I/O-Power port for logic and control functions such as No Read, Poor Quality, and Good Quality Status.
|
|
Symbol LS7708 General Purpose Presentation Scanner
As every retailer knows, time is money, especially at customer check-out. The Symbol LS7708 horizontal presentation scanner provides quick, accurate scanning with minimum effort and maximum productivity.
Available for presentation and swipe scanning, the Symbol LS7708 combines the ease of hands-free and the versatility of handheld scanning. Its easy-to-use design, large scanning window and intuitive operation make check-out faster and more efficient, allowing employees to focus on customer service. Designed to stand up to the toughest and busiest environments, the Symbol LS7708 provides a cost-effective solution for medium- to high-volume retailers.
|
|
NLV1001
The NLV1001 is designed to be an easily integrated fixed position scanner. This compact yet rugged scanner is ideal for applications that require a high performance, aggressive laser scanner with the ability to fit into small places.
This reliable fixed position scanner employs an aggressive laser scan engine that reads at a rate of 100 scans per second. The integrated auto-trigger mode enables hands-free operation. The NLV1001 offers a wide variety of configurable options for easy integration in your business process.
The NLV1001 is equipped with a compact ABS housing with 2 different mounting options. This stationary scanner is available with an RS232, USB (HID/VCP) and Keyboard Wedge interface, to fit any design and implementation requirement.
|
|
Intermec's family of handheld scanners addresses the needs of users in virtually every scanning environment. From handheld scanners or decoders to integrated scan engines, Intermec has the right scanner for any application.
Light Industrial:
The convenience of scanning automation, with features you need, at the right price.
Rugged:
Feature-rich scanning for your heavy duty industrial environments.
|
|
OPL7734
The OPL7734 handheld barcode scanner features IEEE 802.15.4 based wireless connectivity with the ability to connect multiple scanners through one gateway. The scanner operates wireless up to 30 meters.
This efficient device with comfortable grip is ergonomically shaped. The OPL7734 is sleek and lightweight, withstanding drops of 1.5 meter onto concrete.
The Opticon implementation of the IEEE 802.15.4 protocol provides 1 to n communication. In this network, numerous power-saving scanners can communicate to one controller. To complete the kit, Opticon developed the controller, a cradle for data communication and charging, supporting a RS232 and USB connection.
|
|
CribMaster Mobile PC's / Bar-Code Scanners
CribMaster Mobile PC's / bar-code scanners come complete with both CM Radio and CM Scan software licenses and a support agreement which means a replacement is provided if repairs are needed. Other accessories are provided depending on the scanner you choose. These scanners are the most durable scanners available and are perfect for most industrial applications. These scanners are available with and without a pistol grip and allow CribMaster users to:
Bar Code or Key Enter Data
Issue and Receive Items
Return Used Items
Cycle Count
Quantity Adjustments
Assemble Kits
Replenish Kits
Transfer
Relocate
Log labor time against work orders
Communicate Real Time with CribMaster
Communicate in Batch Mode
Expand Coverage and Range as Needed
|
|
Stationary and mobile barcode readers
Barcode technology is a tried and tested in application and low in cost. Even assignments involving high-speed operations can be solved without problems using barcode technology, so permitting for instance short throughfeed times in automatic warehouses. Leuze electronic offers a broad-based and innovative product portfolio of readers fitted with convenient facility for connection to all customarily used international interfaces.
|
|
BCA110
Reticle Barcode Reader
The BCA110 Barcode Scanner quickly and reliably identifies barcodes on reticles using incident light.
Reticles are insolation masks made of glass which are needed for the production of microchips. The BCA110 is designed to confidently read all types of code on a broad variety of reticles, even multipart codes. The BCA110 is able to read codes on moving reticles. Optional the is a backlight version available for PSM and APSM reticles.
|
|
The MS-860 is adaptable to a wide variety of bar code applications across multiple industries with operators of varying experience levels. Push-button calibration and a full feature set enable you to quickly and easily configure the MS-860, which provides easy scanning of both linear and stacked bar codes.
- Autocalibration
- High scan speed & long read range
- Real-time feedback
- Intelligent raster
- Bar code programming
|
|
SICK barcode scanners speed up the logistics and automation. Excellent reading performance ensures the process flow even when the barcodes are of poor quality or damaged. The high scanning frequency allows high process speeds. Easy-to-use networking and first-rate user comfort also benefit the company. The compact connection systems save space and costs.
The SICK barcode product range provides the correct solution for every task.
|
|
|
|
|
|
Model 20 Laser Bar Code Scanner
Typical Applications Include:
- Automated and manual medical specimen tracking
- Package content verification
- Automated document handling
- Bar code verification during the printing and binding process
Outstanding Features:
- Low cost
- Optical decoding and I/O features to accommodate a wide variety of scanning applications
- Windows-based configuration software helps get your scanner on line in a hurry
- Small size and single power source enable easy integration into any fixed position bar code scanning application
The Model 20 Series II bar code scanner's combination of die cast zinc-aluminum endcaps and an extruded body yields a strong enclosure for applications requiring durability. The three point mounting feature on the base and the side is incorporated in the product to create repeatable mounting in any application. Optional configurations provide high density, long range or high speed capabilities.
The Model 20II's state-of-the-art scanning optics are designed to take the guesswork out of fixed position scanning applications. The unit's flexibility and performance allow it to read the most commonly used bar code densities at predefined mounting distances.
The Model 20II uses an advanced RISC microprocessor to decode scanned data at very high rates and perform various application functions. The standard configuration provides 13 code types with autodiscrimination of eight bar code symbologies at once. Two parallel outputs selectable for valid and non-valid codes provide external signals to operate small relays.
|
|
|

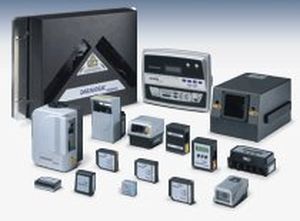

Datalogic provides the widest range of fixed position bar code readers for the most evolved users, as well as complete automatic identification systems, including reading stations, decoding units, data collection and interfacing systems. All Datalogic devices have been designed to assure the highest reliability under the most severe industrial working conditions, and include extremely compact readers and long range omni-directional scanners.
|
|
|
|
|
|
MS-Q Quadrus® Handled Imager
The MS-Q Quadrus Imagers are optimized to read bar codes and 2D symbols that use direct part mark (DPM) methods. It is the most aggressive handled imager available for decoding symbols on low contrast substrates such as metal, plastic, rubber, and glass with marking methods such as dot peen and laser/chemical etch.
Optical Options:
- The high resolution version is custom designed to optimize resolution for reading small 2D symbols in direct part mark applications
- The standard resolution version is suitable for reading all printed bar code methods plus many applications with direct marked symbols.
Applications:
Automotive, aerospace and the defense industries are actively tracing all parts with bar codes or 2D symbols. The most common practices are to permanently imprint a Data Matrix or bar code symbols directly into the metal component surfaces.
System Integration:
All MS-Q imagers are available in 3 configurations options that provide effortless connectivity:
Batch: A wireless way to collect thousands of decoded symbols for later download, capable of performing from a single charge and buffer a minimum of 1MB of data in non-volatile memory.
Cabled: Cabled units can be connected two ways: USB and RS-232
Bluetooth: Wireless data transmission using Bluetooth%u2122 class 1 radio with a 328' (100 m) operation range.
Symbologies:
- Data Matrix (ECC 0-200)
- RSS Family
- PDF417
- Standard linear bar codes
|
|
Portable Hand Held Scanners for the identification of barcodes are used especially where objects or products are handled manually while becoming identified.
Of course the Hand Held Scanners of SICK are equipped with different interfaces to connect the scanners with various peripheral devices such as PC Computers, Terminals, EDP Systems, mobile
data collection terminals or point of sales cash registers.
SICK is offering appropriate Hand Held Barcode Scanners for the identification of linear or stacked barcodes as well as for the increasing use of the innovative Matrix Code.
|
|
|
The GT-10 scanner range takes maximum advantage of its performance features: versatility, long life and user friendliness.
|
|
8500 Series Bar Code Scanner
- Extended range scanning from 5 inches up to 45 feet.
- Easily reads damaged or poorly printed barcodes (fuzzy logic technology).
- Industrial ergonomics including IP65, 6.5 ft drop test, & -30°C operating temp.
|
|
Outstanding Features:
- Linear and raster scanning are both supported and can be adjusted online
- Automatic focus reduces setup time and optimizes scanner for a given installation
- Detachable wiring base simplifies installation; reader plugs into a connector on the base
- Integrated DeviceNet, DF1 and DH-485 communication protocols mean no costly interface drivers
|
|
The QC800 enables portable or desktop verification for simple linear screening to complete ISO/IEC compliance.
- User-Friendly Interface: Menu-driven for easy use and command codes for easy programming.
- Instant Test Results: Intuitive LCD display and LEDs show feedback immediately.
- Interchangeable Optical Input Devices: Mouse wand or pen wand for complete ISO/IEC compliance.
- Portable: Battery operated.
- Optional QCViewer II Software: Provides additional flexibility in result storage and hardcopy output
|
|
Barcode Scanner Sweep Raster Scanner
Those oscillating mirror scanner are suitable for scanning surface areas. The adjustable path-folding angle of the oscillating mirror allows for ideal adaptation to your application.
The following code types can be processed:
code 39, interleaved 2/5, code 128, Codabar, UPC/EAN, PDF417, code 93, AIAG, UCC/EAN-128, RSS, Micro PDF, Pharmacode, Composite.
Barcode Scanner Line- and Raster Scanner
Those barcode scanner are suitable for reading very high density barcodes. An auto-calibration mode can be started with the Teach-In key. The scanner automatically adapts the barcode type, the sample rate and the scanning width to the respective application in this operating mode. Thanks to its compact design, the scanner requires only minimal installation space.
Readable code types:
code 39, code 93, code 128, Codabar, interleaved 2/5, Pharmacode and UPC/EAN
|
|
This wenglor handheld scanner is suitable for mobile use with needle printed, laser printed and etched 1D and 2D codes. Its large reading distance assures flexible use.
Readable code types: data matrix ECC 0...200, maxi code, QR-code, Aztec code, PDF 417, UCC composite, micro PDF417, code 39, code 128, interleaved 2/5, UPC/EAN, Codabar, Codablock F, Go Code, PLANET, code 93, RSS, PostNet, KIXCode.
|
|
The MS-890 is a heavy duty scanner with the flexibility to solve a multitude of applications under a variety of factory conditions. The extended read range and intelligent sweeping raster provide robust reading of both linear bar codes and stacked symbologies.
Versatility and rugged design make the MS-890 an ideal scanner for industrial applications.
- Long read range
- Visible indicators
- Optional wiring box
- Intelligent raster
- Autocalibration
- Bar code programming
|
|
Sensors for reading 1D and 2D codes
Independent of the orientation and the number of codes, the high-performance algorithms automatically decode 1D or 2D codes. An optimisation mode allows additional settings to ensure reliable identification of each code. Automatic setting of the exposure time: The sensor characteristics and the segmented lighting can be adapted so that optimum results are achieved even with highly reflective metal surfaces. Complex application programming is no longer necessary due to code identification and comparison in the sensor.
|
|
IT 3800g
- The scan is possible in reaching or touching the bar code.
- Lightweight and stable box
- Integrated Decoder
- Display of successful reading
- RS 232 and USB interface
|
|
|
|
|
|
Datalogic’s DS1100 offers the best cost-effective industrial solution for OEM Features applications.
Specifically designed for easy integration into OEM equipment, the DS1100
provides very compact dimensions, light weight and, obviously, Datalogic's recognized excellent scanning performance.
Many applications and customers’ needs have been analyzed and taken into great consideration during the DS1100 product development. Thanks to these studies, direct and 90° output window versions have the same compact dimensions, allowing very flexible installation. The motor can be switched off and on via software commands, in accordance with application needs, increasing product life and silence during use. Set-up procedures are very easy to follow so the scanner can be quickly configured through WINHOST™, the intuitive set-up software.
The DS1100 covers a wide reading area, scans very close to the output window and grants optimized performance on high resolution codes, thanks to a full range of specific models.
The perfect combination of a powerful RISC decoder with reliable decoding
algorithms and impressive optical performance assure the highest read rate and accuracy even on damaged or poorly printed bar codes.
Integration and connection with existing control systems, PCs or PLCs, is very easy using the two high speed serial interfaces. Multi-point scanning configurations are available using Master-Slave or Multiplexer connections.
The DS1100 is equipped with IP65 rugged industrial housing and is also available as an embedded module for specific applications.
|
|
|
|
|
|
The combination of extremely compact dimensions and powerful high speed reading capabilities makes the DS1500 scanner ideal for demanding OEM applications.In fact, DS1500 miniaturization allows easy integration into OEM equipment and automatic machinery. The high scan rate and sophisticated electronic design effectively addresses difficult reading conditions.
Availability of embedded ACB™ (Advanced Code Builder) reconstruction SW algorithm allows consistent decoding of damaged or mis-applied labels (resulting in high tilt angles).
DS1500 installation and configuration is easy and simple thanks to compact size
and to the new test operating mode with bar-graph. Test mode is activated by
means of a pushbutton on the scanner (external PC not required) and the led bargraph shows the real time read percentage. This feature increases the scanner ease of installation and re-positioning during product changeovers in automated machinery. DS1500 operates at a speed up to 1200scan/s, extending the application range also to high speed document handling, paper inserting, label rewinding and packaging machines. Additionally, the scanner motor can be switched ON and OFF via SW command. This feature is useful in very low throughput application or when the machine sits idle for long periods. A simple software command allows a prompt restoration of full operation when needed. DS1500, the best answer for reduced space and high performance integration bar code reading needs!
|
|
|
|
|
|
The SC6000 is the ultimate Datalogic industrial controller specifically designed for omni-directional multi-side reading tunnels. It offers all the necessary tools to make the phases of System Installation, Setup, Testing and Maintenance of an omni-directional reading tunnel easy and quick.
The SC6000 key functions are:
Bus Controller: cluster management and Host interface of a multi-side reading tunnel based on a Lonworks bus.
DARP™ (Datalogic Automatic Replacement Procedure) function: automatic procedure for scanner and bus controller replacement.
Simple and effective diagnostic indications, based on LEDs and a display, offer all the necessary information to the maintenance operator.
Easy remotization of all the reading station information, thanks to built-in Ethernet and field bus connectivity, as well as a special 9-pin connector for Modem connection.
The SC6000 is based on a robust alloy case divided in two parts: the upper part is composed of a display, keypad and LEDs. The lower part contains the mother board, removable Compact-Flash memory, field bus boards and connector panel.
No Hard Disk is used in the SC6000. A Compact-Flash memory increases the overall product reliability.
The SC6000 is compatible with the 6000 and 8000 family scanners (bus versions).
Every scanner on the reading station can be operated using the GENIUS™ software with the SC6000, from the SW download phase to fine scanner tuning. GENIUS™ can be used through a simple RS232 connection with the SC6000 on site, or through a remote connection with Ethernet via Socket. SC6000 also offers a special 9-pin port for a standard Modem connection
|
|
|
|
|
|
The DS6400 has been specifically designed to satisfy the needs of various AutoID applications in Manufacturing and Logistics applications. The DS6400 is based on the same concept of the DS6300 and DS6500: a complete and modular solution in terms of reading performance, connectivity, ease of use and
maintenance.Modularity and flexibility of the DS6400 is based on an innovative mechanical design with the scanner separated in two parts: the reading head and decoder base.As a result, it is possible to always install the scanner in the ideal position, by simply rotating the Head / Base position (“Step-A-Head”).The DS6400 has a built-in linear motor providing a dynamic focus system called FLASH™, fully controlled via SW, which covers an impressive reading range of over 2 meters. FLASH™ is capable of moving the focus position from the minimum to the maximum position, in less than 10 msec. FLASH™ complements ASTRA™ technology,based on a multi-laser architecture, which maximizes the real time depth of field.The DS6400 is offered both in linear and integrated Oscillating Mirror (OM) versions,which are fully SW controlled. The DS6400 has the same decoder base as the DS6300, with built-in connectivity to Ethernet, Devicenet and Profibus.With the GENIUS™ program, it’s easy to setup the scanner and to perform functions such as remote control and SW updates on any slave scanner of the cluster by simply connecting the Master.
|
|
|
|
|
|
DS4800 is an industrial laser scanner combining flexibility and compactness
thus satisfing all application needs of the production plant.
Through the smart focus adjustment DS4800 optimizes the performances
based on the reading distance. This extends the reading area and
improves the overall read rate.
Thanks to DIGITECH™ technology, DS4800 provides excellent reading
performance on low quality barcodes. By means of optimized reading
recipes, DS4800 improves reading rate on low contrast barcodes while
granting excellent performance at high skew angles. Additionally, ACR4™
reconstruction technology increases the max tilt angle and decoding rate
on damaged barcodes.
The intuitive X-PRESS™ makes installation and maintenance easier than ever thanks to a five LED bar-graph and the multi-function key providing immediate access to relevant functions: Test Mode (for bar code verification), AutoLearn (for automatic code setting) and AutoSetup (for self optimization of reading performance). DS4800 is easily programmed through the multi-language Genius™ SW tool. Thanks to the wizard approach and graphic add-ons, the scanner configuration is rapidly accomplished.
DS4800 is equipped with the embedded high-speed ID-NET™ communication interface. ID-NET™allows efficient data collection without
the need of external multiplexer providing overall cost reduction and
simpliying nertwork wiring. Extended fieldbus connectivity is available through a complete range of modular connection boxes.
With its rugged construction, IP65 protection class, 50°C max operating
temperature and total ambient light immunity, DS4800 is suitable for all
main industrial applications
|
|
Symbol DS6700 - Handheld digital imager scanner
Capture data and images with single multi-use device
The versatile Symbol DS6700 Series from Motorola delivers the functionality of a 1D and 2D bar code scanner, digital camera and document scanner in a single device. Designed to meet a wide variety of business needs across a variety of industries, the Symbol DS6700 enhances employee productivity and streamlines business processes in retail, healthcare, government, manufacturing and more by combining an onboard 1.3 megapixel camera with high performance scanning features and superior digital imaging technology.
|
|
|
|
|
|
Ultra compact dimensions, high performance, versatile connectivity and program-
mability make the DS2200 the ideal component for OEM and other applications
where integration capability and high reliability are essential and cost effectiveness is a key element.
Datalogic’s advanced technology and experience in miniaturized laser components
has allowed the development of one of the most compact industrial laser scanners on the market without compromising reading performance and industrial quality standards.
The DS2200’s high scanning speed and optical quality, together with the new generation real time decoder and flexible decoding software provide high decoding performance and reliability for the most popular bar code symbologies, as well as on damaged or poorly printed bar codes.
Integration into automated equipment is extremely easy thanks to the DS2200’s
miniature dimensions and its light weight. The dual serial interface increases the device's versatility and connectivity, allowing multi-point scanning configurations through Master-Slave or Multiplexer connections. User friendly set-up procedures are performed through the easy and intuitive WINHOST™ software. The DS2200-2xxx models also provide excellent performance on very high density codes.DS2200 represents Datalogic’s response to the high technological needs of OEMs requiring extremely compact and cost effective components for integration into their automatic equipment. Thanks to Datalogic’s recognized high quality standards,system manufacturers can be confident that the scanners installed in their machines will improve overall system performance and reliability.
|
|
|
|
