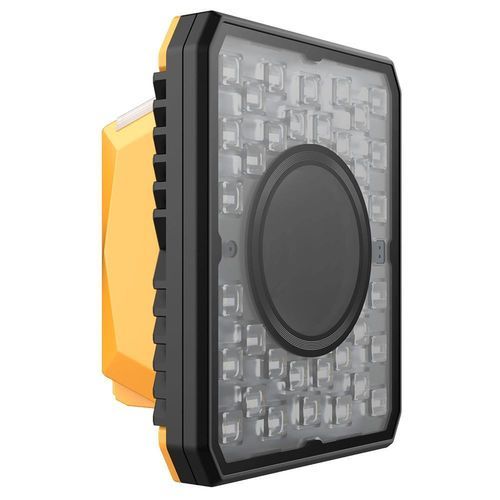

Fixed barcode scanner SMore VS2000

2Dfor factoryfor logistics

Product type
Industrial barcode scanner for 2D and 3D code reading with modular lighting and interchangeable lens mounts

Product overview
Equipped with deep-learning decoding algorithms, the SMore VS2000 reliably reads 2D and 3D codes across more than 50 material types. Designed for industrial deployment, it operates in complex and harsh production environments and provides fast, accurate code capture for inline inspection and automation systems.

Product features

• Interchangeable lens mounts: Supports M-mount and C-mount lenses. Typical M-mount focal lengths: 8mm, 12mm, 16mm, 25mm, 35mm to cover varied working distances and fields of view.
• Ultra-fast focusing: Integrated distance sensor determines precise material-to-lens spacing, enabling rapid auto-focus with minimal sample calibration.
• High resolution & broad view: Image sensor above 5MP delivers a wide field of view suitable for large-area barcode reading and high-detail decoding.
• Modular light source: Choose between a standard 16-LED module and a high-brightness 34-LED module to match surface types and reduce dependence on external lighting.

Technical specifications

• Supported codes: 2D and 3D codes
• Material compatibility: Reads on 50+ materials (reflective, matte, curved, textured)
• Lens mounts: M-mount and C-mount supported
• M-mount focal lengths: 8mm, 12mm, 16mm, 25mm, 35mm
• Image sensor: >5MP
• Field of view: large-area imaging for wide-surface barcode capture
• Focus system: distance sensor for precise positioning and ultra-fast focusing
• Lighting options: modular 16-LED standard or 34-LED high-brightness modules
• Environment: engineered for installation in complex and severe industrial environments
• Primary benefits: rapid, accurate reading with deep-learning based decoding for automated inspection and traceability
