2D code reader VS600 series

1DDPMQR

Short description

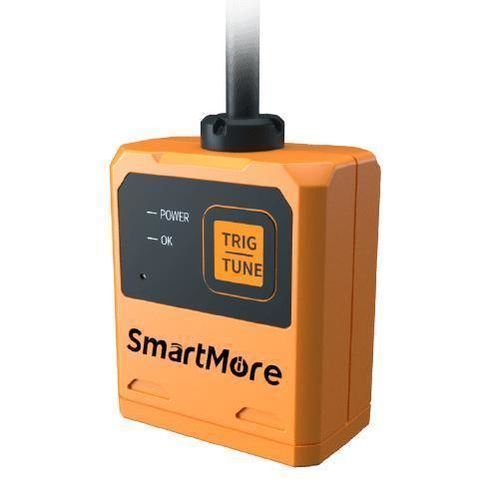

The SMore VS600 is an ultra-compact fixed-mount smart code reader developed by SMore. It uses a proprietary deep-learning decoding engine to efficiently decode a wide range of barcode types, including complex paper barcodes and DPM (direct part mark) codes, for industrial identification applications.

Product type
Fixed-mount code reader

Product Features

• AI deep-learning algorithm capable of reading complex paper barcodes and standard DPM barcodes.
• "TUNE" button for one-key parameter adjustment and automatic decoding optimization.
• Custom high-depth-of-field optics for extended reading distances.
• Multiple communication interfaces: Ethernet, serial ports, USB and digital I/O for system integration.

Technical specifications

• Brand: SMore.
• Model: SMore VS600 (fixed-mount code reader).
• Form factor: ultra-compact, fixed-mount installation.
• Algorithm: proprietary deep-learning based decoding engine.
• Supported code types: various barcode formats including complex paper barcodes and DPM.
• Auto-configuration: one-key "TUNE" for automatic decoding parameter adjustment.
• Optics: custom high-depth-of-field lens for extended read range.
• Interfaces: Ethernet, serial ports, USB, digital I/O for communication and integration.
• Design intent: reliability and robustness for industrial code reading applications.
