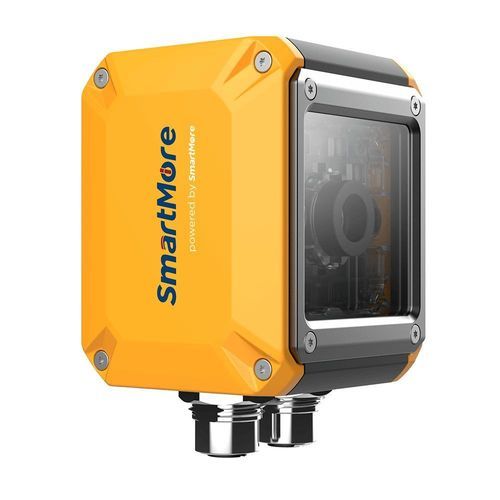

Fixed bar-code reader VS1000

1D2Dwith image capture

Product overview
Powered by SmartMore's deep learning algorithm, a high-speed multi-core SMP processor and a megapixel image sensor, the SMore VS1000 is an industrial 1D/2D code reader capable of reading codes on more than 50 materials. The system adapts to diverse production conditions to deliver precise, rapid recognition suited to automated inspection and traceability applications.

Key features

• Excellent reading performance: Recognizes 1D and 2D codes on a wide range of materials and in challenging conditions such as low contrast, poor print quality, curved or reflective surfaces, and perspective-distorted codes.
• Ultra-flexible light source system: Red, white and polarized light sources with four independently controlled lighting units enable consistent illumination across different backgrounds and surface finishes.
• High-precision field of view: Four fixed-focus lens models cover reading distances from 30 mm to 125 mm to match varied application setups.
• Parallel deployment: Supports networked deployment for expanded field of view and simultaneous scanning from multiple angles and surfaces.

Demonstration video
Official product demonstration video available showing VS1000 operation with polarized lighting.

Technical specifications

• Code types: 1D and 2D codes
• Algorithm: SmartMore deep learning algorithm
• Processor: high-speed multi-core SMP processor
• Image sensor: megapixel image sensor
• Materials supported: reading on over 50 materials
• Lighting: red, white and polarized light sources; four independently controlled lighting units
• Lenses / field of view: four fixed-focus lens models covering reading distances from 30 mm to 125 mm
• Deployment: supports parallel/network deployment for expanded field of view and multi-angle scanning
