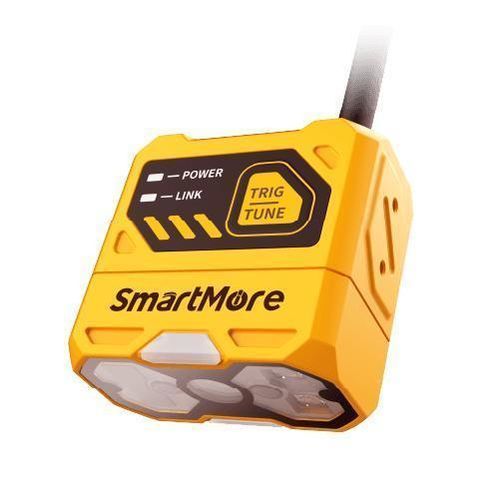

2D code reader VS800P series

1Dultra-compactautofocus

Product introduction
SMore ViScanner smart code reader VS800P is a compact code reader designed for industrial equipment integration. It uses a liquid-lens autofocus system to achieve millisecond-level focusing with fast and accurate targeting. SmartMore’s deep learning decoding algorithm provides reliable and rapid decoding across a wide range of barcode and 2D-code scenarios.

Applications and integration
The VS800P’s small form factor enables installation in constrained spaces such as LDI exposure machines, ABF laminating machines, wafer inspection systems, bonding equipment, and deposition equipment. Its compact design and integrated lighting make it suitable for automated production lines and equipment with limited mounting space.

Key features

• Liquid autofocus technology: liquid zoom lens combined with SmartMore’s Cube-A Technology autofocus algorithm for millisecond-level autofocus with a single trigger.
• One-click intelligent tuning: tune button automatically adjusts autofocus, exposure, and gain for different lighting scenarios (dark-field, bright-field), reducing setup and debugging time.
• Compact design: small footprint (47 mm × 25 mm × 43 mm) with four integrated LED light sources and two green laser aiming devices for quick positioning of the read area.
• Flexible working distance: integrated 6 mm liquid lens supports a working distance range of 30 mm to 300 mm to cover mainstream code-reading scenarios.

Technical specifications

• Dimensions: 47 mm × 25 mm × 43 mm
• Working distance: 30 mm – 300 mm
• Liquid lens: integrated 6 mm liquid lens
• Autofocus: Cube-A Technology; millisecond-level autofocus speed with single trigger
• One-click tuning: automatic adjustment of autofocus, exposure, and gain
• Lighting: four integrated LED light sources
• Aiming: two green laser aiming devices
• Decoding algorithm: SmartMore deep learning decoding algorithm
• Typical installation environments: LDI exposure machines, ABF laminating machines, wafer inspection systems, bonding equipment, deposition equipment
• Form factor: compact, suitable for installations in very limited spaces
