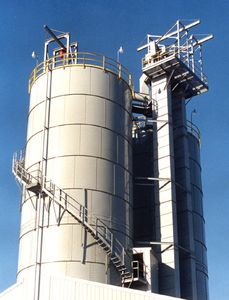

BEUMER is one of the leading suppliers of bucket elevators and has done pioneering work in the field of high-capacity bucket elevator technology.
The development of high-quality steel cables and the corresponding belt clamps and bucket mountings make sure that today high-capacity belt bucket elevators for conveying heights of 200 m and material flows of 2,000 m³/h and more can be realized.
BEUMER high-capacity chain bucket elevators are equipped with hardened, double-stranded round link chains with good wear resistance.
BEUMER high-capacity central chain bucket elevators are equipped with a stamped, single- or double-stranded chain, which are extremely wear-resistant due to extra-deep hardening of the wear surfaces, guaranteeing superior service life.
Both chain and belt bucket elevators have proven reliability in thousands of installations under the most difficult and even extreme operating conditions. For particular operational requirements, special bucket elevator designs are available.
CC-S American Grain
Stackable design saves freight and storage costs
The Bucket With a Beam for No Bowing or Backlegging
"Iceberg" Edge for Gentler Handling and Longer Life
Premium Virgin White Poly for Maximum Bucket Strength
4B BRAIME is the largest manufacturer of elevator buckets in the world.
We are the exclusive manufacturer of the GB Bottomless and the "STARCO" Super Low Profile elevator buckets - "STARCO" is the original low profile elevator bucket on the market.
With our extensive range of buckets, we can serve all agricultural or industrial applications.
elevator buckets: pressed steel, stainless steel, polyetylene, polyamide and polyurethane. 8 cm to 63 cm.
We have althought elevator belt, elevator bolts and junctions belt
The Plastic "JET" elevator buckets is the last born of the high performance buckets' range. It is molded by pressure injection, made of Polyethylene, Polyamide or Polyurethane and is abrasion resistant. The Plastic "JET" elevator buckets represents the perfect synthesis of modern engineerings regarding plastic injection and the elevation of a lot of dusty products.
All the biggest European elevator constructors have chosen the Plastic "JET" elevator buckets as the Reference in the elevation field.
Optimum possible capacity for a given elevator case
Buckets are closely spaced & products is elevated in an almost continuous column
Series of bottomless buckets is followed by bucket with bottom
Self-cleaning - ideal for sticky material
elevator buckets: pressed steel, stainless steel. 8 cm to 63 cm.
We have althought elevator belt, elevator bolts and junctions belt
The steel "JET" elevator buckets is the last born of the very high performance buckets' range. It is made of pressed steel of very high resistance, without any welding. The steel "JET" elevator buckets represents the perfect synthesis of modern injection and elevation engineerings for most of dusty products.
The biggest European constructors have chosen the steel "JET" elevator buckets as the Reference in the elevation field.
Find all bolts necessary to use with elevator bucket : screw, curved washers, flat washers, nuts, large oval washers underlt the head of the TF bolt, space washer.
The bucket mounting by means of double link attachment permits ultimate bucket support during scooping up and emptying. The variable spacing between buckets allows adapting of the system to the conveying requirements. Furthermore, technical aspects like high conveying capacity, high conveying speed and elevation distance as well as quiet action of the system are characteristicals. The use of high wear resistant components results in long service life of the entire chain system.
