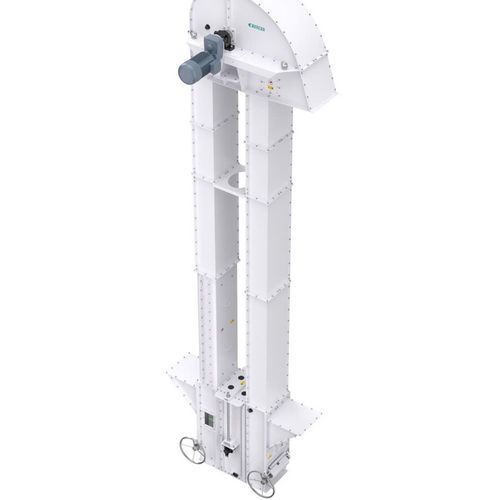

Bucket elevator for the food industry AHEL

beltfor pelletsfor bulk materials

Product overview
The belt and bucket elevator AHEL is a vertical conveyor engineered for bulk materials such as grain, animal feed, pellets and oilseed. With a capacity up to 1400 t/h, the AHEL is designed for continuous operation, easy sanitation and long service intervals.

Key benefits

• Designed for easy maintenance: Split elevator hood provides direct access to internal components for fast inspection and service.
• High sanitation standards: Rounded bolts and a smooth, rounded casing minimise product retention and simplify cleaning.
• Wear protection: Wear-resistant materials at high-wear points (inlet, boot and head) extend component life and reduce downtime.

Highlight features

• Fast and easy installation: Pre-stressed elevator belts enable one-step tensioning, cutting installation time by up to 80%.
• Modular and compact design: Compact housing and modular configuration allow adaptation to terminals, silos and processing lines while easing transport and assembly.
• Safety and monitoring: Integrated speed and belt-skew monitoring with bearing temperature sensors and automatic stop on overheating for reliable operation.

Available documents

• Elevators Brochure
• Belt and bucket elevator AHEL Data Sheet

Technical specifications

• Model: AHEL
• Function: Vertical conveyor (belt and bucket elevator)
• Conveyed materials: Grain, animal feed, pellets, oilseed and similar bulk products
• Maximum throughput: Up to 1400 t/h
• Maintenance features: Split elevator hood for easy access
• Sanitation features: Rounded bolts and rounded casing to prevent dust accumulation
• Wear protection: Wear-resistant materials at inlet, boot and head
• Installation: Pre-stressed belts for one-step tensioning; installation time reduction up to 80%
• Design: Modular, compact housing for flexible configuration and easier shipping
• Monitoring & safety: Integrated speed and belt-skew monitoring; bearing temperature monitor with automatic stop on overheating
