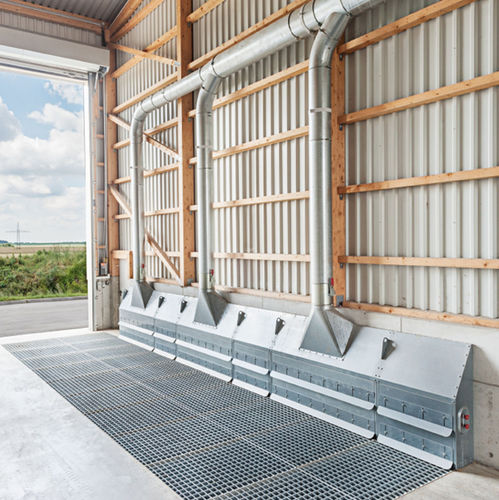

Panel filter unit

dustmodular

Overview
Flexible aspiration solutions for intake hoppers. Aspiration panels with integrated filter remove dust directly from the product stream at the hopper interface, enabling targeted dedusting in receiving pits and transfer points.

Key benefits

• Simple installation: panels designed for straightforward mounting and integration into existing intake lines.
• Single source for spare parts: consistent components and available replacements reduce downtime and simplify maintenance.
• Prevents dust buildup: 60° inclined intake gutter minimizes accumulation in the trough and reduces airborne dust in the working area.

Highlight features

• Modular design: units can be adapted to hoppers of varying lengths and configurations.
• Optimal suction configuration: supports underfloor and overfloor aspiration and features adjustable suction slits for tailored extraction.
• Integrated filter: built-in filtration separates dust from the product flow at the point of intake.

Services and training
Bühler’s services and training support installation, operation and preventive maintenance to ensure safe and consistent performance of aspiration solutions.

Technical specifications

• Product type: Aspiration panels with integrated filter for intake hoppers (dedusting system for receiving pit)
• Function: Removes dust from product stream via hopper aspiration
• Design features: Integrated filter; modular design; adjustable suction slits; supports underfloor and overfloor aspiration
• Inclination: Intake aspiration gutter designed with 60° inclination to prevent dust buildup
• Application: Suitable for mills, malt houses and grain storage plants
• Product code (page reference): CUBE-00009-965
