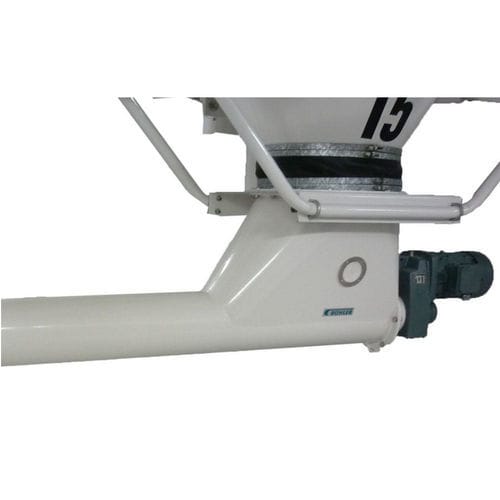

Helical auger MNSH

Overview
The tubular screw conveyor MNSH accurately discharges and doses raw material in animal feed production plants, grain mills, malting operations and other processing plants. The design separates bearings from the product stream and provides a fully enclosed, hygienic housing.

Key benefits

• Designed for low maintenance: bearings installed outside the product chamber allow easy access and maintenance.
• High flow rates: high-capacity inlet and a progressive spindle in the inlet section enable elevated throughputs during discharge from storage bins.
• Food-safe design: bearings separated from the product stream and a fully closed, welded housing reduce risk of product accumulation.

Highlight features

• Accurate dosing
• Constant throughput control: supplied with a frequency converter to keep discharge rate constant
• Optional agitator available at the outlet

Downloads (available as PDF)

• Flyer: GQ_MNSH_Tubular-Screw-Conveyor_Flyer_EN.pdf
• Technical brochure: GL_BF_MNSH_EN_14046_02.pdf

Technical specifications

• Model: MNSH
• Intended applications: animal feed production plants, grain mills, malting operations and other processing plants
• Bearings: installed outside the product chamber; bearings separated from the product stream
• Housing: fully enclosed; 3 m conveyor length available fully welded to avoid product settling
• Inlet: high-capacity inlet with progressive spindle in the inlet section for elevated throughput
• Drive & control: includes a frequency converter to keep discharge rate constant
• Optional: agitator at outlet
• Product code (page data): CUBE-00010-440
