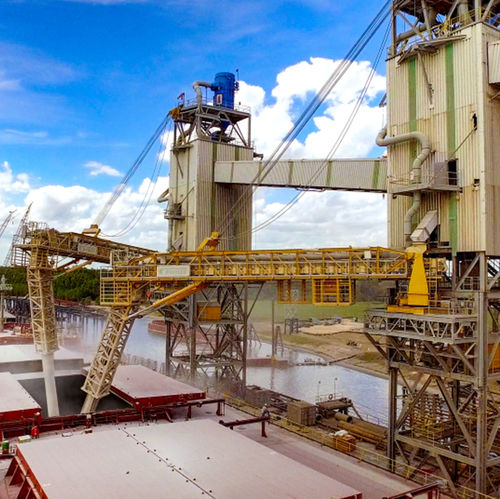

Bulk material ship loader

Overview

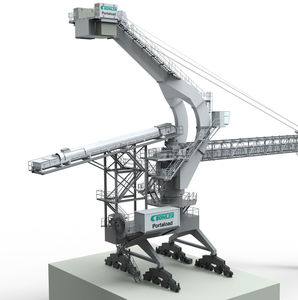

The Bühler stationary ship loader Portaload is a high-throughput loading system for grain and bulk raw materials. Designed for continuous operation, Portaload uses multi‑boom configurations to shorten vessel berthing times and serve vessels up to Post‑Panamax class.

Key benefits

• Reduced energy demand: Low boom position lowers lifting height and decreases conveyor energy consumption.
• Optimised berth utilisation: Individual booms or combined operation on a single hatch enable faster loading and shorter turnaround.
• High throughput per boom: Belt conveyors deliver 800 t/h to 3000 t/h depending on configuration and material.

Highlight features

• Loading — Continuous high‑performance loading with parallel booms for optimal hatch filling and minimal vessel idle time.
• Flexibility — Configurable with 3 or 4 towers to match capacity requirements and vessel sizes, with options for future expansion.
• Design — Low boom geometry reduces lifting height, enabling more compact and cost‑efficient installation.
• Reliability — Robust mechanical design and continuous operation concept ensure high availability and low downtime.

Other features / Options

• Dust suppressor: stabilises product flow before the hold to reduce emissions and support regulatory compliance.
• Portaspoon: extends loading reach, minimises dust formation and allows precise placement under difficult conditions.

Product media

• Embedded video(s) and product presentation on the product page.
• Technical brochure available for download (see product downloads).

Technical specifications

• Product name / model: Portaload
• Manufacturer / brand: Bühler
• Throughput per boom: 800 t/h to 3000 t/h
• Typical configuration: multi‑boom; available with 3 or 4 towers
• Vessel compatibility: up to Post‑Panamax class
• Design advantage: low boom position for reduced lifting height and energy consumption
• Dust control options: dust suppressor (stabilises product flow)
• Extended reach option: Portaspoon for precise placement and extended loading range
• Operation: continuous high‑performance loading with parallel booms for optimal hatch filling
• Product code (page): CUBE-00009-984
