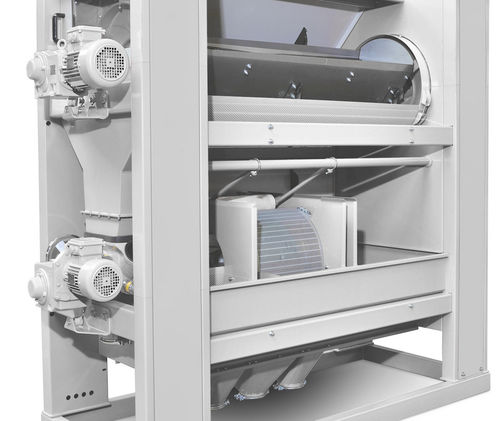

Seed separator Ultratrieur

gravityfor the food industryfor agriculture

Overview
The Ultratrieur is an indented separator that separates grain and other granular products according to their length. It is used for cleaning, grading, seed processing and conditioning of industrial products. The machine is offered in a modular design to match different product flows and capacity requirements.

Key benefits

• Precise grading results: Adjustable trough allows setting the required level of cleaning. A range of indented cylinders is available to match product characteristics. Optional post-separation process can be added for higher-quality grading.
• Proven technology: More than 2,500 Ultratrieur units installed in processing plants worldwide.
• Modular design: Multiple configurations and modules enable customization of the number and quality of output fractions according to processing needs.

Highlight features
High-quality separating — Seamless trough adjustment
The trough is designed for easy, continuous adjustment. Set the grading for each product by turning the control element manually directly on the machine.

Sanitation — Designed for food safety and a clean plant
The enclosed construction and the aspiration vent help reduce dust emissions and improve sanitation in processing facilities.

Optional hardened indented cylinders — Cost and service-life advantages
Optional hardened indented cylinders have approximately twice the service life of conventional cylinders. They increase cleaning efficiency and can reduce operating costs by up to 30%.

Taking samples
The Ultratrieur includes an opening with a plastic flap for on-demand sampling.

Technical specifications

• Type: Indented separator for length-based separation of grain and granular products.
• Design: Modular construction with configurable modules to match product type and required fractions.
• Adjustment: Manual control element for continuous trough adjustment at the machine.
• Cylinders: Range of indented cylinders available; optional hardened indented cylinders provide ~2× service life vs conventional cylinders.
• Sanitation: Enclosed design and aspiration vent to reduce dust emissions and improve plant sanitation.
• Sampling: Opening with plastic flap for on-demand sampling.
• Proven deployment: Over 2,500 units installed worldwide.
• Benefits: Precise grading; optional post-separation for higher-quality cleaning; potential cost savings up to 30% with hardened cylinders.
