Conveyor chain conveyor system AHKG

heavy haulfor bulk materialsstraight

Overview

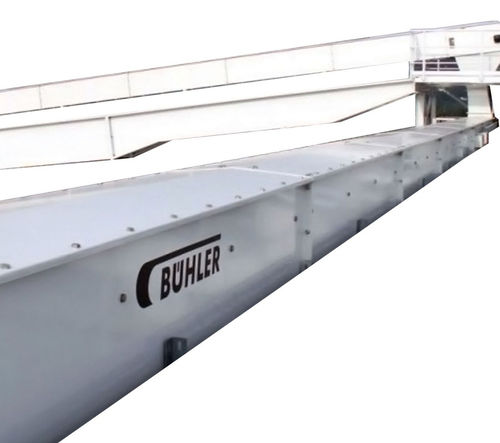

The AHKG trough chain conveyor (Heavy‑Duty Line) is designed for horizontal bulk conveying at throughputs up to 1200 t/h. It is intended for material intake from rail or road pits and for downstream distribution or discharge in bulk handling and processing plants.

Key benefits

• Extended service life: Core components use drop‑forged, hardened chain links for high tensile strength and wear resistance. Optional manganese steel chain guide bars and lateral casing linings further increase durability.
• Fast maintenance: Modular design with bolted segments enables quick access and replacement of internal parts to reduce downtime.
• Reliable operation at high throughput: Integrated safety devices such as a material level sensor in the drive unit and a zero‑motion monitor in the return unit detect chain issues early to protect the system and maintain uptime.

Highlight features
The Bühler trough chain conveyor AHKG moves bulk material over distances up to 150 m and supports continuous horizontal conveying with capacities up to 1200 t/h. It is suitable for receiving pits, bulk storage, handling systems and processing lines.

Applications

• Material intake stations (rail/road)
• Downstream distribution
• Discharge operations
• Bulk storage and handling systems
• Processing plants

Technical specifications

• Model / series: AHKG
• Throughput: up to 1200 t/h
• Conveying distance: up to 150 m
• Conveying direction: horizontal
• Core elements: drop‑forged, hardened chain links
• Optional components: lateral casing linings; chain guide bars in manganese steel
• Design: modular with bolted segments for easy part replacement
• Safety devices: material level sensor (drive unit); zero‑motion monitor (return unit) for early chain rupture detection
