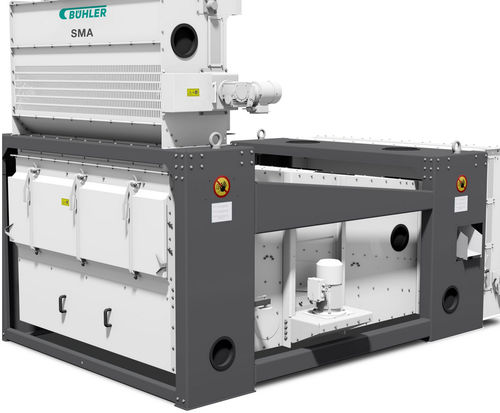

Dry screening screening machine LACB SMA

ruggedfor the food industryagricultural

Overview
The screening machine LACB SMA is designed to clean oilseeds such as soybean, sunflower and canola. It provides fast, easy access for sieve cleaning and delivers high throughput for industrial cleaning applications. The SMA is suitable for all types of grain.

Key benefits

• High throughput with low operating cost — up to 200 t/h for soybeans and up to 220 t/h for wheat, optimized for cost-effective operation.
• Effective cleaning for oilseeds and grains — adjustable aspiration, dense screening surface and circular sieve motion for improved separation quality.
• Easy maintenance and fast changeover — front access to sieves, wide spacing between sieve levels and large outlets to remove sticky dust and speed cleaning.

Highlight features

• Cleaning and maintenance — front-access, removable sieves with maintenance flaps; screw-free sieve design for rapid replacement.
• Compact footprint — space-efficient construction ideal for new plants or retrofit installations.
• Sanitation — enclosed design and inlet fiber ribbon reduce dust and support food-safety requirements.
• Rugged construction — sieves mounted on durable metal frames; optional wear protection at inlet and outlet to extend service life and reduce noise.
• Airflow control — configurable vertical sifter airflow and inlet aspiration to separate very light fractions and prevent screen clogging.
• Safety — oscillation monitor with automatic shutdown in case of malfunction.
• Special application — SMA 203-3 OL variant for hull separation: height-adjustable suction nozzles on the pre-sieve for efficient hull removal.

Customer feedback
"The screening machine SMA is exactly what we need: Good cleaning results, easy and fast cleaning after product changes, and overall a good price. So, recently, we’ve just bought another SMA." — Jaroslaw Sapilo, Managing director, GPH Farmer, Poland.

Technical specifications

• Model family: LACB SMA
• Typical throughput: up to 200 t/h for soybeans
• Typical throughput: up to 220 t/h for wheat
• Application: oilseeds (soybean, sunflower, canola) and all types of grain
• Cleaning features: adjustable aspiration, high screen density, circular sieve movements
• Maintenance: front access to sieves, maintenance flaps, screw-free sieves, large outlet channels, wider spacing between sieve levels
• Design: compact footprint for retrofit or new plants; enclosed design for reduced dust
• Construction: sieves on durable metal frames; optional wear protection for inlet and outlet
• Airflow control: variable airflow in vertical sifter and inlet aspiration pre-cleaning
• Safety: oscillation monitor with automatic shutdown on malfunction
• Special variant: SMA 203-3 OL with height-adjustable suction nozzles for hull separation
