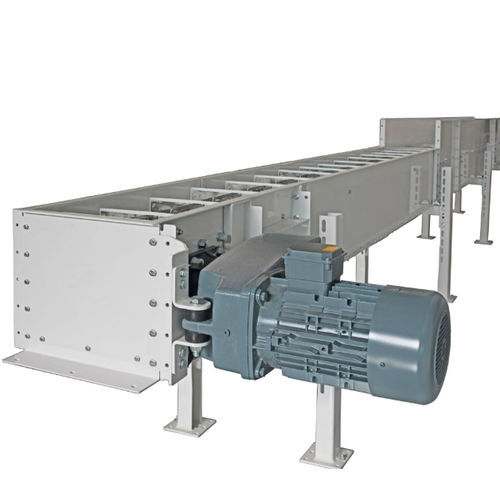

Chain conveyor LBCB

slat chainscrapertrough

Overview
The trough chain conveyor LBCB is a modular conveying solution designed for safe, gentle handling of granular and powdery products. Its broad accessory range and multiple chain options enable customer-specific configurations for diverse industrial processes.

Key benefits

• Flexible configuration: modular design with multiple chain and bearing options allows adaptation to product and plant requirements.
• High operational availability: safety devices such as an overflow flap in the driving station and an optional zero-motion monitor at the tensioning station reduce downtime risk.
• Improved hygiene and reduced product adhesion: continuous plastic scrapers on plate links and rubber cleaning vanes minimise residue buildup.

Highlight features

• High versatility — modular system built from standardized components enabling tailored conveyor layouts.
• Hygienic design — chain wheels with dirt grooves, outlet flaps under the trough, and continuous plastic scrapers aid cleaning and food-grade sanitation.
• Operational reliability — tensioning station designed to minimise residue; zero-motion monitor (optional) detects chain failure indirectly by monitoring a non-driven shaft.
• Wear protection — trough bottom in superior-quality steel and continuous scrapers on chain plates extend service life and reduce maintenance.
• Noise reduction — return rail smooths chain travel in the upper trough section, reducing noise output.

Applications

• Grain handling and milling
• Brewing and malting lines
• Coffee processing
• Rice and paddy handling
• Bulk handling of powders and granules

Downloads

• Flyer Chain conveyor LBCB
• Data Sheet Chain conveyor LBCB

Technical specifications

• Model: LBCB
• Modular trough chain conveyor using standardized machine components
• Multiple chain and bearing options for product-specific configuration
• Continuous plastic scrapers on each plate link
• Rubber cleaning vanes spaced to minimise residue
• Chain wheels with dirt grooves and outlet flaps under the trough
• Tensioning station engineered to reduce residue accumulation
• Optional zero-motion monitor at tensioning station for indirect chain-rupture detection
• Overflow flap in driving station to stop machine in case of product pile-up
• Trough bottom constructed from superior-quality steel for high wear protection
• Return rail concept to reduce noise and improve chain run
