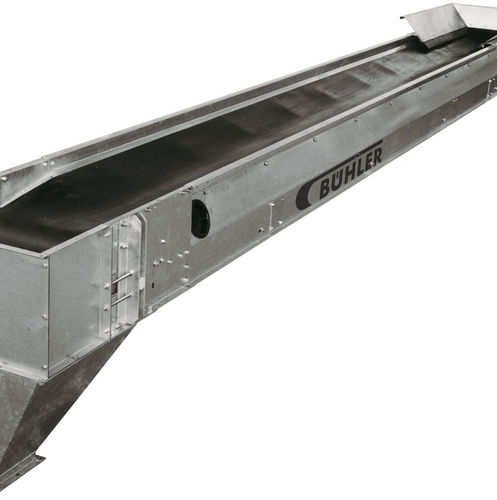

Belt conveyor LBBA

scrapertroughtransfer

Product overview
The LBBA trough belt conveyor is designed for efficient conveying of grain and other bulk materials at low to moderate throughputs. It is intended for short-distance transfers in small to mid-size plants and is suitable for coarse-grained materials and fertilizers.

Key benefits

• Enhanced operational safety and traceability through system monitoring, including zero-motion monitors and belt skew sensors.
• Belt-skew detection that stops the system when the belt runs off-track.
• Reduced downtime with pre-assembled segments and lightweight construction for fast installation and simplified maintenance.
• Wear protection at inlets and outlets provided by Rhino-Hyde lining.

Highlight features

• Efficient conveying at low throughputs, suitable for small to mid-size plants.
• Flexible short-distance conveying, up to 60 metres.
• Capable of handling coarse-grained materials and fertilizers.
• Throughput capacity up to 200 tons per hour.
• Maximum conveying distance up to 60 metres.

Lifetime

• Belt scraper included to keep the belt clean and reduce wear.
• Inlets and outlets lined with Rhino-Hyde for increased wear protection.

Installation and maintenance

• Open machine design (no enclosing housing) enables fast and easy installation and maintenance.
• Pre-assembled segments and lightweight construction minimize installation time and simplify service work.

Applications

• Grain conveying and transfer of other bulk materials in small to mid-size plants.
• Suitable for coarse-grained materials and fertilizers over short distances.

Technical specifications

• Model name: LBBA
• Conveyor type: trough belt conveyor
• Typical application: grain and other bulk materials (coarse-grained materials, fertilizer)
• Maximum throughput: up to 200 tons per hour
• Maximum conveying distance: up to 60 metres
• Wear protection: inlets and outlets lined with Rhino-Hyde
• Belt cleaning: belt scraper included
• Safety features: zero-motion monitors, belt skew monitor (stops system if belt runs off-track)
• Design: open machine design, pre-assembled segments, lightweight construction for fast installation and easy maintenance
