CAT® tool-holders, also known as Caterpillar® or V-flange tool-holders, are used to hold cutting tools on machining centers.
These holders can accept both metric and imperial cutting tools. They closely resemble BT types, except for the type of flange and pull stud. CAT® holders use an imperial thread for the pull stud/retention knob.
This tooling comes in a range of sizes, designated as CAT 30, CAT 40 and CAT 50. The number is based on standards by the Association for Manufacturing Technology (formerly NMTB).
 |
 |

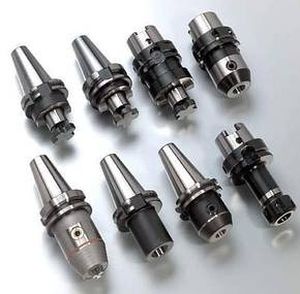

CAT tool-holder DIN 69871 Bahmueller
DIN 69871 tool holding systems The ISO Taper Shank is the classical version used in machine tools with automated tool exchange. Main characteristics are: * Pull studs *...
 |
 |

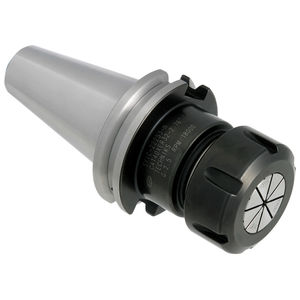

CAT tool-holder CAT 40 series Techniks
ER collet chucks handle a wide range of machining jobs without having to buy new tool holders. Simply choose the right size collet for the job, set tool depth, and tighten the collet nut and pull stud...
 |
 |
Steep taper adaptors for the Japanese markets are produced under JIS B6339....
