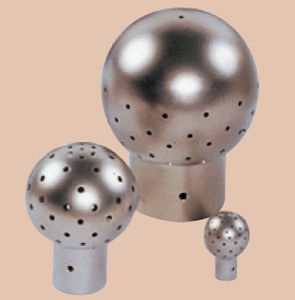

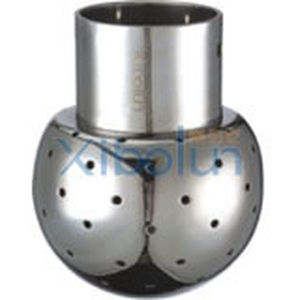

Various types of fixed and rotating spray heads are specified in this section and are designed to suit a wide range of
applications and installations.
|
|
|
|
|
|
This comprehensive range of tank washing devices have been developed for a number reasons. Primarily this is due to the quest for greater efficiency in all kinds of industrial procedures, but it is also the continuous requirement to assure a constant and higher quality level of product. Environmental considerations are also influential; the need to reduce energy use and the increasing costs involved in the disposal of effluents are also factors. Thus resulting in the need for a cleaning process that produces a totally satisfactory result and is completed using the lowest possible volume of cleaning solution; the right tank washing head can also be energy efficient.
Our range from the classic fixed head to the more sophisticated models has been developed to cope with the most demanding applications. The following basic concepts should be given proper consideration in order to determine the correct washing cycle for each single application, and consequently the most suitable type of tank cleaning device.
|
|
|
|
|
|
Tank Cleaning can be defined as manual or automated. Cleaning can be a simple rinse with water, or cleaning with detergents and chemicals. Or cleaning can refer to sanitizing with cleaning agents that reduce microbial contaminants. No matter what, the end result of effective tank cleaning is the application of appropriate and consistent levels of rinsing, cleaning, or sanitizing at specified intervals. The goal is ultimately to prevent contamination that would alter the safety, identity, strength, quality, or purity of the final product. Spraying Systems Co. manufactures more than 80,000 different spray nozzles and accessories. Included in our line is a large selection of tank washers and tank washing nozzles. As a result, we're more likely to have available a nozzle to suit the needs of your tank washing application. And you can also be assured that the nozzle you select will be the most cost-efficient design possible. Visit our Web site @ www.spray.com for all your tank washing needs.
|
|
|
|
|
|
TURBO SSB
The Breconcherry Turbo SSB takes the popular slotted spray ball format into its next evolutionary phase by removing the ball bearings and slowing the rotation speed down.
The unit functions with a hydraulic and PTFE bearing system giving the unit an increased lifetime, reducing wear and potentially prohibiting any contamination issues associated with bearing degradation.
Ideally suited to low flow, variable pressure applications where a slow constant rotation speed is required to give longer chemical dwell times for improved cleaning efficiency. The tried and tested design makes the units truly versatile across any industry sector.
The units are suitable for cleaning small/medium size vessels and manufacturing equipment. The Turbo SSB meets all the essential FDA requirements of hygiene and purity. This makes them highly suitable for the pharmaceutical and biotech industries as well as food, beverage and other hygiene conscious industries.
Wash fluid is directed through the slots on the rotating ball, producing independent strong fan jets giving total coverage. Each fan jet targets a specific area of the vessel. Ideal for burst rinsing or prolonged washing with instant, strong impact performance.
Operating between 2 and 20 bar pressure (29 and 290 psi) the Turbo SSB covers cleaning diameters of up to 4.5 meters (14.8 ft) and rinsing diameters of up to 6 meters (19.7 ft).
The Turbo SSB is manufactured from 316L stainless steel and is available with either pure PTFE or carbon filled PTFE bushes and bearings depending upon the environment they will be operating in. Please contact cip@breconcherry.com for further details.
|
|
|
|
|
|
TYPHOON RANGE
The Breconcherry Typhoon range of spray nozzles are designed to be the most powerful and versatile cleaning units in their respective classes. The smooth exterior, combined with self cleaning abilities, provides an ultra hygienic exterior surface suitable for use in the most hygiene conscious environments. The constant, repeatable and validateable action of the units provides very powerful, stable jets with high dwell times, maximising chemical contact time and mechanical energy.
The Typhoon range has an ultra sleek design and is ideally suited to all applications where hygiene is a priority. The compact nature of the design coupled with the high power jets, make the range perfect for cleaning a variety of vessel sizes and manufacturing equipment. These tank washers can be used in the brewing, beverage, dairy, food, chemicals, coatings and transport industries. The units can be used on permanently fixed or mobile installations.
Cleaning fluid powers a turbine mechanism which drives the vertically aligned gearbox. The controlled rotation of the nozzles creates a spiral cleaning pattern, which builds to cover the entire surface of the vessel. The cleaning pattern is predictable, reproducible and verifiable.
Operating between 4 and 12 bar pressure (58 and 174 psi) the Typhoon range covers cleaning diameters of up to 18 meters (59 ft) and rinsing diameters of up to 28 meters (92 ft).
The Typhoon range is manufactured from 316L stainless steel and PEEK and is available with either pure PTFE or carbon filled PTFE bushes and bearings depending upon the environment they will be operating in. Please contact cip@breconcherry.com for further details.
|
|
|
|
|
|
THE FURY RANGE
The Breconcherry FURY Range of tankwashers are compact cleaning units with a unique piston operated mechanism. They produce high impact, long range jets which oscillate through 90° while the tankwasher continually indexes around the central axis. The FURY range of tankwashers are powered entirely by the cleaning fluid. Only 5% of the wash drives the mechanism, 95% passes directly to the nozzles, maximising jet impingement. The FURY range is ideal where high impact and powerful cleaning are essential.
The versatile FURY range offers 360° and 180° wash patterns for process vessels, storage tanks, and transport containers. FURYs are used extensively in the brewing, distilling, dairy, food, beverage, pharmaceutical, chemical, coatings, nuclear, and transport industries in. The FURY range can be used on a mobile basis or permanently installed.
Unique among jetting washers, the FURY range is driven by a low speed piston. With no high speed turbines and complex gear mechanisms, there is minimal wear and servicing. The FURY indexing mechanism provides an evenly spaced wash pattern and the tankwasher nozzles are designed to give effective surface coverage with high impingement. Operating between 4 and 12 bar pressure (58 and 174 psi) the FURY range covers cleaning diameters of up to 26 meters (85 ft) and rinsing diameters of up to 32 meters (105 ft).
Please contact cip@breconcherry.com for further details.
|
|
URACA%u2019s tank cleaning heads TWK125-1600 are driven by high pressure water. The characteristic features are compact water jet, minimum displacement circle and minimal pressure losses. For use free on hose or via fixed positioning.
- Operating pressure max:1,600 bar
- Recommended flow rate: 30 - 150 l/min
- Displacement circle min. Ø: 125 mm
- Weight: 10.5 kg
|
|
|
|
|
|
THE TROLL BALL RANGE
The Troll Balls simple and effective drive mechanism ensures slow constant rotation speeds. This action provides consistent cleaning when using different cleaning fluids across a wide temperature range. The minimal moving parts provide a very low maintenance, compact cleaning solution.
The Troll Ball is ideal for replacing fixed or rotating spray balls. Operating between 3 and 12 bar pressure (43.5 and 174 psi) The high energy, high impact jets provide very effective impingement up to 3.25 metres (10.5 ft), meaning a single unit can clean vessels up to 6.5 metres (21 ft) in diameter. Compact in design, effective in performance, they meet all the essential FDA material requirements and are also available in ATEX exempt form. This makes the units highly suitable for the pharmaceutical, biotech, food, beverage and other hygiene conscious industries.
Wash fluid drives a simple rotating motor, which drives the rotating ball. All the wash fluid exits the unit through the small number of large holes. The specially designed pattern of holes ensures the high power jets use the minimum amount of wash fluid to deliver optimum performance.
The low wear design requires minimal maintenance. Any spare parts, technical assistance or repair facilities required can be obtained through the global Breconcherry distributor network. As with all mechanical devices, it is recommended that the unit be regularly inspected for correct operation.
Please contact cip@breconcherry.com for further details
|
|
|
|
|
|
THE TORUS RANGE
The TORUS is ideally suited for applications where low flow and low pressure demands are critical. The ability to operate from pressures as low as 0.5 bar (7.3 psi) with flow rates as low as 15 litres per minute enables the Torus to clean many areas usually cleaned by manual means as well as replacing static sprayballs with a more dynamic wash. The TORUS range offers a choice of models which can accommodate individual customer requirements for flow and pressure dynamics..
Ideally suited to low flow, low pressure application such as glove box / biohazard containment areas, the TORUS is compact enough to be mounted inside pipe work to flush the pipe work, or used to replace standard spray balls / wash heads in larger vessels. TORUS is manufactured from FDA-approved materials to give complete sanitary compliance for the pharmaceutical and food industries. ATEX exempt versions are also available.
Wash fluid is directed through the slots on the rotating disc, dispensing a spray of fast moving droplets giving total coverage. The TORUS range is ideal for burst rinsing as well as prolonged washing with instant, strong impact performance. The TORUS is available in a 360° or 180° wash pattern and the range covers cleaning diameters of up to 5 meters (16.5 ft) and rinsing diameters of up to 6 meters (19.5 ft).
Please contact cip@breconcherry.com for further details
|
|
|
|
|
|
THE TURBODISC RANGE
With 4 different options in the range the TURBODISC is highly versatile and suits a wide variety of industries.
The wash fluid entering the TURBODISC is directed onto the precision shaped rotating disc and is distributed in a dense sphere of high impact, high energy droplets.
The Turbodisc allows for instant, 360 degree total impact cleaning, resulting in a much more effective and efficient clean when compared to a static spray ball.
TURBODSICs are suitable for cleaning small and medium size process vessels, reactors, driers, granulators, storage tanks, tablet coating machines and IBCs. Compact in design, effective in performance, they meet all the essential FDA requirements of hygiene and product purity. Used in food, beverage, biotech, pharmaceutical and other hygiene conscious industries their cost effective reliability is recognised worldwide and specified by end users, OEMs and contract design companies.
TURBODISC tank washers are ideal for burst rinsing and can be placed into the tank at any angle.
Operating between 2 and 5 bar pressure (29 and 73 psi) the TURBODISC range covers cleaning diameters of up to 5 meters (16.5 ft) and rinsing diameters of up to 7 meters (23 ft).
With only one moving part, operating on a low friction PTFE and water bearing the TURBODISC is designed to have a long, maintenance free life.
TURBODISCs are manufactured from 316L stainless steel and are available with either pure PTFE or carbon filled PTFE bearings depending upon the environment they will be operating in. Other materials are available; please contact cip@breconcherry.com for further details.
|
|
|
|
|
|
THE CHEMIDISC RANGE
The CHEMIDISC range offers powerful low cost cleaning performance manufactured in chemical resistant materials for the pharmaceutical, chemical, nuclear, and food industries where FDA CFR21 compliance, and high standards of hygiene are necessary. CHEMIDISC spray heads are ideal for burst rinsing and can be placed into the tank at any angle.
The CHEMIDISC range is available in a variety of sizes and designed for use in harsh chemical environments, as a low cost Hastelloy alternative or in glass lined vessels where its light weight means a greatly reduced chance of damaging the glass lining if dropped. CHEMIDISCs constructed in carbon filled PTFE dissipate static electricity in potentially explosive atmospheres. Pure PTFE FDA compliant CHEMIDISCs are used in many pharmaceutical and other applications where the cleaning solution is corrosive to stainless steel. PEEK is available for nuclear and specialist applications.
CHEMIDISC has a unique ball bearing free design, meaning no shedding of metal bearing debris and no failure to rotate. CHEMIDISC has only one moving part, the rotating disc which rides friction free on a hydraulic bearing. Total surface cover is achieved as fast moving, high power droplets simultaneously reach the entire surface of the tank, inlet pipe and overhead nozzles where contamination frequently occurs. Operating between 2 and 5 bar pressure (29 and 73 psi) the CHEMIDISC range covers cleaning diameters of up to 5 meters (16.5 ft) and rinsing diameters of up to 7 meters (23 ft).
Please contact cip@breconcherry.com for further details
|
|
Whatever you have to clean, from small containers up to big tanks, Lechler offers for nearly every application a large choice of tank cleaning nozzles.
Lechler tank cleaning nozzles work without expensive and defectprone remote drive systems. They are self-rotating and driven by the cleaning fluid. Most types are available in stainless steel as well as in numerous other materials, e.g. PVDF.
|
|
|

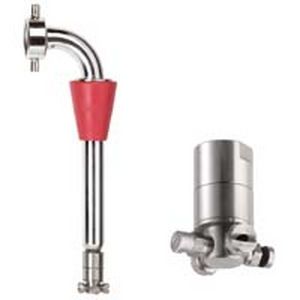

The VARITOP® Tanktop System may be equipped on choice with spray balls or rotating jet cleaners always in connection with the same basic components.The connections ( interfaces ) are identical. In contrast to spray balls, where the cleaning effect is achieved by wetting the tank wall, rotating jet cleaners have the advantage of an additional mechanical cleaning effect by the slowly rotating fan-shaped jet and the associated interval rinsing. Optimal cleaning provides highest plant availability and product quality. Tuchenhagen rotating jet cleaners are availabe with function monitoring as an option. Each cleaner, whether a cleaning lance or a jet cleaner, can be adapted to the customers requests. A fixed cleaning lance or a rotating jet cleaner can maintain an optimal introduction length and an optimised spray ball.
|
|
Tornado Nozzles do more …
than simply clean by compressed air blow! Contamination such as dust, swarf or even liquids are loosened by a powerful air-jet. Air turbulence created by the rotating movement traps and effectively removes contamination from the surface. Both rotating arms can be individually adjusted, i.e. the speed of rotations and the jet angle can be adjusted to suit the application. Tornado Nozzles only use compressed air and are absolutely reliable devices. They may also be used in explosion-risk areas.
Cleanroom version
All Tornado Nozzles are available in a cleanroom version. At an operating pressure of 6 bar, they are suitable for cleanrooms with clean-air conditions “class 100” (US Federal Standard 209E).
Tested by the Fraunhofer Institute (Institute for Production Technology) in Stuttgart, Germany.
|
|
|

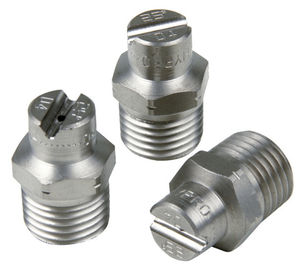

For superior spray performance at pressures from 300 to 4000 psi (20 to 75 bar) consider WashJet® nozzles. Option includes quick-connect installation options, tungsten carbide inserts and more.
|
|
TW
Tank Washing Nozzles, Clog Resistant Nozzles
Design Features
* Clog-resistant spiral design
* Energy efficient; uses less water than conventional designs
* Compact design; fits small openings
Spray Characteristics
* Easy to maintain
* Unique patterns that spray in opposing directions
* See LEM for other tank-washing applications
Flow rates: 3.0 to 163 gpm (11.4 to 260 L/min)
|
|
Ionizing Air Nozzles
Ionizing air nozzles work off compressed air to provide a source of cleaning to surfaces in the manufacturing process. Nozzles can be a single unit mounted on a bench or equipment or in series with many nozzles to reach tough areas or cover wide webs and parts.
|
|
|
|
