TK 410 One splindle copy milling machine
• Machining on three faces.
• Milling capacity: X= 2800 mm, Y= 200 mm, Z= 150 mm.
• Very sturdy structure also suitable for machining steel thick up-to 3 mm.
• Spindle with Inverter complete with adjustable revolving speed from 5400 to 12000 rpm.
• Oleo-pneumatic down stroke and up stroke of the work unit with 2 adjustable speeds: rapid (approach) and slow (milling). Stop device on the Z axis to eliminate the machining vibrations.
• Adjustable zero stops positioned on the two ends of axis X.
• Atomized automatic lubrication.
• Complete with three containrs for chips and swarfs.
Axes X, Y, Z move on linear guides
Vast work capacity
|
|
As the leading manufacturer of machines for processing aluminium and PVC profiles, we supply matured solutions for different applications.
You have profile - we rout it !
Further routers, like End milling machines, Single spindle copy routers, Multi spindle copy routers and Template free copy routers cover our product range.
|
|
PD4
COPY ROUTING MACHINE
Copy routing machine model LISI PD 4 for the drilling of PVC and aluminium sections. Vertical and horizontal milling motor. Horizontal three-spindle milling head that bores the three holes of the handle into the section and into the backing in one single operation. (Horizontal motor 900 RPM.) Two horizontal pneumatic clamps system ensuring perfect section positioning. Vertical stroke 130 mm. Width stroke 190 mm. Horizontal stroke 350 mm.
|
|
| ... products without technical information |
| |
The milling cutter F2334, with its round inserts with location flats and a sturdy fixation, ensures maximum feed rates and cutting performance, particularly when roughing difficult-to-cut materials, such as titanium alloys.
The Walter slot milling cutter, for example, doesn't only ensure enormous performance and precision for HSC operations in copy milling.

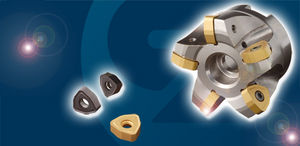

Walter milling cutter F2334
Round inserts with location flats ensure high stability insert clamping
Ideal for maximum feed rates and cutting efficiency
Ideal for roughing operations and difficult-to-machine materials
Walter finishing ball nose cutter F2139
High-precision tool with indexable inserts
Finishing cutter, ideal for HSC operations
Also available in a carbide shank version for finishing deep pockets
|
|
|
|
|
|
World's FIRST three-effective, indexable ball nose end mill allows you to increase feed rates 50%!
- Diameters: 20mm, 25mm, 32mm
- Applications: Semi-finish and finish profile milling ¦
- Materials: Steels, stainless steels, cast irons, aluminum, titanium and heat-resistant alloys
- Mountings: Cylindrical, Weldon and Morse tapers
Machine Time Reduced by 33%!
SideLok™ advantage!
- Higher metal removal rates
- Secure insert retention
- Faster indexing - retention screw remains in the cutter
- More up-time - less time lost in tool change
- Single spare part reduces inventory
Grade offering
- VP5020 - PVD coated, sub-micron grade for higher speeds with exceptional toughness machining steels, cast iron and heat resistant alloys
- VP5040 - PVD coated, high-toughness grade for heavy-duty applications in steel and stainless steels
- Suitable for dry machining without coolant
Rigid positioning of the inserts in the cutter body offers:
- Better diameter tolerance
- Less runout
- Ideal spherical form of the cutter
|
|
