Decanter Hercules Series
HERCULES 2
- Installed electrical power: 45 kW
- Rotation: 3350 max giri/min
- Centrifugal power: 2950 max x g.
- Bowl diameter: mm 470
- Hydraulic capacity: l/h 35.000
HERCULES 3
- Installed electrical power: 52 kW
- Rotation: 3350 max giri/min
- Centrifugal power: 2950 max x g.
- Bowl diameter: mm 470
- Hydraulic capacity: l/h 45.000
HERCULES 4
- Installed electrical power: 52 kW
- Rotation: 3350 max giri/min
- Centrifugal power: 2950 max x g.
- Bowl diameter: mm 470
- Hydraulic capacity: l/h 55.000
|
|
Mammoth 2
- Main motor power: 70/100 Kw
- Drum revolution max: 2700 rpm
- Centrifugal force max xg.:2350
- Slenderness ratio L/D: 3,92
- Drum diameter:570 mm
- Hydraulic capacity: 65,000 l/h
- Weight: 5.540 kg
Mammoth 3
- Main motor power: 80/115 Kw
- Drum revolution max: 2700 rpm
- Centrifugal force max xg.:2350
- Slenderness ratio L/D: 5,10
- Drum diameter:570 mm
- Hydraulic capacity: 85,000 l/h
- Weight: 6.520 kg
|
|
Centrifugal Extractor Baby series
Baby 1
- Power: 5.5 kW
- Max rotation 5,200 rpm
- Max centrifugal force 3,500 xg
- Slenderness ratio 2.48 L/d
- Bowl diameter 232 mm
- Water flow rate 2,500 l/h
- Overall length 1,700 mm
- Overall width 785 mm
- Overall height 1,090 mm
Baby 2
- Power: 7.5 kW
- Max rotation 5,200 rpm
- Max centrifugal force 3,500 xg
- Slenderness ratio 3.33 L/d
- Bowl diameter 232 mm
- Water flow rate 4,000 l/h
- Overall length 1,900 mm
- Overall width 785 mm
- Overall height 1,090 mm
Baby 3
- Power: 7.5 kW
- Max rotation 5,200 rpm
- Max centrifugal force 3,500 xg
- Slenderness ratio 4.12 L/d
- Bowl diameter 232 mm
- flow rate 5,500 l/h
- Overall length 2100 mm
- Overall width 785 mm
- Overall height 1,090 mm
|
|
Decanter 600 Series
FP 600 M
- Power 11 kW
- Max rotation 4100 rpm
- Max centrifugal force 3,300 xg
- Slenderness ratio 2,62 L/D
- Bowl diameter 353 mm
- Water flow rate 6000 l/h
- Overall length 2250 mm
- Overall width 1050 mm
- Overall height 1400 mm
FP 600 RS/M
- Power 11 kW
- Max rotation 4100 rpm
- Max centrifugal force 3,300 xg
- Slenderness ratio 3,48 L/D
- Bowl diameter 353 mm
- Water flow rate 9000 l/h
- Overall length 2550 mm
- Overall width 1050 mm
- Overall height 1400 mm
FP 600 2RS/M
- Power 15 kW
- Max rotation 4100 rpm
- Max centrifugal force 3,300 xg
- Slenderness ratio 4,32 L/D
- Bowl diameter 353 mm
- Water flow rate 12000 l/h
- Overall length 3000 mm
- Overall width 1050 mm
- Overall height 1400 mm
|
|
Giant 2
- Power 75 kW
- Max rotation 2000 rpm
- Max centrifugal force 1,570 xg
- Slenderness ratio 3.59 L/d
- Bowl diameter 700 mm
- Water flow rate 110,000 l/h
- Overall length 5,200 mm
- Overall width 2,200/3,250 (with Stab.) mm
- Overall height 2,200 mm
|
|
Jumbopress 1
- Motor power 37 kW
- Overall length 3,000 mm
- Overall width 1,470 mm
- Overall height 1,650 mm
Jumbopress 2
- Motor power 45 kW
- Overall length 3,500 mm
- Overall width 1,470 mm
- Overall height 1,650 mm
Jumbopress 3
- Motor power 52 kW
- Overall length 3,910 mm
- Overall width 1,470 mm
- Overall height 1,650 mm
Jumbopress 4
- Motor power 52 kW
- Overall length 4,385 mm
- Overall width 1,470 mm
- Overall height 1,650 mm
|
|
Jumbo 1
- Power 30 kW
- Max rotation 3,350 rpm
- Max centrifugal force 2,950 xg
- Slenderness ratio 2.51 L/d
- Bowl diameter 470 mm
- Water flow rate 25,000 l/h
- Overall length 3,000 mm
- Overall width 1,470 mm
- Overall height 1,650 mm
Jumbo 2
- Power 37 kW
- Max rotation 3,350 rpm
- Max centrifugal force 2,950 xg
- Slenderness ratio 3.38 L/d
- Bowl diameter 470 mm
- Water flow rate 35,000 l/h
- Overall length 3,500 mm
- Overall width 1,470 mm
- Overall height 1,650 mm
Jumbo 3
- Power 45 kW
- Max rotation 3,350 rpm
- Max centrifugal force 2,950 xg
- Slenderness ratio 4.25 L/d
- Bowl diameter 470 mm
- Water flow rate 45,000 l/h
- Overall length 3,910 mm
- Overall width 1,470 mm
- Overall height 1,650 mm
Jumbo 4
- Power 45 kW
- Max rotation 3,350 rpm
- Max centrifugal force 2,950 xg
- Slenderness ratio 5.12 L/d
- Bowl diameter 470 mm
- Water flow rate 55,000 l/h
- Overall length 4,385 mm
- Overall width 1,470 mm
- Overall height 1,650 mm
|
|

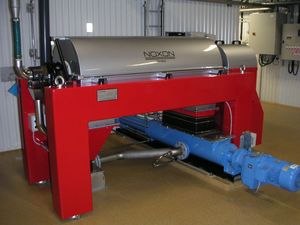

With models capable of discharging over 3500 lbs/hr of dewatered solids on a continuous basis, the NOXON decanter is the centrifuge of choice for heavy solids applications.
Many of the NOXON models are available in both concurrent and countercurrent configurations for the widest range of applications.
|
|
Horizontal DECANTER centrifuge for continuous separation of solids from liquids such as thickening and dewatering sludge, suspensions with granular solids, clarification of liquids, classification of fine pigments, etc. Flottweg provides a broad range of DECANTER sizes, from pilot scale or small production up to industrial scale with capacities of 200 m³/h.
Typical DECANTER applications:
dewatering and thickening of sludge form municipal and industrial waste water, production of plastics (PVC, HDPE, etc.), recovering of animal and vegetal basic products (oils/fats, starch, proteins) beverages (wine, beer, fruit/vegetable juices)
|
|
Special horizontal decanter centrifuge for continuous separation of solids with different densities from liquids. Flottweg range of SORTICANTER® sizes reach up to capacities of 1,000 kg/h solids, depending on the properties of the raw material.
Typical application:
plastic recycling
|
|
Horizontal decanter centrifuge for continuous separation of 3-phase systems consisting of two immiscible liquids and solids. Flottweg provides a broad range of TRICANTER® sizes, from pilot scale or small production up to industrial scale with capacities of 80 m³/h.
Typical applications:
oil sludges, recovery of animal /vegetable oils and fats, wheat starch/gluten separation, etc.
|
|
