The Vaisala DRYCAP® Dewpoint Transmitter DMT242 is the ideal choice for industrial applications where there is a need to control dryer performance in low dewpoints.
The DMT242 incorporates Vaisala’s DRYCAP® thin-film polymer sensor and auto-calibration software, a combination that makes it ideal for use in dry ambients. The transmitter provides long-term stability, fast response time and a wide measurement range with an accuracy of ±2 °C.
The DRYCAP® thin-film polymer sensor is immune to water condensation, particular contamination, oil vapors and most chemicals. Vaisala’s unique auto-calibration software corrects the possible dry end error and provides long term stability in dry conditions. Since the DMT242 transmitter can withstand even 100% condensation, its performance is unmatched for low dewpoint applications that may experience process water spikes.
The DMT242 is both compact, rugged and easy-to-use. The mechanics have been designed for extreme conditions that require protection against dust, dirt and splashed water. The housing is NEMA 4 (IP65) protected and the transmitter can withstand being installed directly into systems at 300psi maximum pressure.
|
|
|
|
|
|
EE35 Series
Dew Point Measurements down to -60°C Td (-76°F Td)
Exact dewpoint monitoring is increasingly playing a more important role in many industrial applications, such as drying processes and air pressure pipelines. For these purposes the multifunctional EE35 transmitter series offers the ideal features.
The EE35 Series is based on a functional, user-friendly housing concept and on the proven
polymer humidity sensors of the HC Series.
A specially developed autocalibration process enables measurements in a measurement range
of -60...+60 degC Td with a Td measurement accuracy of ±2 degC.
Two freely configurable and scaleable analogue outputs are available for the two measurement values (Td, T).
An optional hygrostat output, which can be set by means of a potentiometer, provides an alarm signal in a simple way when a threshold of the permitted dewpoint is exceeded.
An optional display for the measure- ment values and the associated MIN/MAX values allows a quick overview of the current situation.
Measuring range: -60...60 degC Td (-76...+140°F Td) ; 0...60 degC T (32...140°F T)
Outputs: 0-5V, 0-10V, 0-20mA, 4-20mA
Accuracy: +/- 2 degC Td; +/-0.2 degC T
Supply: 24V AC/DC
|
|
|
|
|
|
The Easidew Range is a series of instruments designed to measure dew-point and moisture content. Easidew is the most affordable range on the market but uses the newest technology. The Easidew range uses ceramic sensors to give the fastest response times, resist corrosion and cope with sudden pressure change.
The Easidew Transmitter is a two-wire loop powered dew-point transmitter designed to make dew-point measurement as easy as possible. The transmitter is fully configured and calibrated so it can be combined with any air or gas management and control system.
The Easidew On- Line is a cost effective hygrometer with digital display, analogue and digital outputs and a dual alarm feature. The Easidew On-Line is reliable and offers excellent repeatability. The Easidew On-Line can be bench or panel mounted for use in any application.

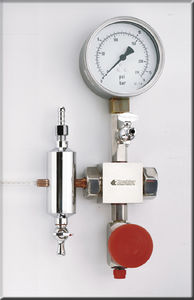

The Easidew Sampler is a general sampling system which, when used with instruments from the Easidew range, provides measurement of dew-point in compressed air and industrial gas applications. The Sampler allows a sample of gas under test to be conditioned for measurement at atmospheric or full-time pressure. The Easidew Sampler provides flow and pressure regulation and an in-line particulate filter, housing the sensor all in a single monolithic block assembly. The system can be mounted on a panel, post, or pipe brace.
The Easidew TX I.S. and Pro I.S. are both dew-point transmitters designed for use in hazardous areas. Both are certified by ATEX and thoroughly protected to avoid damage in hazardous conditions.
|
|
|
|
|
|
Optidew is based on the fundamental chilled mirror principle for dew point measurement. It offers a measurement range of <0.5% to 100% relative humidity at operating temperatures from -20°C to +90°C (however this range is extendable up to 130°C with a higher integrity sensor head). The Optidew transmitter can be used in many industrial environments. Optidew offers two linear 4-20mA outputs allowing configuration and monitoring by a suitable computer, PLC system. Michell Instruments also provides its own monitoring and configuration software with logging capability available via RS232 communication. An adjustable volt-free contact alarm is also available for direct process control. An optional high definition alphanumeric display provides local indication of the measured humidity.
Comprehensive user software makes it easy to set instrument parameters such as measurement units (RH, temperature, dew-point, g/kg and g/m3), output range, °C or °F operation etc. The software also provides a data logging and live charting facility and a min/max/average calculation.
The Optidew is available in single or two stage sensor variants according to the measurement range requirement with integrated or remote type sensors. Two display options can also be specified, providing a simple 3.5 digit LED display or a back-lit LED display.
|
|
Vaisala HUMICAP® Dewpoint Transmitter DMW19
- Designed for demanding building automation applications and other wall mount indoor applications where dewpoint measurement is needed
- Electronic, on-site, one-point field check with Vaisala HUMICAP® Hand-Held Humidity and Temperature Meter HM70
- Warranty time 2 years
|
|
ALMEMO® dew-point sensor, type FHA646DTC1
Dew-point transmitter
with current output MT8716DTC1
Especially suitable for dew-point measurement with high
level precision and long-term stability.
Digital transfer of measured values to the ALMEMO® display
section (avoids risk of inaccuracy on the connecting lines or
in the display section itself).
High-level accuracy sustained down to -80 °C.
High-speed reaction time.
Displayed variables : temperature, rel. humidity, dew-point.
Process connection for high pressures (optionally up to 350 bar).
|
|
The DMPT348 meets the requirements for demanding industrial applications where stable measurement of low dewpoints is important.
The transmitter incorporates the Vaisala DRYCAP® thin film polymer sensor and auto-calibration software. The sensor is 100% condensation proof and immune to particular contamination, oil vapors and most chemicals. Vaisala's unique auto-calibration software corrects the possible dry end error and provides long term stability in dry conditions.
Flexible configuration, many options and accessories make the DMT348 versatile and easy to use. The DMT348 outputs dewpoint, relative humidity, ppmv and temperature.
|
|
|
|
|
|
The HygroFlex series is ideal for all applications where exact measurement of humidity and temperature is of decisive importance, e.g. the food and pharmaceutical industries, printing and paper industries, meteorology, agricultural sector, archaeology, climatology, etc. There is hardly a field today in which these parameters may be ignored. It is ultimately the measuring task on hand that defines the instrument that best covers your needs.
The HygroFlex5 series offers you ultimate performance and flexibility thanks to its interchangeable HygroClip2 probes. The transmitters come in wall and duct mount versions. Many useful functions can be accessed with optional HW4 software.
HF5-Series is available with analog and digital outputs, so compatibilty with almost any monitoring or control system is assured. Digital versions may be networked togther to form a dedicated environmental monitoring system using HW4 software.
The new generation device not only has a unique calibration and adjustment process, but also allows probes to be interchanged in just a few seconds. This easy interchangeability during operation reduces down-time and service costs to a huge extent. The possibility of using every probe as a simulator with fixed output values is a big advantage for system validation. In the case of networked devices this can even be carried out online from a remote PC workstation.
Applications
High specification HVAC applications, building management systems, museums, libraries, environmental monitoring systems.
|
|
High-precision humidity sensor Type FHAD36R
Wide range of temperatures
ALMEMO® D measuring module for humidity
and temperature
Capacitive humidity sensor with integrated signal processor,
for humidity measurement at the highest accuracy level
Unique correction and adjustment process
Digital output, i.e. all correction and sensor data saved in the
sensor itself
ALMEMO® connecting cable with digital ALMEMO® D
measuring module. Cable extensions up to 100 meters and
various connection methods see page 09.06
Four climate variables displayed Temperature, relative
humidity, dew point, and function channels for mixture ratio,
enthalpy
Factory or DKD calibration is performed on the sensor alone.
Fully accurate - irrespective of connecting cable and
AMEMO® measuring instrument.
Operation in sleep mode only possible with devices with
sleep delay function (ALMEMO 2590-2/3S/4S, 2690-8,
2890-9, 5690, 8590-9, 8690-9A, with Update)
|
|
|
|
|
|
Hygromaster
Versatile hygrometer that measures humidity, air temperature and dewpoint
The Protimeter HygroMaster is an easy to use hygrometer with built in data logging capability. The HygroMaster is a hand-held instrument for taking spot measurements and for logging humidity and temperature values. Quick measurements of relative humidity, dew point, mixing ratio (grains per pound/parts per million by weight) and ambient temperature are shown on a split display at the touch of a button. Surface temperature measurements can also be measured with an optional surface temperature sensor, making this instrument especially suitable for condensation risk assessment and diagnosis.
Two types of humidity probes are offered for use with the HygroMaster, the Hygrostick (POL750) and the HumiStick(POL7750-2). The HygroStick in optimized for measuring humidity in the 30-100% rh range and may be used with Protimeter humidity sleeves that are used when measuring the equilibrium relative humidity of solid walls and floors. The HumiStick is a fast responding sensor with a range of 1-100% rh making it more suitable for general air quality applications, including outputs from dehumidifiers and HVAC systems.
Features & Benefits:
All readings are displayed on a large LCD display
The embeddable Hygrosticks can also be used to measure the ERH value of walls and floors
May be used with an optional surface temperature sensor (BLD4701) when investigating dewpoint or condensation conditions
Available with HygroStick or HumiStick and optional data cable and software kit
|
|
TK-100 Dew Point Transmitter
Measurement in -100 to +20 degC dew point at +/- 2 degC dp accuracy, by DC 24V power.
|
|
TK-100 On-line Hygrometer
A set of the TK-100 Dew Point Transmitter and the 1/8 DIN monitor, with connection cable. Measurement in -100 to +20 degC dew point at +/- 2 degC dp accuracy.
|
|
|
|
|
|
Applications: Low Humidity, Meteorology
Industries: Medical, Aerospace and Military, Test and Measurement, Transportation, General Industry, Consumer Goods
Description: Based on the rugged HS1101LF capacitive humidity sensor, HM1520LF is a dedicated humidity transducer designed for measurements at low humidity. Direct measurement of dew point or water concentration can be easily obtained in really cost effective conditions. Direct interface with a micro-controller is made possible with the module's linear voltage output.
Features:
- Tubular form for through wall mounting
- Product free from Lead, Cr(6+), Cd and Hg
- Calibrated, linear voltage for easy electronic interface
- Typical 1 to 1.6 Volt DC output for 0 to 20% RH at 5Vdc supply
- Ratiometric to voltage supply
- Patented solid polymer structure
- Full interchangeability
- Not affected by water immersion
- Controlled temperature dependency
Humidity Sensor Specific Features:
- Not affected by long period at low humidity values
- High resistance to chemical
- Fast response time
|
|
| ... products without technical information |
| |
|
|
|
|
The HygroFlex series is ideal for all applications where exact measurement of humidity and temperature is of decisive importance, e.g. the food and pharmaceutical industries, printing and paper industries, meteorology, agricultural sector, archaeology, climatology, etc. There is hardly a field today in which these parameters may be ignored. It is ultimately the measuring task on hand that defines the instrument that best covers your needs.
The HygroFlex5 series offers you ultimate performance and flexibility thanks to its interchangeable HygroClip2 probes. The transmitters come in wall and duct mount versions. Many useful functions can be accessed with optional HW4 software.
HF5-Series is available with analog and digital outputs, so compatibilty with almost any monitoring or control system is assured. Digital versions may be networked togther to form a dedicated environmental monitoring system using HW4 software.
The new generation device not only has a unique calibration and adjustment process, but also allows probes to be interchanged in just a few seconds. This easy interchangeability during operation reduces down-time and service costs to a huge extent. The possibility of using every probe as a simulator with fixed output values is a big advantage for system validation. In the case of networked devices this can even be carried out online from a remote PC workstation.
Applications
High specification HVAC applications, building management systems, museums, libraries, environmental monitoring systems.
|
|
High-precision humidity sensor Type FHAD36R
Wide range of temperatures
ALMEMO® D measuring module for humidity
and temperature
Capacitive humidity sensor with integrated signal processor,
for humidity measurement at the highest accuracy level
Unique correction and adjustment process
Digital output, i.e. all correction and sensor data saved in the
sensor itself
ALMEMO® connecting cable with digital ALMEMO® D
measuring module. Cable extensions up to 100 meters and
various connection methods see page 09.06
Four climate variables displayed Temperature, relative
humidity, dew point, and function channels for mixture ratio,
enthalpy
Factory or DKD calibration is performed on the sensor alone.
Fully accurate - irrespective of connecting cable and
AMEMO® measuring instrument.
Operation in sleep mode only possible with devices with
sleep delay function (ALMEMO 2590-2/3S/4S, 2690-8,
2890-9, 5690, 8590-9, 8690-9A, with Update)
|
|
EE371
compact dew point transmitter for measurements down to -80°C Td (-112°F Td), pressure-tight up to 100bar (1450psi), also availbale as switch
EE35
dew point transmitter for measurements in industrial applications down to -60°C Td (-76°F Td), pressure-tight up to 20bar
EE33
transmitter for measuring dew point at continous high humidity
EE45-1
condensation monitor for chilled ceilings and HVAC applications
|
|
|
|
