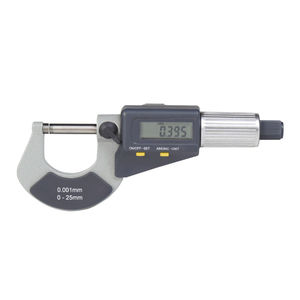

Digital Outside Micrometer - 201 Series
Protected to IP54 specifications
Rugged steel design
Large LCD display
Absolute and Incremental modes
Carbide Measuring faces
Ball attachment included
|
|
|
|
|
|

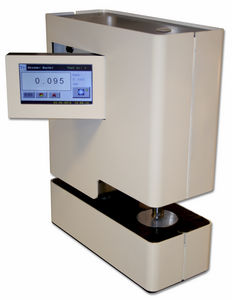

Model 49-5X is a precision micrometer for measuring thickness of sheet materials such as Textiles, Fabrics and Non-wovens. A selection of pressure feet is available to meet a variety of standards requirements. The unit also incorporates a unique cantilever system to vary the pressure exerted on the sample by adding or removing weights. Pressure foot speed and dwell time are controlled to insure accurate and repeatable test results.
APPLICATIONS
Paper, Paperboard, Corrugated, Cloth, Plastic, Rubber, Plastic Film, Textile Fabrics, Non-wovens, Felts, Geomaterials, Floor Coverings, Leathers and Wipes.
SPECIFICATIONS
(49-50) (49-52)
Range: 0 to 2 mm 0 to 20 mm
Resolution: 0.001 mm* 0.01 mm*
Accuracy: ±0.0025 mm
up to 1.25 mm ±0.025 mm
Repeatability: 0.1% of range
Operating Temp. +20°C to +30°C
*Resolution increased by a factor of ten to 0.1μm (for 49-50) and to 1.0μm (for 49-52)
FEATURES
* Large LCD display
* Electronic compensation minimizes displacement transducer non-linearity
* Rigid cast aluminum base assures thermal and mechanical stability
* Foot switch allows hands-free operation of test button
* RS-232 data output
* Range: 0 to 2 mm and 0 to 20 mm
* Resolution: 0.001 mm*
* Accuracy: ±0.0025 mm up to 1.25 mm
* Repeatability: 0.1% of range
* Operating temperature: +20°C to +30°C
|
|
TMI 49-70 and 49-72 Series Micrometers provide the precision necessary for the critical thickness measurement of numerous sheet materials.
APPLICATIONS
Films, Foils, Tissue, Papers, Corrugated, Paperboard, Plastics, Felt, Rubber, Fiberboard, Carton board
SPECIFICATIONS
* Range of measurement:Model 49-70: 0.0 to 1.270 x .003 mm;(0.0 to 0.050 x .0001 in.)
* Range of measurement:Model 49-72: 0.0 to 12.70 x .03 mm;(0.0 to 0.5 x .001 in.)
* Standard anvil diameter 16 mm (0.63 in.)
* Load: 7.3 psi (50.4 kPa)
FEATURES
* Digital display
* Dual range (Imperial or Metric)
* Motorized automatic cycling
* 5-second test cycle
* Special anvil diameters and dead weight loads available upon request
* Calibrated gauge blocks are available to meet your needs
|
|
|

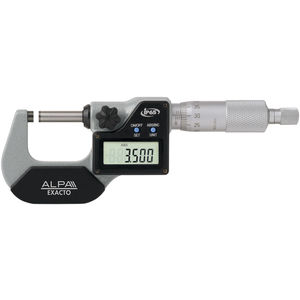

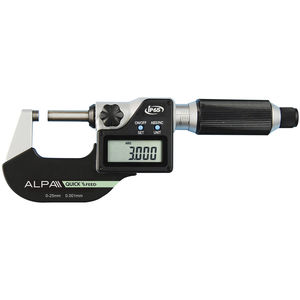

Micrometer for external measurements with digital reading. Frame in steel. Hardened screw and contact surfaces in carbide. Direct mm./inch conversion. Set to zero in any position. Serial number. Manufactured as per DIN 863/1. Supplied in case.
|
|
A micrometer sometimes known as a micrometer screw gauge, is a device used widely in mechanical engineering and machining for precisely measuring, along with other metrological instruments such as dial calipers and vernier calipers. Micrometers are often, but not always, in the form of calipers. Shop for WESTport Calipers
There are five common types of micrometers; the names are based on their application:
- Outside micrometer- (aka micrometer caliper), typically used to measure wires, spheres, shafts and blocks.

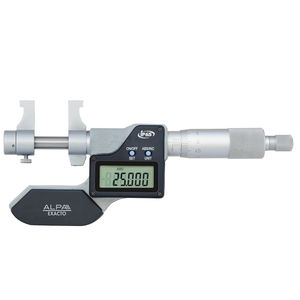

- Inside micrometer- used to measure the diameter of holes.
- Depth micrometer- measures depths of slots and steps.

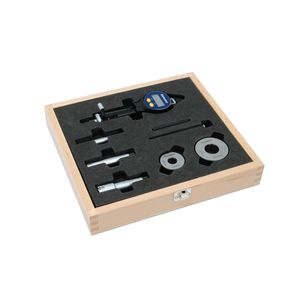

- Bore micrometer- a 3 -anvil head on a micrometer base used to accurately measure inside diameters.
- Tube micrometer- used to measure the thickness of tubes.
|
|
The Baty digital micrometer
* IP54 protection level can be used when exposed to coolant water, dust and oil
* Large LCD
* Inch-metric and zero setting
* SPC output
* Friction thimble
* Chrome plated frame
* Carbide tips
* Resolution 0.001mm (0.00005")
* Automatic power off
* Easy one handed use
* Heat insulated frame
|
|
MarConnect data output (choose between USB, Opto RS232C or Digimatic)
Ratchet integrated in thimble
Large, easy to read display
|
|
|
|
|
|
Designed to accurately perform a wide variety of measuring tasks, the new Bowers UniCal multi-purpose digital caliper range is available in 300mm, 600mm and 1000mm capacities, with larger versions available upon request. This revolutionary new technology boasts tough, lightweight reinforced beams, giving it incredible strength and weightlessness. Advanced features include a large easy to read digital display, preset facility, constant measuring force, metric inch conversion and RS 232 data output port.
Features:
* Ranges : 0 - 300, 0 - 600, 0 - 1000 (larger versions available upon request)
* Preset facility for internal / external measurement
* Constant measuring force
* Hold feature, freezes display for later viewing
* Incremental floating zero
* Metric/Inch switchable
* Resolution : 0.01 mm / 0.0005"
* MIN/MAX function
* Tolerance indicators
* 5mm Ø mounting bores on the top and underneath the gauge
* Adapters available to fit Bowers Universal Gauge accessories (see pages 32-34)
* Wide range of measuring contacts available
* Large easy to read LCD display, height of digits 8.5mm
* RS 232 output
* Water resistant
|
|
IP54 Water Resistand Digitronic Caliper - WR Series
Standard: DIN 862
Features
Water and dust resistant to IP54 specification
Functions: mm/inch conversion, on/off, zero setting
Patented ceramic capacitive sensor
Large LCD display
CR2032 battery
|
|
Code: Art. 18/54
Digital caliper with knife points for external measurements
Digital caliper in hardened stainless steel. 5 figure liquid crystal display and minus sign. State-of-the-art electronics. mm/inch conversion. Set to zero in any position. RS232C output to printer port. Micrometric adjustment screw. Slider locking screw. Knife points for external measurements. Battery powered. Serial number.
|
|
|
|
|
|
A refinement in calipers is the replacement of the analog dial with an electronic digital display on which the reading is displayed. Some digital calipers can be switched between metric and inch units. All provide for zeroing the display at any point along the slide, allowing the same sort of differential measurements as with the dial caliper but without the need to read numbers that may be upside down. Digital calipers may contain some sort of "reading hold" feature, allowing the reading of dimensions even in awkward locations where the display cannot be seen.
Even with all of these benefits, digital calipers have by no means replaced the dial caliper. Digital calipers typically do not have the beam structure of a dial or vernier caliper and therefore do not have the repeatability or accuracy to an amateur user.
Digital calipers offer a serial data output. Measurements can be taken and instantly stored in a spreadsheet or similar piece of software, significantly decreasing the time taken to take and record a series of measurements. Like dial calipers, the slide of a digital caliper can usually be locked using a lever or thumb-screw. Both dial and digital calipers can be used with accessories that extend their usefulness.
|
|
We offer three main versions of our Digital Probe
• Spring Push
• Pneumatic Push
• Feather Touch
The Probe is an absolute measuring device that delivers accurate results when switched on, regardless of any 'OFF' movements.
|
|
Patented measuring system – TESA magna µ system
New electronic caliper – The highest degree of protection ever achieved
with hand-held tools of this type – Totally immune to the penetration
of liquids and particles of metal.
Magnetic measuring system – a TESA’s technology guaranteeing full
reliability and accuracy, even in the toughest conditions of use –
SWISS MADE.
|
|
Digital Calipers
Use for inside and outside length measuring and step measuring using the four caliper jaws.
Depth measurement is provided by the slide that extends from the scale.
* Inch / metric
* 4-way measurement
* Stainless steel
* Reading 0.01mm-0.001"
* Spare battery included
* Supplied in case
|
|
MarCal Waterproof Digital Caliper 16 EW according to IP67
Accurate measurements under extreme conditions!
- Protected against water, oil, dust according to Protection Class IP67
- Inductive waterproof measuring system FPS (Fluid Protected measuring System)
- Reference-Lock-Function secures the zero position and prevents operation errors
- Chemical resistant material Ultradur for housing and buttons
|
|
1300 - 1320 Digital calipers
1300
Technical caracteristics
To DIN 862.
- Accuracy 0.01 mm.
- Resistant to water and cutting oil - IP 65.
- IP 6x = No dust penetration.
- IPx5 = Protected against water jets from any direction during 3 minutes.
- Ground stainless steel mechanism.
- Reading rule with patented inductive measuring system.
- Flat depth gauge.
- 6 mm LCD display.
- Floating zero.
- mm/inch conversion.
- Automatic shutoff.
- Battery life approximately 3,500 hours
- Supplied in a case with a certificate of conformity.
- RS 232 port.
|
|
Precision Made in Switzerland.
- Non-metallic high-tech material with 60% fibre-glass content, extreme rigidity, non-corrosive, non-magnetic, minimum thermal conductivity, electrically insulating and partially ESD tested. Resistant to chemicals (organic solvents, alkalis)
- Particularly suitable for measurements of high-quality and delicate objects. The special product properties open up further application areas not covered by metallic callipers
- Extremely wear-resistant measuring jaws for accurate measurements in the long-term, Swiss-made precision.
|
|
General Purpose Digital Contact Sensor
• Tough, Rugged: IP-67 Enclosure Rating
• Error-free Design W/ Co-transformer Method
• Total Cost Reduction W/ Simplified Set-up
• Easy and Simple Set-up
• One-push Zero Point Adjustment
• Data Communication with 10 Amplifiers
Tough and rugged general purpose digital contact sensor with push button calibration.
|
|
