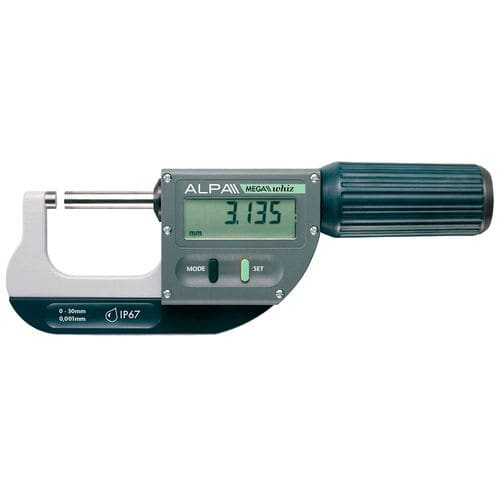

Automatic wake-up by moving the measuring spindle, sleeping mode after 20 min of no use (system S.I.S.). Position memorized in sleeping mode (system S.I.S.), absolute system. Water protected for heavy-duty work with coolants and lubricants, protection rating IP67 according to IEC 60529, even connected. Quick displacement of the measuring spindle 12 mm / rotation. Adjustable measuring force 5N / 10N (versions 903.030X), repeatability and reproducibility never reached before. Thimble in polyacetal-copolymer. Non rotating spindle.
Degree of protection
This instrument has been manufactured with a degree of protection IP67,
according to the IEC60529 standard.
– The fi rst number (IP6x) defi nes the protection against the dust.
IP6x: totally protected from dust
– The second number (IPx7) defi nes the protection against water jets.
IPx7: protected against the effects of temporary immersion in water, during 30’.
The degree of protection IP67 is also valid while the S_Connect Proximity is in use.
The positioning and quality of the rubber joint surrounding the battery cover must be checked after each battery change.
The correct positioning of this rubber joint is essential to guaranty the IP67.
