1. Bayonet connectors derived from MIL-C-26482 series 1 but using size 16 contacts (1.6mm).
- UTP - Full plastic version.
- UTG - Plastic connector with metal bayonet coupling system.
- UT0 - Metal circular connector offering top class performance characteristics.
2. High density bayonet connectors using size 20 contacts (1.0mm).
- UT0W - Metal circular connector offering top class performance characteristics.
3. Mixed power / signal connectors.
- A range of connectors with contact arrangements offered with a mix of signal and power contacts up to 44 A.
4. Push-pull connectors using size 16 contacts (1.6mm).
- MBG – Plastic connector with metal quick mating feature.
|
|
ODU – as a specialist for customized solutions have all key competences under one roof: design of parts, tools, manufacturing equipment, own tooling shop, molding, stamping, plating, turning, In-House-Design and manufacturing of assembly equipments.
With all these possibilities we are able to offer “customized” solutions for our customers.
Reasons for a custom specific solution are:
Function, Design, Exclusiveness, Costs
Examples for custom solutions: Connectors for MRI, Heart Assist Device, house hold appliance, Connectors for Chip Card reader for diabetes device, Connector for Patient monitoring, compl. Industrial control and so on.
|
|
Description
Derived from 851 / Mil-C-26482 I
Shells in stainless steel: high resistance to corrosion
Sealing level IP 67 enhanced with interfacial seal on receptacles
3 different keying positions color coded:
-keying N : gray
-keying G : red
-keying H : blue
-keying U : green (universal keying)
Two layouts available: shell size 20 with 16 contacts and shel size 16 with 8 contacts
Plugs delivered without coupling ring
Not intermateable with Mil-C-26482 series 1
|
|
|
Rosenberger offers a wide product range for applications in industrial test & measurement such as RF high-precision connectors and adaptors, test accessories and test components.
|
|
CMB
Screw coupling bronze connector for signal, control or power.
Intervehicle, roof or underframe location.
For harsh environment and several daily couplings.
6 shell sizes / 31 arrangements from 1 to 61 poles.
Removable hard insert / silver or gold plated crimp contacts.
Features & Benefits
Nominal current : from 15 A to 500 A
Service voltage : from 110 V AC to 1500 V DC
Test voltage : 2550 V, 3250 V or 5750 V
Protection index : IP66 mated with suitable backshell according to EN 60 529
Salt spray resistance : > 500 hours
Temperature range : -40 degC / +100 degC
Endurance : > 500 coupling cycles
NF F 61-030 standard compliance
For very harsh environment
Fire behaviour : requirement 2 following NF F 16-101 & NF F16-102
RoHS compliance
Standards and Quality Approvals
ALSTOM approval
Technology/ Coupling System
Environmentally Sealed
Screw thread
|
|
9 DFR / 9 DFR H
MIL-C-5015 connectors type especially designed for high temperature (+350°C max).
Stainless steel water-tight circular connectors with passivated finish with screwed locking. Available in 7 shell sizes and 8 arrangements from 3 to 61 contacts, with sizes 8 and 20. A plug, a squared and circular receptacle, hermetic versions and numerous accessories.
Features & Benefits
Mechanical durability: 3000 mating and unmating operations
Mechanical shocks: As per test 8A of CCTU 01 - 01 A
Durability temperature: Class 1: 1000 hours at 250C
Durability temperature: Class 2: 1000 hours at 350C
Vibrations As per CCTU 01 - 01 A and Spec. SNECMA YZ 185
Contact type: Crimp type - Nickel plated
Operating temperature range: Classe 1: -55C to +250C
Operating temperature range: Classe 2: -55C to +350C
Good vibration rating, Fire tests at 1093C
High temperature
Standards and Quality Approvals
NF-L 54145
Technology/ Coupling System
Hermetically Sealed
Environmentally Sealed
Screw thread
|
|
|
|
|
|
9316 series
Stainless steel circular connector that can be emerged underwater for high pressure saltwater applications.
Available in 7 shell sizes and 23 classic arrangements.
Explosion proof and hermetic versions also available.
Features & Benefits
Current rating: from 5A to 600A
Operating temperature range (standard): -55C to +125C
Operating temperature range (explosion proof connectors):-55C to +85C
Pressure rating: 750 bars for 9306 series
Pressure rating: 150 bars for 9316 series (hermetic receptacles)
7 shell sizes and 23 arrangements with gauge 0, 4, 8, 12, 16 and 20 available
Material: Stainless steel AISI 316 L passivated
Bronze screw coupling
500 mating and unmating cycles
Hermetic feedthru also available
Signal contacts to crimp, power contacts to solder, coaxial and optics contacts
Standards and Quality Approvals
Qualified for anti explosion EN 50014 and EN 50018
Technology/ Coupling System
Fibre Optic
Hermetically Sealed
Microwave
High power
Environmentally Sealed
Screw thread
|
|
|
|
|
|
983 R / RS / W / WS
Fine threaded coupling electrical connectors with secure self locking for engines, under carriages, APU and pylon applications and harsh environments.
All electrical connectors Deutsch 983 series are intermatable and interchangeable with connectors in accordance with MIL-C-83723 series III and NF-L-54143
Features & Benefits
Shell: Material: R & RS: Aluminium nickel: / W & WS: Aluminium olive drab cadmium
Insert: Material: R, RS, W & WS: Thermo-setting and silicone
Contacts: Crimp type, removable, plating gold
Operating temperature range: R & RS: -65C to +200C : W & WS: -65C to +175C
Salt spray resistance : W &WS: 500 h / R&RS : 96 h
Shell to shell metal bottoming (Plug and receptacle mated)
Anti-rotation system on 360 by tightening - Self-locking system all plug
Reduced elastomer barriers to use new and old generations of wires
High temperature resistance
Long duration salt spray
Standards and Quality Approvals
EN2997
SBAC ESC10
Boeing BACC63
EN3155
ESC30
MIL-C-39029
MIL-C-83723 Series III
Technology/ Coupling System
Environmentally Sealed
Screw thread
|
|
ABBMS Series. ABBMS Bayonet connectors are based on Mil-C-5015 and are approved to BS9522-F0032, and conform to VG 95234 (Germany).
ABB Connectors feature bayonet lock coupling, crimp or solder contacts, protection against water ingress and excellent shielding and continuity characteristics between mated connectors.
The connectors are available with standard polychloroprene insulators which remains flexible at temperatures up to 125°C during a 1000 hour test programme.
A limited number of contact arrangements are available with high temperature insulators which operate between -40°C to +190°C. (HTABBMS)
|
|
Hypertac also expands the quality of its connectors to the sub-system supply, either rack & panel or cable assembly, offering one source supply service to its valued customers:
• electronic, fiber optic and hybrid connections
• 100% testing of all assemblies
• small to large volume capacity
• overmold capabilities
|
|
|
InterConnect Adapters are available to funnel the wiring to a VXI chassis. Connector cover plates are optional replacements to the standard cover plates and allow wiring to enter or exit the funnel through different VXI instruments or receiver modules.
|
|
Its excellent position in terms of market prices and our short lead-times (3 weeks for the most common versions) make it a reference in the field of cylindrical bayonet metal interconnection.
Technical advantages :
- many versions available: watertight (IP66/67), hermetic, shielded, etc.
- resistant to many fluids
- resistant to shocks and vibrations
- operational from –55° to +125°C
Proven world standard, the 451 series comprises a wide range of products :
- 9 shell sizes available
- 35 insert arrangements and up to 61 contacts
- Types: solder, crimp or PCB contact
- Shell finishes: electroless nickel, bright or olive drab cadmium plating, black anodised
- Thermocouple contacts as standard
|
|
Mil-DTL-38999 connectors are designed and approved to meet the most stringent requirements of the Military and Aerospace industry. Amphenol’s Mil-DTL-38999 and derived products range covers light weight, low profile, ruggedised, EMI protection and scoop proof connectors .
The large contacts arrangements range provide from 1 to 128 rear release crimp contacts. Contacts sizes available : 22, 20, 16, 12, 8.
Each Mil-DTL-38999 series integrate 5 safe coding possibilities in a large range of shell form, material and finish. Different closing systems are available to fit the best each customer need.
Amphenol provides the largest range of Mil-DTL-38999 connectors worldwide (more than 60 contacts arrangements and lots of versions which are not covered by the US military standards).
Applications : military, avionic, aerospace, industry, …
|
|
For sixty years, the HCC Industries family of companies has been providing the technological know-how to meet the unique requirements of the defense and aerospace industries, as well as those customers in other industries using circular connectors in their applications.
|
|
|
|
|
|
Plug Assemblies Directory
• 1680 Series / 400hz AC Assembly
• 1688 Series / 400hz AC Assembly
• 1690 Series / 400hz AC Jumper Cable Assembly
• 1691 Series / Single Point Refueling
• 1701 Series / 400hz Extension Cable Assembly
• 1711 Series / 400hz Cable Assembly
• 3150 Series / Round AC Assembly
• 3151 Series / Round AC Assembly
• 3152 Series / Round AC Assembly
• 1620 Series / DC Assembly External Power
• 1627 Series / Assembly External Power
• 1480 Series / DC Assembly External Power
• 1490 Series / Extension Cable Assembly
• 1730 Series / Single Point Refueling
• 2201 Series / Jet Starting External Power
• 2204 Series / Jet Starting External Power
Receptacle Assemblies Directory
• AN3114 / DC Aircraft & Ground Equipment
• AN2552 / DC Aircraft & Ground Equipment
• MS25018 / DC Aircraft & Ground Equipment
• MS90362 / DC Aircraft & Ground Equipment
• 1940 Series / AC Female - Panel Mounted
• 4121 Series / Round Ground Equipment Mounted
• 4122 Series / Round Ground Equipment Mounted
• 1991 Series / DC Female - Panel Mounted
|
|
|
|
|
|
HCC Industries is dedicated to providing quality products and service. As the nation's largest and most experienced vertically integrated designer and manufacturer of glass to metal and ceramic to metal seals, HCC has the capability to create hermetic connectors that support military and federal requirements.
The Qualified Products List provides the mil spec hermetic requirements that HCC's QPL product line adheres to, as well as the appropriate product identification and test reference to ensure you receive the highest quality product for your specific project conditions.
We specialize in creating custom MIL-STD solutions to fit a specific project's stringent requirements and precision standards. Our hermetically sealed connectors offer high reliability and quality that is required for completion of critical tasks.
With over 60 years of experience adhering to strict product requirements, HCC is confident in our ability to provide quality QPL products to a wide range of industries. We work with your program's mil spec hermetic specifications to create uniform, hermetically sealed connectors.
|
|
CMS Series. CMS, Commercial MS connectors are based on the SBMS range and conform to the general requirements of MIL-C-5015. CMS satisfies the commercial and industrial demand for quality, reliability, low cost and established design features.
Intermateability and interchangeability with existing MS-A types is assured.
CMS connectors feature robust aluminium alloy shells with bonded monobloc neoprene insulators. Contacts are solder types and range between 2 & 37 in number dependant upon arrangement.
A wide selection of accessories is also available.
Further details on the CMS range available on request from the factory.
|
|
|
High Speed connector series for the Advanced Mezzanine Card according to the AdvancedTCA and MicroTCA standards. Also MCH plugs for MicroTCA.
|
|
|
High Speed connector series for the Advanced Mezzanine Card according to the AdvancedTCA and MicroTCA standards. Also MCH plugs for MicroTCA.
|
|
Industrial multipole connectors are specially designed for applications in extremely rough environments.
revos handles even the toughest jobs, for the powder-coated aluminum housings protect against mechanical wear and prevent ingress of splashing water or dust.
Clear assignments when wiring, service-friendliness in the case of maintenance and individual marking options help you to maintain an overview at any time.
revos makes the installation of machines and industrial systems easier and helps to save time.
|
|
|
|
|
|
Winchester Electronics now offers the QC-SMA™ series which incorporates a push/pull style
of mating that does not require special tooling for mating/unmating, unlike the standard SMA which needs to be torqued to be properly installed. These connectors are RoHS compliant.
Winchester's QC-SMA™ Plugs are fully intermateable with any standard SMA Jacks or Winchester's SMA Bulkhead Jacks.
Electrical performance is comparable to a standard SMA up to 6 GHz, and mating life is 500 cycles minimum with minimal change in electrical performance.
Typical applications would be PCB Test Boards, Microwave Subsystems, Base Stations, Test Equipment, Mobile Radios and anywhere a quick connection is required.
Product Benefits:
- Push/Pull connection system allows for quicker mating.
- When mated, the connectors can rotate 360 degrees.
- Electrical performance up to 6 GHz when compared to a standard SMA.
- Compact design that utilizes SMA standard spacing down to .500 centers.
- Designs are available for both flexible and semi-rigid type cables.
|
|
|
|
|
|

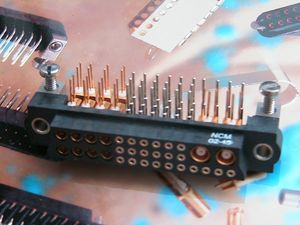

The Winchester Rack and Panel product line is one of the most comprehensive pin and socket style connector systems available for cable-to-cable, cable-to-panel, and cable-to-board applications. The extreme versatility of Winchester's Rack and Panel line allows this connector system to be used in a wide variety of industries including industrial, military, aerospace, instrumentation, and telecommunications.
The Rack and Panel product line consists of molded insulators, screw-machined contacts, anodized aluminum hoods and protective shells, and a wide assortment of mating hardware. Other important features of the Rack and Panel product line include:
- Insulators available in a wide range of position sizes depending upon the product series.
- Solder cup, crimp, and dip solder PCB contacts available in pin diameters of .062, .040, .030, and .025 inches with current ratings of 13, 7.5, 5 and 3 Amps.
- Contacts pre-loaded into insulators or sold separately.
- Top or side opening cable hoods for applications requiring 180- or 90-degree cable exit.
- Male plug and female receptacle protective shells help to protect connector interfaces during handling as well as to provide polarization to ensure connectors are mated correctly.
- Wide assortment of mating hardware and accessories including fixed and turnable jackscrews and sockets, guide pins and sockets, mounting plates, and gaskets.
|
|
CompactPCI is an open bus architecture based on the Peripheral Component Interconnect specification (PCI) for desktop computing. The growing demands of commercial and industrial computing require more robust form factors, which have lead to the development of CompactPCI. The CompactPCI specification was developed in 1994 by an industry standards group, PICMG (PCI Industrial Computer Manufacturers Group), and uses industry standard components with high-performance connectors to maximize system performance for rugged applications.
Today, PICMG consists of 650 member companies that continue to work together to improve and expand upon the performance of CompactPCI. Winchester Electronics is an Executive Member of PICMG and is actively involved in the continuing development of high performance products to support CompactPCI applications.
|
|
Data Bus Assemblies
Various - Data Bus AssembliesData Bus Assemblies. AB Connectors can offer solutions ranging from discrete connectors and contacts up to complete cabled and tested systems. AB databus products conform to the requirements as defined in MIL-STD 1553B, Def. Stan. 00-18 and Def. Stan. 00-19.
Connectors styles are ruggedised for extremely harsh environments i.e. naval, fighting vehicles and mass transportation or lightweight which are especially suited to aerospace applications. The contacts which have the mating geometry MIL-C-39029/90-91, have been designed to simplify the crimping and assembly processes.
AB Databus connectors and systems are proven on current fighting vehicle programmes including active service situations.
Full bespoke harness / system design available.
Full technical information can be obtained by contacting the AB Connectors sales office.
Further details on the Various range available on request from the factory.
|
|
EMI/RFI Filtered Connectors
Various - EMI/RFI Filtered ConnectorsFilter Connectors. The concern over interference in sophisticated electronic equipment, now operating on lower power levels, has seen an increased use of in-line filter devices to suppress either the effect of externally generated interference, or to reduce emissions from the equipment itself.
AB Connectors have engineered solutions which can be adapted to may of the market standard connector ranges, making retro-fitting to existing equipment a quick and effective solution, to EMI/RFI problems.
As an alternative AB Connectors produce Interface Filter Adaptors which simply plug in between existing connectors, thereby making modification in the field a simple and cost effective option.
Connector Types
MIL-C-5015
MIL-C-38999
MIL-C-26482 Series 1
Further details on the Various range available on request from the factory.
|
|
|
|
|
|
High Density Screw Coupling Connector
Mk35 - High Density Screw Coupling ConnectorMk 35 Series. Mk35 Series. The AB Connectors Mk35 Connector series is derived from the American Mil-C-38999 Series III specification. The connectors intermate and can be interchanged with the standard Series III connector, but to ensure optimum performance in the most severe environments, Mk35 connectors feature nickel aluminium bronze as the material for shells, coupling nuts and other major components.
Mk35 connectors feature 100% ‘scoop proof’ design and coupling is achieved by a triple start course thread. The connectors also feature a self locking antivibration mechanism for secure mating in high vibration environments.
Contacts which conform to Mil-C-39029 are crimp rear insertion, rear extraction and the socket is protected from probe damage by using a restricted entry design. Sealing between mating connectors is by compression of a interfacial seal and around each individual contact. A comprehensive range environment/plain backshells and accessories is available.
AB Mk35 connectors are approved to the stringent requirements of CECC 75 201 002 Specification.
Further details on the Mk35 range available on request from the factory.
|
|
ABXS. With its ingenious ball-bearing coupling mechanism, the ABXS Miniature Push-Pull Connector is easy to use and provides a reliable interconnect for signal and power in audio, control and instrumentation applications. The range has two shell sizes housing 3 to 9 gold plated contacts in a range of aesthetically pleasing long life shell finishes.
The ball-bearing mechanism provides easy connection by pushing on the back accessory and easy disconnection by pulling on the coupling nut. The connector cannot be disconnected by pulling on the cable or backshell using normal force.
The shells are made from copper alloy with a choice of finishes in bright nickel or black epoxy.
|
|
Audio Miniature Bayonet Lock Connectors
AB06 Series. AB06 connectors are a development of the established AB05 range and are particularly suitable for tinsel cordage applications in audio equipment.
Designed to the requirements of the Royal Signals and Radar Establishment, AB06 connectors are available in shell sizes 8, 10 and 12, and offer all the performance characteristics and design features of AB05 (Pattern 105) connectors. An alternative 'snatch' type coupling nut for quick release applications is available in shell size 10.
Accessories include straight polychloroprene sleeves for tinsel cordage, 90° outlets, and protective caps.
|
|
Stainless Steel Bayonet Lock Connector
ABSB - Stainless Steel Bayonet Lock ConnectorABSB Series. Based on the ABBMS Series of bayonet coupling connectors the ABSB range features shells and accessories manufactured from high corrosion resistant stainless steel.
Ideally suited for marine applications, the ABSB range is also for projects where harsh, highly corrosive environments will be encountered.
The standard accessory is designed to accept jacketed screened cable and heat shrink boot.
Performance of the connector is generally to VG 95234 with additional environmental requirements.
Further details on the ABSB range available on request from the factory.
|
|
|
|
