Intel offers a complete line of industry-leading single and multi-port Gigabit and Fast Ethernet controllers with integrated MAC and PHY, providing high performance, low power consumption, and a smaller footprint. Offering 1Gbps or 100Mbps network connections, PCI Express (PCIe), PCI, PCI-X, SPI4-2 or LCI bus interfaces, 16, 32 or 64 bit architecture, Intel produces Ethernet controllers that enable faster, smaller, simpler designs.
|
|

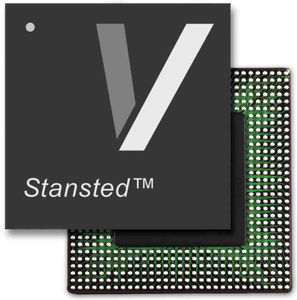

Building on its expertise as the world leader in circuit switch technology, Vitesse continues to demonstrate its focused commitment to Gigabit Ethernet (GbE) by offering the broadest range of GbE devices optimized for today's key applications.
Vitesse's Ethernet switch products, integrated copper PHYs, and Media Access Controllers (MACs) provide high-performance, fully-integrated, cost-optimized GbE and 10 GbE system solutions for replacement of existing 10/100 network.
|
|
| ... products without technical information |
| |
|
|
|
|
Industrial communication has become a key technology of industrial automation. Modular machine structures and the necessity of data management require new concepts of networking automation systems.
For this reason, Jetter AG has developed JetWeb technology - a solution that is based on Ethernet, widely-used in most companies from factory to office floor. Jetweb technology is a trendsetter in the market and offers a whole range of significant advantages:
- One Single integrated networking technology for the entire manufacturing realm
- Transparent communication between all devices of a plantin a company
- Integration of machines into the company's IT system
- All devices can be programmed and serviced from any free Ethernet port
- Transparent access to any device allows for uncomplicated commissioning and servicing
- Network technology with high reserve capacities
- Ethernet is the leading standard in the IT-world
- Plug & Play functionality – unaidedautomatic log-on of devices to, and log-off from the network.
- Benefits will increase as IT standards are developed further (e.g. 10 Gbit/s Ethernet)
- Wireless-LAN for mobile applikations
|
|
IP-44 compliant 3.5" or 5.7" TFT LCD panel with 24/6 keys rubber keypad
SME-573 LCD is with touch panel
Embedded PXA 270 CPU, audio with MIC-In and Line-Out and 3 slots for
high profile I/O modules with expansion ability
(Ethernet, RS-232/422/485, CAN bus)
Comes with 64-bit hardware serial number for software protection
Embedded Windows CE.NET 5.0
Easy remote maintenance via Ethernet and built-in OPC Server for SCADA software
Integrates local/remote I/O modules via RS-232/485 or Ethernet
Supports Modbus protocols
Dual battery backup 512KB SRAM
Supports operating temperature: -20 to 70°C
|
|
IP-44 compliant 3.5" or 5.7" TFT LCD panel with 24/6 keys rubber keypad
SME-573 LCD is with touch panel
Embedded PXA 270 CPU, audio with MIC-In and Line-Out and 3 slots for
high profile I/O modules with expansion ability
(Ethernet, RS-232/422/485, CAN bus)
Comes with 64-bit hardware serial number for software protection
Embedded Windows CE.NET 5.0
Easy remote maintenance via Ethernet and built-in OPC Server for SCADA software
Integrates local/remote I/O modules via RS-232/485 or Ethernet
Supports Modbus protocols
Dual battery backup 512KB SRAM
Supports operating temperature: -20 to 70°C
|
|
|
|
|
|
Galil's DMC-21x3 Ethernet motion controllers are designed for extremely cost-sensitive and space-sensitive applications. These controllers are typically half-the-price and half-the-size of box-level Ethernet controllers. These intelligent, card-level controllers can be purchased with plug-in, multi-axis amplifier boards which eliminate wiring between the controller and drives. Amplifier boards are available for driving stepper, brush and brushless servo motors up to 500 Watts. Or, the ICM-20100 break-out board can be used for easy connection to external drives.
The DMC-21x3 series is available in one through eight axis versions and can be configured for control of step or servo motors on any combination of axes. The card-level controller measures just 4.25" x 7.0" for one through four-axis models and 4.25" x 10.75" for five through eight axes. Any mode of motion can be programmed including linear and circular interpolation, contouring, electronic gearing and ecam. As with all Galil controllers, programming the DMC-21x3 is simplified with two-letter, intuitive commands and a full set of software tools such as GalilTools for servo tuning and analysis, and the ActiveX Tool Kit for Visual Basic users.
|
|
|
|
|
|
Galil's CDS-3310 is a single-axis controller and drive system for precisely controlling a brush or brushless servo motor. It combines a high-performance, programmable motion controller with a 500W PWM drive in a compact, cost-effective package. The CDS-3310 provides a 10/100 Base-T Ethernet port and individual CDS-3310 units may be connected on a distributed network and programmed as a single controller. The communication burden is minimized because the host PC only has to talk with the master CDS-3310, which in turn communicates with the other CDS-3310 on the network.
The CDS-3310 incorporates a 32-bit microcomputer and provides such advanced features as PID compensation with velocity and acceleration feedforward, program memory with multitasking for simultaneously running up to eight programs, and uncommitted I/O for synchronizing motion with external events. Modes of motion include point-to-point positioning, jogging, contouring, electronic gearing and ECAM. As with all Galil controllers, programming the CDS-3310 is simplified with two-letter, intuitive commands and a full set of software tools such as WSDK for servo tuning and analysis, and the ActiveX Tool Kit for Visual Basic users.
|
|
|
|
|
|
The DMC-40x0 motion controller is Galil's highest performance, stand-alone motion controller. It belongs to Galil's latest generation motion controller family: the Accelera Series, which accepts encoder inputs up to 22 MHz, provides servo update rates as high as 32 kHz, and processes commands as fast as 40 microseconds-10 times the speed of prior generation controllers.
The DMC-40x0 is a full-featured motion controller packaged with optional multi-axis drives in a compact, metal enclosure. The unit operates stand-alone or interfaces to a PC with Ethernet 10/100Base-T or RS232. The controller includes optically isolated I/O, high-power outputs capable of driving brakes or relays, and analog inputs for interfacing to analog sensors. The DMC-40x0 controller and drive unit accepts power from a single 20-80 VDC source. The DMC-40x0 is available in one through eight-axis formats, and each axis is user-configurable for stepper or servo motor operation.
Like all Galil controllers, programming the DMC-40x0 is simplified with two-letter, intuitive commands and a full set of software tools such as WSDK for servo tuning and analysis, and an ActiveX Tool Kit for Visual Basic users.
|
|
|
The MAXnet is a Ethernet / RS232 motion controller with up to 5 axes of user-definable servo & stepper motion control. The MAXp is built on a PowerPC 32-bit RISC processor running at 266 MHz. The use of this processor delivers exceptional servo control, capabilities, quality, and application performance on multi-axis requirements. All signals, data points, and the PID loop update every 122μs on all 5 axes. Each axis of the MAXnet controller can be configured as a servo, open loop stepper, or a closed loop stepper.
|
|
| ... products without technical information |
| |
The Wildcat gives OEM designers optional Ethernet connectivity in a low-cost, high-performance single-board computer. These compact boards are rich with the digital I/O, A/D, and D/A designers need for embedded control and monitoring applications, and the Wildcat's compact board allows for easy integration.
Ethernet models are ideal for remotely monitoring and supervising another programmable system or web-enabling new or existing products.
|
|
PMC Gigabit Ethernet Controller
32/64-bit, 33/66 MHz PCI and/or 66/133 MHz PCI-X operation PMC Module
1 or 2 independent Gigabit Ethernet channels
Copper and/or optical transmissions supported
Auto detect of 10 Base-T,100 Base-TX or 1000 Base-T in copper network configurations
|
|
|
|
|
|
Model ROBO-N201G
One-port Gigabit Ethernet extension module with Portwell OmniPCI connection interface
Intel® 82540EM
Compact sized
Proprietary PCI connector for piggy back (board to board) connection
Fully PCI Bus spec. V2.1 compliant
One accessory card for extension Ethernet port(s), Link, and Speed indicators (Two LED indicators; one shows green when linked and blinks when transmitting or receiving data, the one shows green when linked at 100 Mbps and yellow when linked at 1000 Mbps)
One Ethernet RJ-45 daughter board and one daughter card
Support IEEE 802.3
Auto-negotiation algorithm of full-duplex and half-fuplex operation for 10 Mb/s and 100Mb/s (NWAY)
Dimension : 77(L) x 52(W) mm
Model ROBO-N100P
Fast Ethernet extension module with Portwell OmniPCI connection interface (P4 solution)
For Intel® Pentium® 4 processor based SBC
Intel 82559
Compact sized
Proprietary PCI connector for piggy back (board to board) connection
Fully PCI Bus spec. V2.1 compliant
One Ethernet RJ-45 daughter board and one daughter card
Support IEEE 802.3
Auto-negotiation algorithm of full-duplex and half-fuplex operation for 10 Mb/s and 100Mb/s (NWAY)
Dimension : 77(L) x 52(W) mm
|
|
