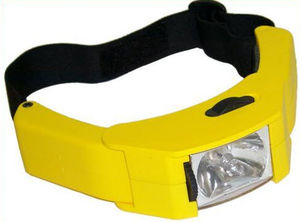

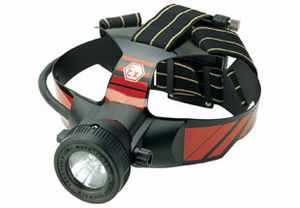

Intrinsically-Safe LED Headlamp Lite-Ex KL 10
The Lite-Ex KL 10 is an extremely light and very bright LED headlamp for use in ex-areas. Certified for use in areas classified as zone 1 and 21 in accordance with norm 1999/92/EG (ATEX137).
|
|
|
|
|
|
Petzl, inventor of the headlamp
At night or in dark spaces, it's important to be able to work hands-free. To address those needs, Petzl invented the headlamp in the early 1970s. Since then, Petzl has continuously been the leader of technological innovations, offering headlamps adapted for specific activities.
Our wide range of headlamps addresses a multitude of needs: from the simplest of tasks to technical work in extreme environments.
The Petzl line of headlamps includes:
universal headlamps: multi-purpose, with long-range lighting and long light durations, with little bulk,
special purpose headlamps: heavy duty, powerful and waterproof,
headlamps for hazardous locations: for use in potentially explosive environments,
compact headlamps: lightweight and simple, can be carried anywhere.
All Petzl headlamps are individually tested and guaranteed for three years. They are water resistant for all-weather use. They use high quality bulbs (halogen, krypton, LEDs) and the light beam can be easily aimed. The adjustable elastic headbands give them stability and comfort.
The Petzl difference
1- 2- Lighting power
The quality of the light depends on the light source. The LEDs used by Petzl are chosen from the highest quality LEDs available.
Grouping several LEDs in the same housing or using a high output LED allows the headlamp to project a powerful light beam.
3- The Wide Angle lens enlarges the beam
Unique to Petzl, the Wide Angle lens slides or flips over the LED to diffuse the beam with a single, quick movement. It allows the user to switch between focalized long-range lighting and diffuse proximity lighting. A single light source can address multiple needs.
4- New colors
Compact headlamps (TIKKA, ZIPKA...) are now available in the Work Solutions colors : yellow and black.
|
|
Portable Ex-Lamps
Explosion-protected torch-, handlamps and seachlights for use in zone 0, 1, 21 and 22 hazadous areas as well as operation conform to ADR-guideline (94/55/EC).
|
|
Repair Light Series 6149:
By using modern cold cathode tubes extrem long service lifetime
Suitable as well for machine lighting
Anti-roll design in the hand grip
Adjustable light direction via suspension hook
Life expectancy more than twice of normal fluorescent lamps
|
|
Intrinsically-Safe Inspection Lamp ISL 200 / 400-Ex
The ISL 200-Ex and the ISL 400-Ex are robust, cable-connected inspection lamps for industrial use in explosion-prone areas for zones 1 and 21 according to norm 1999/92/EG (ATEX 137). The inspection lamps are especially notable for their bright and extremely long-lasting illuminants.
|
|
| ... products without technical information |
| |

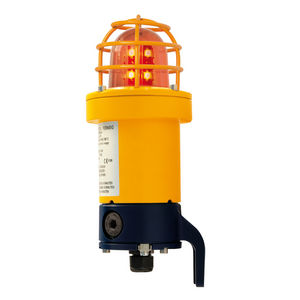

The EDLM (3 color LED) and EDWM (5 color LED) are innovative LED signal towers with pressure and flame-proof housing designed specifically for use in potentially flammable and explosive atmospheres, such as chemical, petrochemical, mineral/natural gas production, food industries and combustible dusts.
* Zone1, 2 (II2G Ex d IIC T6) and Zone21, 22 (II2D Ex tD A21 IP66 T80C)
certified.
* Available in 3 color LED (EDLM) and 5 color LED (EDWM) style.
* Super bright LEDs provide long service life, maintenance-free operation.
* Flashing and/or continuous lighting
* Wall mount, flush mount and horizontal mount possible with supplied
mounting
@@ brackets.
* IP66
|
|
Federal Signal's Model 121X Series C rotating light flashes 90 times per minute and produces a 360 degree visual signal. This explosion-proof light has an incandescent lamp and is available in five lens colors - amber, blue, clear, green and red.
- Available in 24VDC and 120VAC
- Five lens colors
- 3/4- inch pendant mount standard; other options available
- Optional dome guard
- Type 4X, IP66 enclosure
- UL and cUL Listed, CSA Certified, Marine Rated
|
|
* Bracket, ceiling, pendant or stanchion mount
* Diode polarized for use in electronically supervised circuits
* High impact glass dome, dome guard included
* 65 flashes per minute
* Factory sealed - no external seals required
* Quick connect - threads onto mounting module for easy installation
* Shock absorbing receptacle
* Easy to assemble & relamp
* Gaskets seal out dirt & moisture
* Epoxy powder coat for corrosion resistance
|
|
Federal Signal's Model 191X hazardous location steady burning light is rated for operation with any voltage from 24 to 250VAC or VDC and designed for hazardous locations where a visual signal is needed.
- 24- 250 VAC/VDC
- Six tempered glass dome colors
- Uses standard A- 19 incandescent lamp (40W- 100W)
- 3/4- inch pipe mount
- Dome Guard included
- Indoor/outdoor use
- Type 4X, IP66 enclosure
- UL and cUL Listed, CSA Certified
|
|
The LN870 Light Tower provides visual on/off indication of process conditions in safe and hazardous areas. Configurable up to five tiers high in a choice of five super-bright colours (red, amber, green, blue and white), they can be built exactly the way you want.
Each tier has a unique prism cut lens and internal reflective cone to improve visibility and requires one LED lamp for illumination which is current-limited to take a maximum of only 2OmA. Available for hazardous area use in both zones 1 and 2, up to two tiers can be driven from a single IIC interface.
There is a choice of pole or direct mounting, both incorporating a special vibration absorber. With the LED's low power consumption, low heat dissipation and long life expectancy, the LN870 is an ideal indicator for safe and hazardous areas alike.
|
|
|
|
