LED work light QLED3-110

for machine toolsfor machinesindustrial

Product Overview

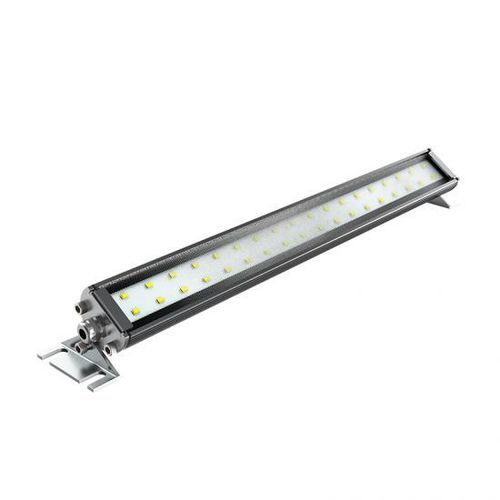

The QLED3-110 is a tri-proof LED machine work light designed for CNC machine tools and industrial equipment. It provides IP67 protection with oil-resistant and anti-corrosion features, tempered explosion-proof glass and an aluminum-alloy housing for effective heat dissipation. Nominal power is 9W (marketing references also list 10W); luminous flux ~1000 lm; voltage options 24V or 100-277V.

Key Features

• Tri-proof design: waterproof (IP67), dust resistant and oil proof suitable for machining environments.
• Tempered explosion-proof glass for increased safety in harsh conditions.
• 9W/10W LED module offering concentrated light output with low power consumption and low heat generation.
• Uniform light distribution with good color rendering (CRI > 80).
• Durable aluminum alloy housing for heat dissipation, impact and vibration resistance.
• Integrated waterproof connector and silicone sealing ring for reliable installation.
• Long LED lifetime: approximately 50,000 hours; operating temperature -25°C to +55°C.
• Easy installation and low maintenance for industrial use.

Technical Specifications

• Product Name: IP67 10W CNC machine tools LED tube work light
• Item No.: QLED3-110
• Series: QLED Series
• Brand: Otennlux
• Product origin: China
• Product weight: 2000 g
• Shipping port: Guangzhou / Shenzhen / Shanghai
• Lead Time: 5-7 days
• Material: Aluminum alloy + Tempered glass
• Wattage: 9W (marketing text also references 10W)
• Luminous flux: ~1000 lm
• Voltage: 24V / 100-277V
• IP Rating: IP67
• Life of LED: 50000 Hours
• Size: 45 x 296 mm
• Warranty: 3 years
• Color rendering index: >80
• Ambient working temperature: -25°C ~ +55°C
• Components: waterproof connector, aluminum PCB, silicone rubber sealing ring, reflector / lens
• Features: waterproof, oil proof, anti-corrosion, explosion-proof tempered glass, uniform light distribution, low heat, long life
• Certifications referenced: CE, CCC, RoHS (additional mentions: UL/ETL, Anti-Explosion in broader documentation)

Applications

• Machine tools (CNC lathes, milling machines)
• Laser equipment and automated production lines
• Packaging and inspection equipment
• Environments requiring oil- and coolant-resistant lighting

Certifications
CE, CCC, RoHS listed on product documentation; other certifications such as UL/ETL and Anti-Explosion are referenced in broader product materials and may be available on request.

Installation & Maintenance

• Install using compatible mounting brackets; provide access to the waterproof connector for wiring.
• Ensure correct voltage selection (24V or 100-277V) before connection.
• Disconnect power before maintenance; inspect seals and connectors periodically to maintain IP67 protection.
• Low maintenance design but periodic cleaning recommended in heavy contamination environments.

Additional Notes
Designed for harsh CNC and industrial environments, the QLED3-110 offers coolant- and oil-resistant properties and a long service life. Its construction balances heat dissipation and mechanical resistance, providing stable illumination for machine operation and inspection tasks.
