LED work light AL60-9

inspectionfor machinesfor machine tools

Product overview

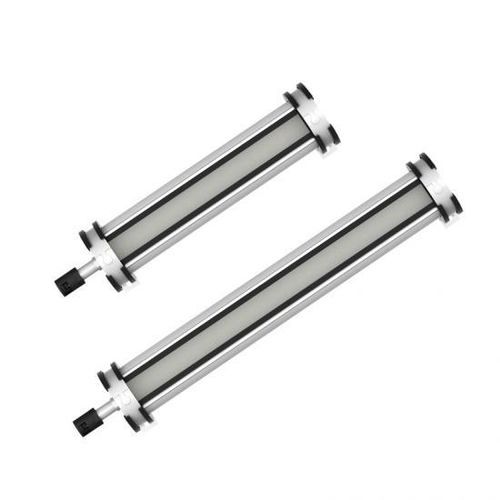

AL60 series IP67 explosion‑proof LED work light designed for CNC machines and automated equipment. Tubular aluminum housing with tempered/borosilicate glass lens for ingress protection and oil resistance. Uniform light distribution with high color rendering suitable for inspection and machining environments.

Details

• Certifications: CE, CCC, ROHS
• Ingress protection: IP67 (waterproof)
• Features: oil resistant, corrosion resistant, explosion‑proof enclosure
• Even light distribution and CRI > 80
• Durable aluminum housing with good thermal dissipation
• Tempered/borosilicate glass lens for mechanical and thermal resistance
• Operating temperature: -25°C to +55°C

Product specifications

• Product Name: IP67 9W LED CNC machine work light
• Item No.: AL60-9
• Brand: Otennlux
• Material: Aluminum alloy + Tempered glass (borosilicate)
• Wattage: 9 W
• Voltage: 24 V / 100-277 V
• IP Rate: IP67
• LED lifetime: 50,000 hours
• Size: 60 × 285 mm
• Warranty: 3 years
• Product origin: China
• Product weight: 2000
• Shipping port: Guangzhou / Shenzhen / Shanghai
• Lead time: 5-7 days

Technical specifications

• Series / Model reference: AL60
• Power: 9 W
• Voltage options: 24 V or 100-277 V
• Ingress protection: IP67
• Housing: Aluminum alloy
• Lens / cover: Tempered / borosilicate glass (explosion-proof)
• LED lifetime: 50,000 hours
• CRI: > 80
• Operating temperature: -25°C to +55°C
• Size (L×Ø): 60 × 285 mm
• Warranty: 3 years
• Typical applications: CNC machine tools, laser equipment, automated and packaging equipment, woodworking, engraving and milling, inspection and security inspection equipment
