Flip Mirror Holder KSH 90
The swing leaf bears a wobble plate with an adjustment range of ± 0.5° and an aperture of 2". Optics with a thickness > 12 mm (normally 2" mirrors) are fixed with a plastic screw.
Optical components (such as mirrors and beam splitting paltes) having a thickness of only 10 mm can be pressed aganst three stops with the enclosed two clamping shoes and thus fixed.
The swing angle is 45°, the repeatability < 100 µrad. The swing time of the motorized version is about 1 s.
- for use with SYS 90
- black anodized aluminium alloy
- mountable onto pin or slide
- manual operation or motorized
|
|
The Laser Mech Lens Mounting System solves the problem of lens removal for replacement and inspection. By using a simple cartridge mounted lens inserted into a side slot in a permanently positioned manifold block, the problems of the traditional threaded, axially inserted lenses are avoided. This innovative mounting method allows removal and replacement of the lens in seconds with no readjustment of the optical alignment and without the removal, replacement or disassembly of any other part of the optical system.
Each assembly consists of a lens mount manifold block with very fine, adjustable lens centering screws and a spring-loaded, lens holder assembly to hold the lens. The lens holder contains all the seals necessary to pressurize the space beneath the lens for use with the Gas Jet Manifold.
|
|
|

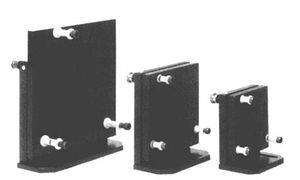

ROLYN Mirror Mounts are designed to give the very best combination of economy and performance. There is no glass-to-glass contact. Clear aperture obscuration caused by the plastic mirror holders is minimal. These three holders form an adjustable rigid orthogonal kinematic mount for the mirror which resists vibration and handling. Black anodizing minimizes reflections. Mirrors are not supplied with the mount.
|
|
As you scan through our various mounts we have a selection of Single Circular Filter Wheel Mounts, a Universal Stand Mount, Compensated Circular Filter Mounts & a 8 Position Filter Mount.
* Compensated Linear Filter Mounts
* Degree Scales
* Mounts
* Storage Boxes
|
|
| ... products without technical information |
| |
Flip Mirror Holder KSH 90
The swing leaf bears a wobble plate with an adjustment range of ± 0.5° and an aperture of 2". Optics with a thickness > 12 mm (normally 2" mirrors) are fixed with a plastic screw.
Optical components (such as mirrors and beam splitting paltes) having a thickness of only 10 mm can be pressed aganst three stops with the enclosed two clamping shoes and thus fixed.
The swing angle is 45°, the repeatability < 100 µrad. The swing time of the motorized version is about 1 s.
- for use with SYS 90
- black anodized aluminium alloy
- mountable onto pin or slide
- manual operation or motorized
|
|
The Laser Mech Lens Mounting System solves the problem of lens removal for replacement and inspection. By using a simple cartridge mounted lens inserted into a side slot in a permanently positioned manifold block, the problems of the traditional threaded, axially inserted lenses are avoided. This innovative mounting method allows removal and replacement of the lens in seconds with no readjustment of the optical alignment and without the removal, replacement or disassembly of any other part of the optical system.
Each assembly consists of a lens mount manifold block with very fine, adjustable lens centering screws and a spring-loaded, lens holder assembly to hold the lens. The lens holder contains all the seals necessary to pressurize the space beneath the lens for use with the Gas Jet Manifold.
|
|
|
ROLYN Mirror Mounts are designed to give the very best combination of economy and performance. There is no glass-to-glass contact. Clear aperture obscuration caused by the plastic mirror holders is minimal. These three holders form an adjustable rigid orthogonal kinematic mount for the mirror which resists vibration and handling. Black anodizing minimizes reflections. Mirrors are not supplied with the mount.
|
|
As you scan through our various mounts we have a selection of Single Circular Filter Wheel Mounts, a Universal Stand Mount, Compensated Circular Filter Mounts & a 8 Position Filter Mount.
* Compensated Linear Filter Mounts
* Degree Scales
* Mounts
* Storage Boxes
|
|
| ... products without technical information |
| |
|
|
|
|
Spectrum’s many years of experience in the design and manufacturing of filters has given us a unique perspective on EMI and its control. Our complete family of surface mount EMI filters includes mini surface mount, square surface mount, PSM power surface mount, and high frequency filters. With a simple structure and high withstanding voltage, our high performance EMI filters have a minimal PCB footprint, making them ideal for a wide range of PCB applications. Available in feed-thru and Pi circuit configurations, our high temperature constructed EMI filters are non-polar and surface mountable with excellent performance characteristics. Applications include automotive electronics, digital AV equipment, high current buss lines, peripherals, telecommunications, and switching power supplies.
• Variety of surface mount EMI filters, including: Three Terminal Chips, SA Series Arrays, MSM Mini-Surface Mount, SSM Square Surface Mount and PSM Power Surface Mount
• Tape and reel or bulk form packaging available
• Pick-n-Place equipment installation
• Available lead-free/RoHS compliant
• Rated voltage between 50 and 200 VDC
• Temperature range between -55°C and +125°C
• Capacitance ranging from 47 pF to .01μF
|
|
|
|
|
|
Spectrum’s many years of experience in the design and manufacturing of filters has given us a unique perspective on EMI and its control. Our complete family of surface mount EMI filters includes mini surface mount, square surface mount, PSM power surface mount, and high frequency filters. With a simple structure and high withstanding voltage, our high performance EMI filters have a minimal PCB footprint, making them ideal for a wide range of PCB applications. Available in feed-thru and Pi circuit configurations, our high temperature constructed EMI filters are non-polar and surface mountable with excellent performance characteristics. Applications include automotive electronics, digital AV equipment, high current buss lines, peripherals, telecommunications, and switching power supplies.
• Variety of surface mount EMI filters, including: Three Terminal Chips, SA Series Arrays, MSM Mini-Surface Mount, SSM Square Surface Mount and PSM Power Surface Mount
• Tape and reel or bulk form packaging available
• Pick-n-Place equipment installation
• Available lead-free/RoHS compliant
• Rated voltage between 50 and 200 VDC
• Temperature range between -55°C and +125°C
• Capacitance ranging from 47 pF to .01μF
|
|
|
|
