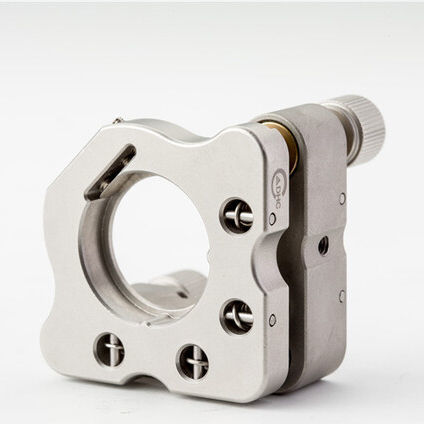

Stainless steel filter/mirror/lens holder GCM-080213M

optical

This series mounts is designed to clamp optics of Ø10mm or Ø12.7mm. Equipped with three M4×0.2 fine-thread drives, it enables adjustment of pitch/yaw angles and Z-axis translation, with an angular adjustment range of ±4° and an adjustment precision of 0.64° per rotation. The end of each fine-thread drive features a hexagon socket countersink, which can be adjusted using a #2 hex key. Fabricated from 304 Stainless Steel Mounts Ø10 or Ø12.7 mm Optics at Least 3.00 mm Thick Angular Range: ±4° Resolution: 0.64° per Revolution M4X0.2 Thread Adjusters Provide Fine Adjustment
