Optical filter/mirror/lens holder GCM-08110

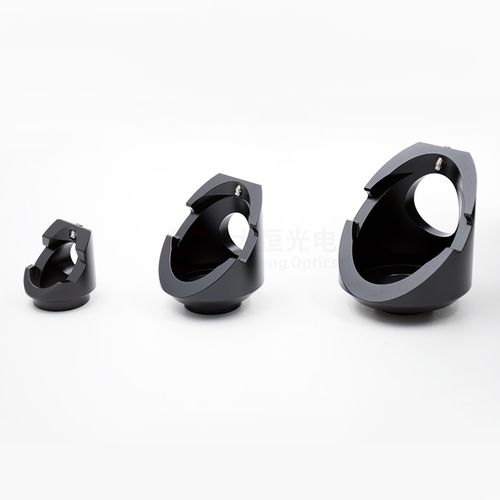

These 45° mounts are ideal for holding Ø25.4mm, Ø40mm and Ø50.8mm optics at a 45° angle within an optical setup. Two through holes, located at a 90° angle with respect to each other, allow this mount to be used in applications where beamsplitters are needed. A M4 nylon-tipped setscrew located at the top of the mount, secures the optic in the bore. Optics must be at least 2.0mm thick to be used in this mount. These mounts feature a boss with a diameter of Φ25.4mm. Users need to mount these holders on other optical-mechanical components with a Φ25.4mm interface for combined use. Fixed 45° Mount for Optics at Least 2.0 mm Thick Locking Optics via M4 Nylon-tipped Setscrew
